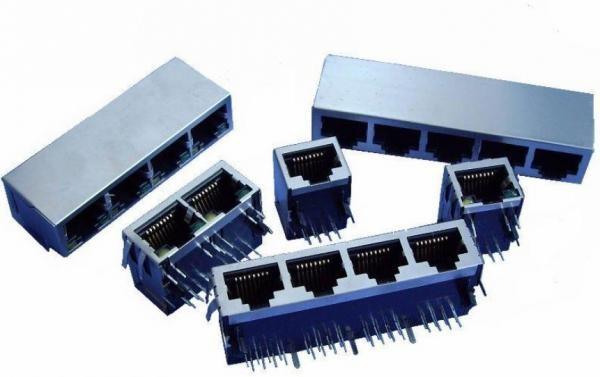

Multi Port Rj45 Connector Jack / Rj45 Female Socket With Shield 8P8C Side Entry
Multi Port Rj45 Connector Jack / Rj45 Female Socket With Shield 8P8C Side Entry
Specifications
Brand Name :
XINGGE
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1000 Piece/Pieces single port rj45 connector
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000 Piece/Pieces per Day
Delivery Time :
7-15days
Packaging Details :
100/pcs plastic tray at first, then put into box
Type :
shield rj45 network connector
Application :
Power
Gender :
Female
Contact Material :
Phosphor Bronze
Housing Material :
PBT / PA46
Angle :
90 degree
Description

Double rj45 female socket with shield, RJ45 Network Connector with PBT / PA46 Housing for Power

Detailed description:
double rj45 female socket with shield
8P8C side entry good quality&service oem&odm
UL&Rohs

shield rj45 network connector

Electrical:
1.Current rating: 1.5Amps
2.Volting rating: 125vac
3.Insulation Resistance: 500 MΩmin
4.Contact Resistance: 30Mumax
5.Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min

Mechanical Specifications:
1.Insertion Force: 2.2KG.F max
2.Retention Strength: 7.7KG.F min between jack and plug
3.Durability: 600 mating cycles min
Material :
1.Housing: ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0)
2.Contact Wire: Diameter 0.45mm phosphor bronze gold plating over nickel
3.Gold Plating: 3u inch,6u inch,15u inch,30u inch,50u inch
Environmental:
Working temperature: -40degree centigrade~ +70 degree centigrad

Reasons For Your Perfect Choice :

1. Manufacturer over years' experience

2. OEM and ODM is available

3. Materials are ROHS enverment Certification ,100% non-toxic,harmless,eco-friendly

4. If want to import some products to test the market,we can lower the MOQ

5. MOQ=1000pcs

6. Through the UL & ROHS the authentication
