Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Specifications
Model NO. :
AEH-S3
Object :
Plastic . Metal . Animal Corpse .Madecial Waste.
Drive :
Electric
Principle :
Fixed Culling
Cutter Material :
Hard Alloy
Compressive Strength (For Crushing) :
>300MPA
Tongs′ Features :
Dedicated Tongs
Capacity :
1-60 Ton /H
Work Surface Size :
820*1800mm
Blade Outer Diameter :
100-800mm
Blade Thickness :
20-100mm
Blade Tip Height :
20-100mm
Blade Material :
9crsi
Number of Fixed Knives :
12-60 Pieces
Fixed Knife Thickness :
20-100mm
Fixed Knife Material :
Alloy Steel
Shell Material :
Q235B
Feed Bin Material :
Q235B
Installed Power :
15-300kw
Motor Quatity :
1-2 Pieces
Single Shaft Maximum Torque :
50-300kn.M
Rotating Speed (Rpm) :
21/26
Transport Package :
Wooded Box and Bulk
Specification :
Capacity 1ton-50ton per hour
Trademark :
AOERHENG
Origin :
China
Production Capacity :
50000 Set /Year
Description
Dead animal carcass shredder used in fertilizer formenation



1.Brief introduction :
Aoerheng double shaft shredder adopts automatic control system. The machine with Start, stop, reverse and overload automatic inversion of control function. With features of low speed, large torque, low noise, etc. Bearing the split form, disassembling tool change easy and convenient. Suitable for large, thick and fragile materials.
Dead Animal Carcass Shredder Used in Fertilizer Formenation

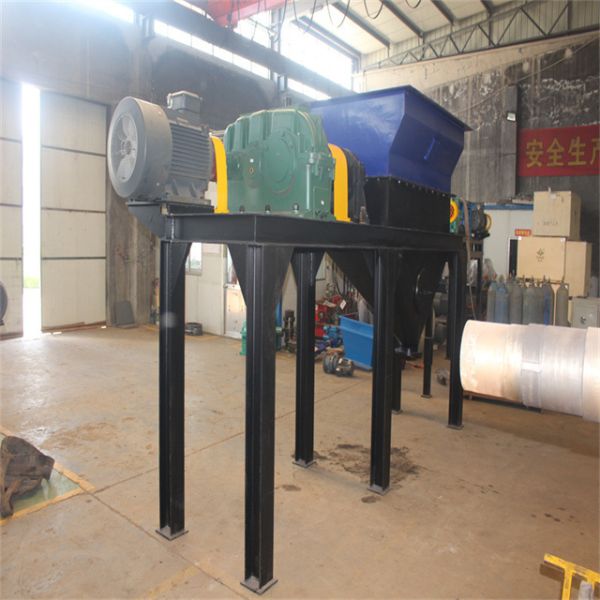

2.Shredder picture :
Dead Animal Carcass Shredder Used in Fertilizer FormenationDead Animal Carcass Shredder Used in Fertilizer FormenationDead Animal Carcass Shredder Used in Fertilizer Formenation
3.Shredder application :
1 eat hutch waste, living garbage, dead animals, RDF derivatives, medical waste, straw, garden rubbish
2 plastic head, mill twisted rope.
3 scrap metal, motor shell, aluminum alloy, scrap aluminum parts, motor shell, lead, and the steel plate thickness under 5 mm
4 old tires, car tires, truck tires
5 used templates: wooden pallets, plastic pallet, forklift plate
6 tubes, large pipes, pipe fittings, PE pipes
7 household appliances, TV sets, washing machine, refrigerator shell
8
all kinds of hollow container: plastic cans, plastic buckets, iron drum, packing boxes, packaging barrels

4.Basic parameter:
1 Capacity(t/h)
 20
2 Work surface size(mm)
 820×1800
3 Number of blades(No.)
 36
4 Blade outer diameter(mm)
 500
5 Blade thickness(mm)
 50
6 Blade tip height(mm)
 40
7 Blade material
 9CrSi
8 Number of fixed knives
 36
9 Fixed knife thickness(mm)
 50
10 Fixed knife material
 Aolly steel
11 Shell material
 Q235B
12 Feed bin material
Q235B
13 Installed power
14 Single shaft maximum torque (KN.m)
 156.2
15 Rotating speed (rpm)
 21/26
16 Line speed:(m/s)
 0.4396
17 Spindle material
 40Cr tempering
18 Bearing
 Hawaluo
19 Bearing housing
 ZG45

5.Other shredder parameter :
Serial number model Tear cavity size
long×wide×high
(mm)		 Blade diameter
(mm)		 blade thickness
(mm)		 spindle speed
(rpm)		 motor power
(kw)		 Tearing particle size
(mm)		 yield
(t/h)
1 2S0206 600×410×230 Φ200 15-30 12-25 11*2 3-30 0.3-0.6
2 2S0208 800×410×220 Φ200 15-30 12-25 15*2 3-30 0.5-1.0
3 2S0308 800×620×330 Φ300 15-35 10-22 18.5*2 3-30 0.8-1.6
4 2S0310 1000×620×330 Φ300 20-40 10-22 22*2 3-30 1.2-2.0
5 2S0312 1200×620×330 Φ300 20-40 9-16 30*2 3-30 1.8-2.8
6 2S0410 1000×830×440 Φ400 20-40 9-16 37*2 3-30 2.0-3.6
7 2S0412 1200×830×440 Φ400 20-45 9-15 45*2 3-30 3.0-4.5
6.Shredder detailed product :
Dead Animal Carcass Shredder Used in Fertilizer Formenation

7.double shaft shredder Structure:
1 Main body of the shredder: the main body of the equipment adopts high-quality steel plate welding to eliminate stress treatment/integral machining, so as to ensure the stability of the equipment under long and heavy loads;
2 Bearing and seal: the bearing seat adopts the patented splicing and disassembly mode, which can quickly remove the moving knife, fixed knife, bearing and other parts, and is easy to maintain and replace the cutter. The special sealing structure can effectively prevent the contact of broken things and grease, and the treatment of liquid materials can also protect the bearing and gear.
3 Moving blade and fixed blade: the Moving blade material is made of special Germany imported special alloy tool steel, which is made of precision machining, multiple heat treatment and cryogenic heat treatment technology. The overall toughness and hardness can be reused to ensure cutting performance and service life. The fixed blade is installed with patented hook type, which optimizes the tool replacement function and makes the tool maintenance and replacement more efficient.
4
Cutter shaft: the high-strength and heavy-duty steel is used for processing and refining, and it is more reasonable to cooperate with the cutter to provide strong power for cutting.

8.performance features of double shaft shredder:
1 The machine can shred various bulk materials, basket materials, pipe, plate. sheet, tire, big roll film;
2 Design and process unique rotary knives in terms of thickness, shape, order and other aspects. Design the cutter structure according to the characteristics of different materials;
3 Extra thick plate precision processing of the combined structure frame, large Angle hexagonal strong rotation axis, large diameter solid input hopper, so can be put into large materials;
4 The equipment operates at low speed, low noise and little dust.

9.quality commitment:
We assure you that the contract goods we supply are new and unused. We guarantee the safe and reliable operation of the contract goods under correct installation and normal operation. If because the buyer is not provided in accordance with our technical data, drawings, manuals for installation, operation or maintenance, and technical reasons beyond our contract goods damage, the buyer is responsible for the repair, replacement, we have an obligation to provide the required replacement parts, as soon as possible for the buyer may require urgent parts, we arrange the fastest way to transport, the expenses shall be borne by the buyer.

10. Our certification :
Dead Animal Carcass Shredder Used in Fertilizer Formenation

11.Our customers :
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation

12.Company overall :
The company covers an area of 20000 square meters.sets scientific research and development, engineering design, installation, debugging, production services for the integration of domestic comprehensive backbone enterprises, products with free-pollution disposal equipment, garbage disposal equipment, high concentration wastewater treatment equipment, organic fertilizer production equipment, air treatment equipment, sludge treatment equipment, automobile processing equipment such as environmental protection equipment. And can design according to customer demand, customization of all kinds of efficient and practical equipment and production line. in strict accordance with ISO9001 standards, organization, design, production, sales and management.
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
Dead Animal Carcass Shredder Used in Fertilizer Formenation
