Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Specifications
Model NO. :
ZT-MWT-3000-02
Certification :
GMA, QS, FDA, ISO, CE
Automation :
Automatic
Screw :
Multi-Screw
Treatment :
Chemical Treatment
Capacity :
3T/T
Total Weight :
11000kg
Total Power :
97kw
Main Dimension L*W*H :
7000*2900*2650
Matched Steam/Cooling System Water Tank :
0.8m3/304 Material
Discharge Screw Power :
3kw
Reduction Gears :
Kab87 Hard Gear Reducer
Blade :
8mm Stainless Steel
Sterilizing Bin :
530-5000,Thickness 8mm,304 Material
Crushing System Reduction Gears :
Ka-127 Hard Gear Reducer
Crushing System Blade :
345*30 D550 Imported Material
Main Shaft :
Steel Standard Heat Treatment Process
Crushing Chamber Size :
647mm*665mm
Spindle Power :
2.2kw
Generator :
1.5kw*8 Set
Transport Package :
Wooden Box
Specification :
50kg-1000kg horizontal incinerator
Trademark :
ZHITE
Origin :
China
HS Code :
84192000
Production Capacity :
1000 Set /Year
Package Size :
2200.00cm * 1680.00cm * 1840.00cm
Package Gross Weight :
11000.000kg
Lead Time :
25 days (1 - 1 Sets) To be negotiated ( > 1 Sets)
Description
Small Medical Waste Microwave Equipment Treatment

Product Description

Incinerator are designed to burn many types of medical waste. livestock corpse . life waste and industrial barbage including type IV pathological waste and infectious and contaminated "Red bag" . nozzle, plastic items .plastic caps, cellulose acetate membrane electrophoresis. liquid, toilet boxes. bacteria culture. drug sensitivity reaction plate. syphilis test board. other experimental specimens. operation resection stump. organ and so on


Small Medical Waste Microwave Equipment Treatment

Medical waste microwave disinfection equipment is a kind of medical waste disinfection equipment using the dual function of microwave and steam, the equipment first make water prehumidification to medical waste , use microwave thermal effect to heat prehumidified water to generate steam and medical waste containing polar molecules at the same time, and then by the sensitivity of bacteria to temperature sterilization, microwave also has non-thermal effect.Non-thermal effect refers to other microbe killing effects except thermal effect, which is the unique effect of microwave sterilization. The heating process of the equipment is also the process of disinfection. The disinfection room is kept for 45 minutes after reaching 95 degrees or above to complete disinfection.
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment

Mobile Medical Waste Microwave Treatment Equipment system is composed of feeding system, crushing system, microwave disinfection system, discharge system, steam supply system, waste gas collection system, electrical distribution system, etc.

  1. With overall design and production,good mobility, small footprint, low noise.
  2. High temperature microwave treatment sterilization penetration fast,good sterilization effect .
  3. Integrated design, compact equipment, high degree of automation, can be used as regional emergency standby facilities
  4. Applicable to hospitals, medical testing centers, airport testing stations, customs ports,It can realize the timely treatment of medical waste in isolated areas during major periods.
  5. Strong mobility, can quickly reach the epidemic area,hospital and shelter quarantine site, direct on-site disposal, reduce transport risks.
  6. No waste water generation, with purification device, clean discharge, no pollution.


Product Parameters

No. System unit Item Technical parameters
Model ZT-MWT-10 ZT-MWT-20 ZT-MWT-30 ZT-MWT-50
1 Stock bin Volume 100L 200L 300L 500L
Material Stainless steel + alloy steel Stainless steel + alloy steel Stainless steel + alloy steel Stainless steel + alloy steel
2 Crushing system Power 5.5kw 5.5kw 7.5kw 11kw
3 Sterilization chamber Power 1.5kw 3.3kw 4.5kw 4.5kw
4 Main body dimension 2000*1500*1800 2100*1500*1800 2200*1680*1840 2300*1800*1840
5 Supporting facility Steam generator, water chiller, water softener, electric control box, exhaust equipment (optional)
6 Total power 12kw 14.8kw 18kw 21.5kw
7 Capacity(kg/h) 10 20 30 50

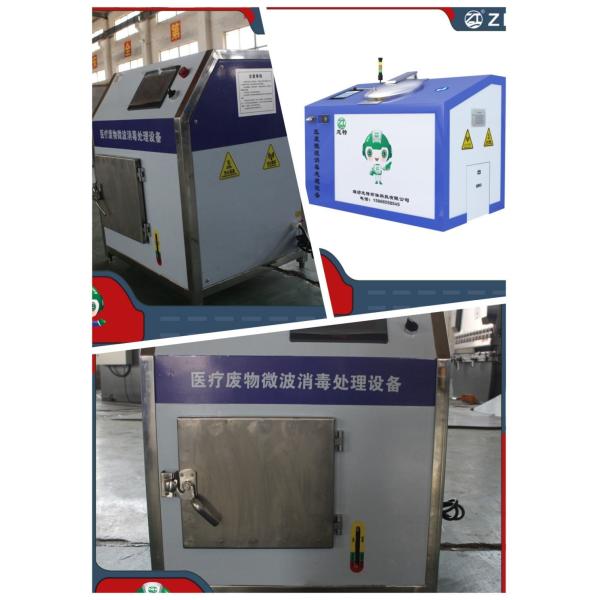

Detailed Photos


1.Microwave disinfection technology uses microwave disinfection time short,fast speed,strong penetration,uniform temperature inside and outside,energy saving,good disinfection effect,
2.In the microwave field,the cell structure is destroyed,and the balance of internal and external substances is destroyed,resulting in cell death.
3.The combination of microwave and water vapor makes the disinfection effect more effective.

4.Microwave disinfection technology does not produce dioxins and odorous gases,no wastewater discharge.
Small Medical Waste Microwave Equipment Treatment

Packaging & Shipping

Small Medical Waste Microwave Equipment Treatment

Small Medical Waste Microwave Equipment Treatment

Customer visit

Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
Small Medical Waste Microwave Equipment Treatment
