One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
Specifications
Model NO. :
F-22
Certification :
GMA, QS, FDA, ISO, CE
Automation :
Automatic
Screw :
Multi-Screw
Treatment :
Biological Treatment
Equipment Volume :
2.5-35 Volume
Stiring Way :
Blade
Heating Power :
15-60kw
Air Conpressor Power :
3-7.5kw
Transport Package :
Wooded Box and Bulk
Specification :
Capacity 1m3-20 m3
Trademark :
Aoerheng
Origin :
China
Production Capacity :
50000 Set /Year
Description
One of death animal carcass fertilizer fermentation equipment
1. Product brief :

AOERHENG environmental protection research and development of high temperature biological fermentation machine can be organic waste harmless rapid fermentation treatment.4-24 hours can complete harmless treatment.save manpower and site. Biggest characteristic is closed innocuity treatment.high temperature sterilization insecticidal.no secondary pollution.at the same time.temperature.humidity and ph control in the best condition .and into the fresh air. make the surrounding environment will not smell. by anaerobic role of organic waste by the high speed processing. the fermentation system become clean. natural biological organic fertilizer.
One of Death Animal Carcass Fertilizer Fermentation Equipment

2. Structral conponents and detailed information introduce :

The rapid and harmless biological fermentation system is composed of fermentation host equipment. liquid culture spray system.air supply system. exhaust and air purification system. feed/discharge system (optional. according to the intention of the user contract) and control system
1 Transmission part: the movement of the motor is adjusted to a reasonable speed through the hard tooth surface gear reducer, and then transmitted to the main shaft to make the stirring knife roll rotate.
2 Mixing part: the barrel body has a specially designed mixing Angle of the knife roller, in the rotation of multi-angle, multi-direction to promote the material, coupled with a wide range of material in the circumferential direction, so that the material quickly to achieve uniform mixing.
3 Barrel part: The barrel is u-shaped structure with heating jacket.
4 Barrel cover part: the barrel cover is provided with a plurality of holes, respectively for feeding, air intake, air intake, maintenance, exhaust, air and other purposes
5 Discharge valve: the discharge valve is installed at the bottom of the barrel to control the material flow and discharge. The discharge valve can be separated by motor, motor, electric and other forms.
6 Liquid culture spray system: in order to meet the technological requirements, in the process of material processing biological fermentation need to spray bacteria, spray liquid parts fixed on the end cover, by the feed pump will be supplied to the spray gun.
7 Air purifier (optional by users) : in order to meet the requirements of no three wastes and zero emissions, ammonia, hydrogen sulfide and water vapor generated in the early fermentation stage are connected to a closed air duct by an induced draft fan and treated by an air purifier to achieve the purpose of air purification and waste water recovery, so as to meet the requirements of environmental protection.
3. Basic parameter :
No. Specification AOERHEN-1 AOERHEN-3 AOERHENG-5 AOERHENG-10 AOERHENG-15 AOERHENG-20
1 Equipment volume(m3) 2.5 5 10 15 25 35
2 efficiency volume(m3) 1 3 5 10 15 20
3 Stiring way Blade Blade Blade Blade Blade Blade
4 Heating power (kw) 15 20 30 40 50 60
5 Air cleaning system purifier PL500 PL600 PL800 PL1200 PL1500
Induced draft fan 2.2 4
Circulating pump 2.2 4
6 Liquid culture spray system Bacteria culture tank Stainless steel 400*500 3kw
Pump 0.12
Discharge pump 0.25
7 Transmossion motor power 4 5.5 7.5 15 18.5 22
8 Air compressor power 3 4 4 5.5 7.5 7.5

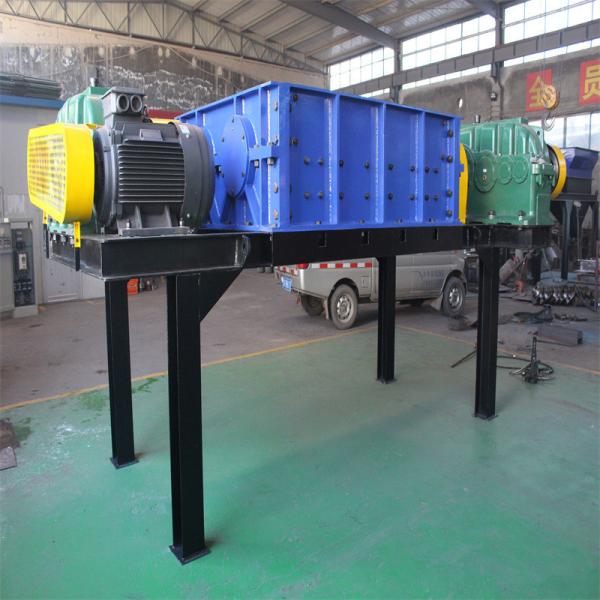

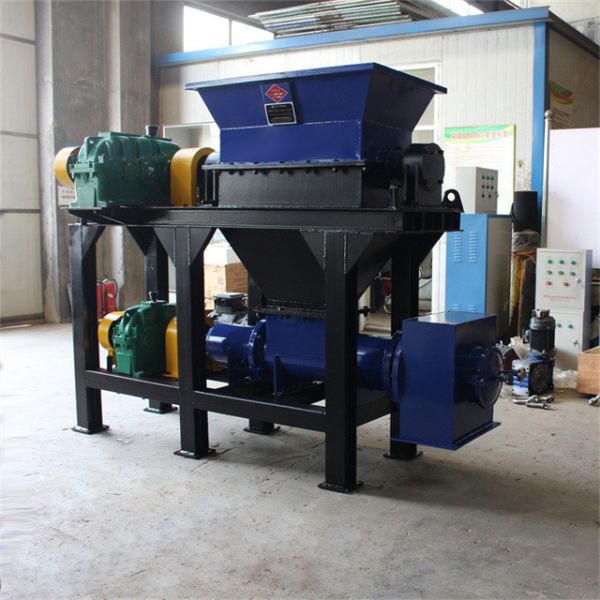

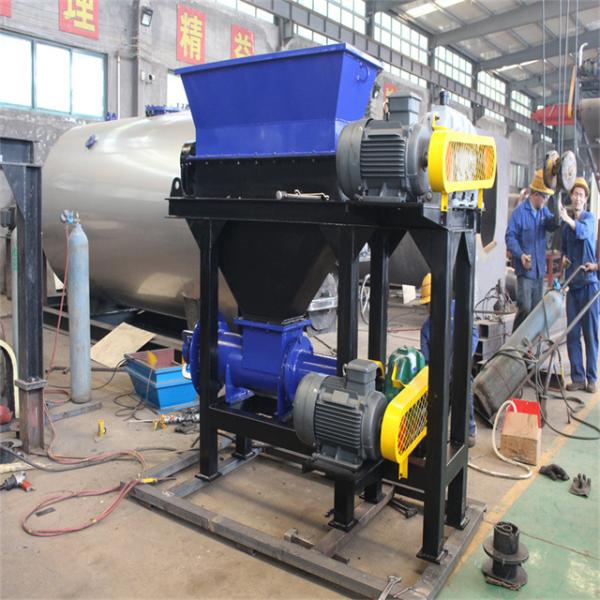

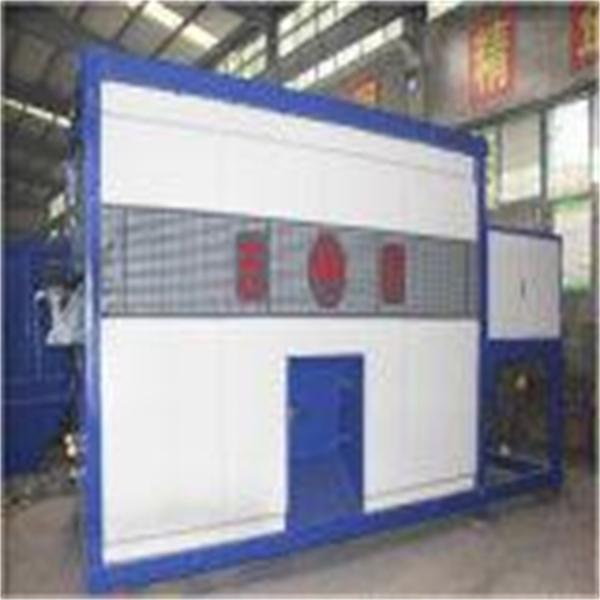

4.Equipment picture :
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
One of Death Animal Carcass Fertilizer Fermentation Equipment
5.Our service :

Before sale:

1. Select the device model.

2. Design and manufacture products according to customers' special requirements.

3.The factory sent engineers and technicians to inspect the site free of charge.

Sale:

1. Product acceptance.

2. Assist customers in formulating construction plans.

After sale:

1. Guide the installation and debugging of equipment for free.

2. Trained technical personnel for customers.

3. Train operators on site.
6. Our certification :
One of Death Animal Carcass Fertilizer Fermentation Equipment7.Our customers:
One of Death Animal Carcass Fertilizer Fermentation Equipment
