Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Specifications
Model NO. :
AEHMKSP-7
Max.Capacity :
>400 L/min
Driving Type :
Diesel Engine or Electric
Impeller Number :
Multistage Pump
Working Pressure :
High Pressure Pump
Influent Type of Impeller :
Single Suction Pump
Position of Pump Shaft :
Horizontal Pump
Pump Casing Combined :
Horizontal Split Pumps
Mounting Height :
Suction Centrifugal
Impeller :
Open
Usage :
Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump, Dredging Pump
Features :
Anti-Wear, Anti-Abrasive
Customized Support :
OEM
Voltage :
380V
Maximum Solid :
178mm
Color :
Multi -Color
Horsepower :
10-200
Application :
Mining Industry, Sand Dredging, Sludge, Mining
Certification :
CE and ISO
Seal Type :
Gland Packing or Expeller Seal
Transport Package :
Wooded Box and Bulk
Specification :
Maximum water flow 121000 cubic meter
Trademark :
Aoerheng
Origin :
China
HS Code :
890510000
Production Capacity :
50000 Set /Year
Description
Customized river sand dredging pump for wheel bucket dredger
1. Pump brife :

WN dredging pump is a kinds of new type dredging mud pump .it is made by the all kinds of advance asistance software for dredging of the river lake and hydraulic reclamation so on .

2.Pictures:

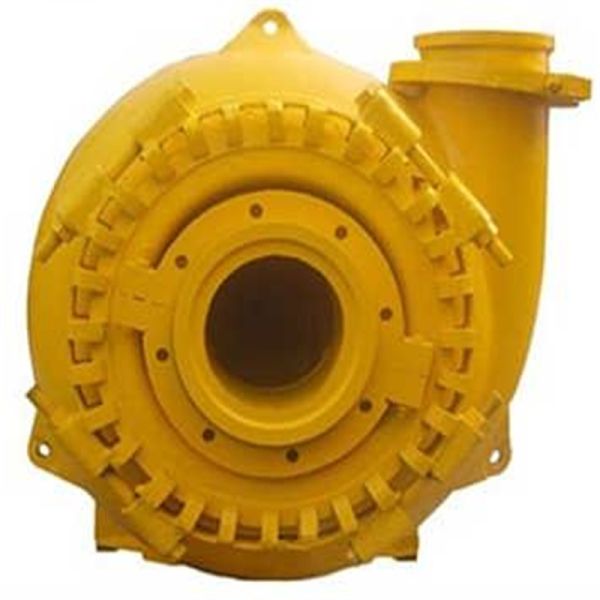

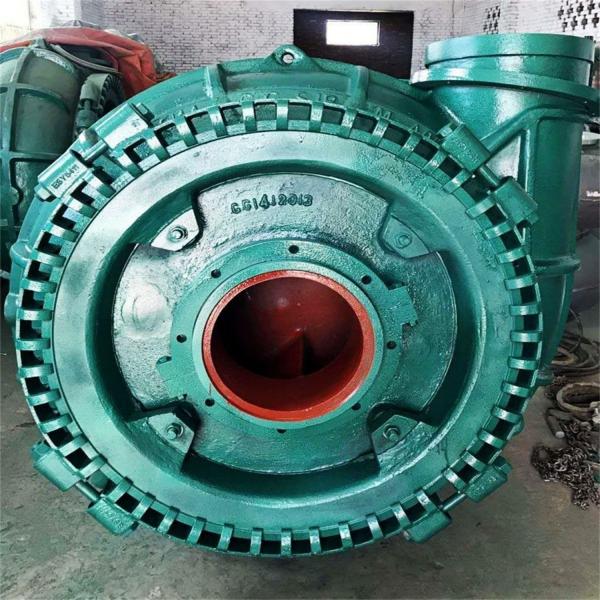

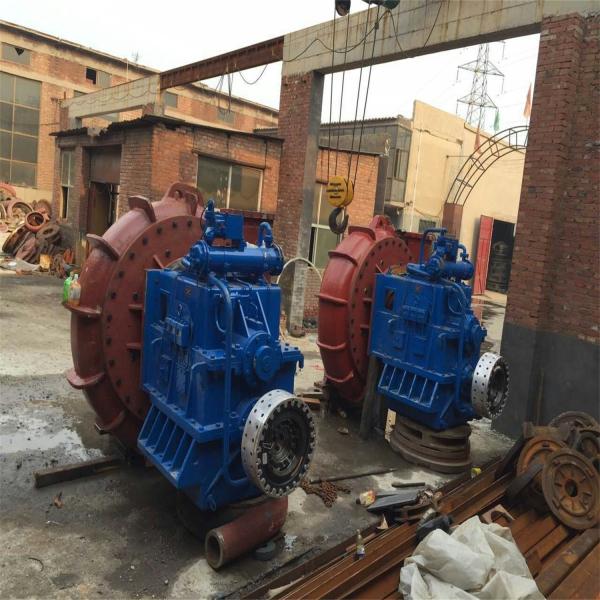

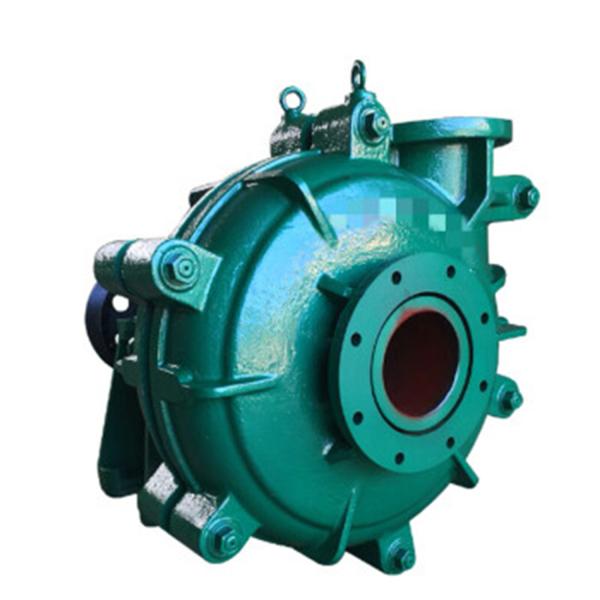

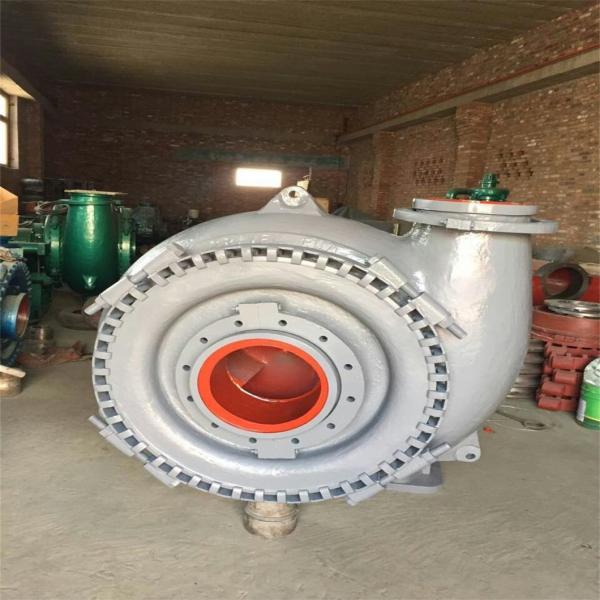

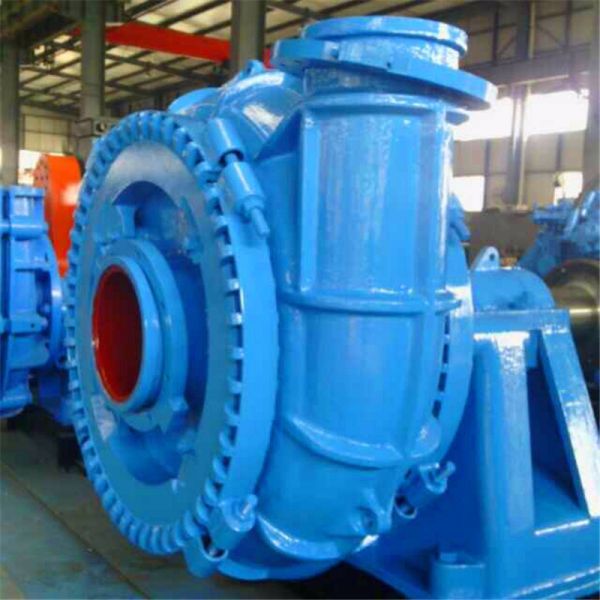

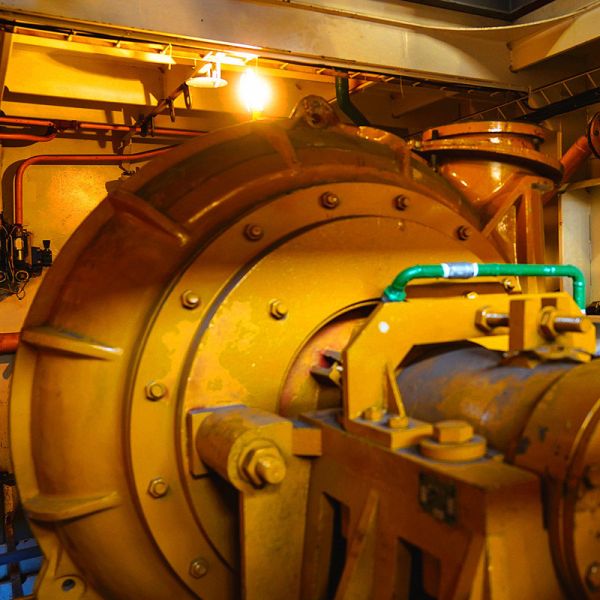

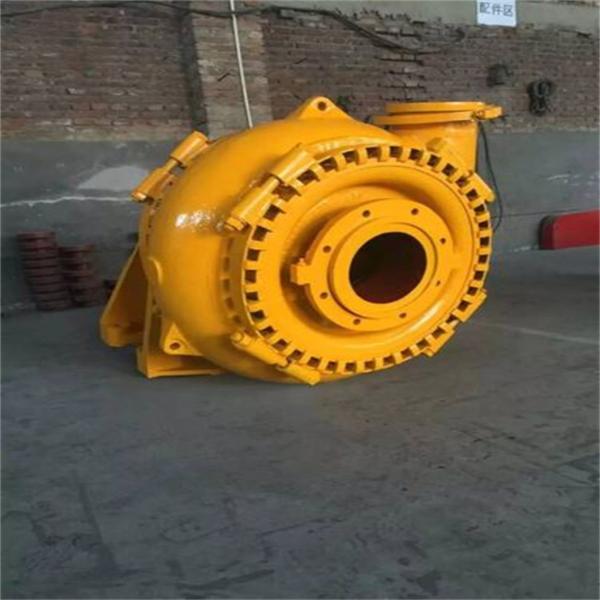

Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger

3. Feature :
1 ★The overall structure is good for ship
2 ★ Dredging performance is excellent
3 ★ Good wear resistance, long life of overcurrent parts
4 ★ Small hydraulic loss, high efficiency, low power consumption
5 ★ Reliable shaft seal, no leakage
6
★Electric turning mechanism, save time and effort

4.Basic parameter :
Type water flow (m3/h) Head (m) Speed (r/min) Inlet diameter(mm) outlet diameter(mm) Max.diameter of flowd parti
200wn 750-1000 40-65 700-850 250 200 180
250wn 1100-1300 40-65 500-650 350 250 144
300wn 1800-2200 40-65 400-550 450 300 241
350wn 2600-3000 40-65 400-550 450 350 245
400wn 2800-3200 20-40 400-550 450 400 250
450wn 3200-3850 40-67 350-500 600 450 254
500wn 4500-5500 40-65 350-450 650 500 250
600wn 7000 62 470 700 600 220
700wn 10000 85 380 760 700 280
800wn 12500 59 349 800 750 300
850wn 14400 70 330 900 850 320
900wn 16000. 30 175 1000 900 340
1000wn 16000-25000
 23-76 181-290 1200 1000 350

5. Pump application :
Customized River Sand Dredging Pump for Wheel Bucket Dredger

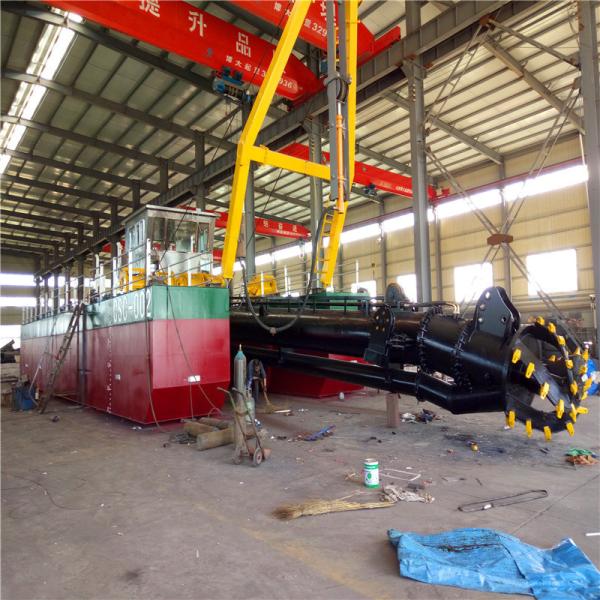

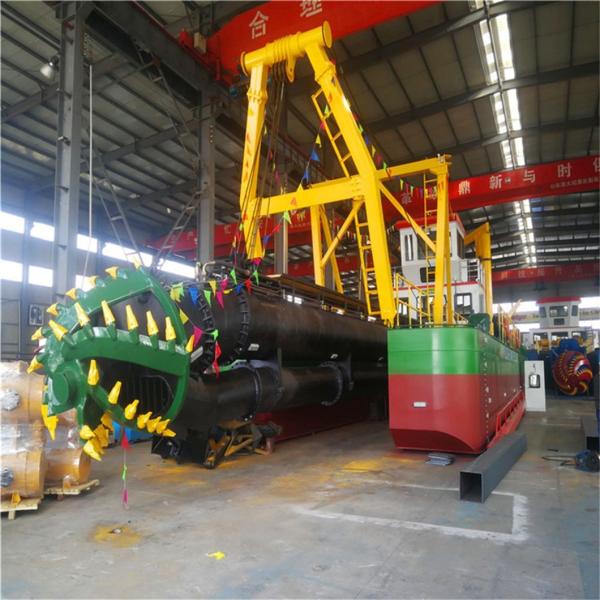

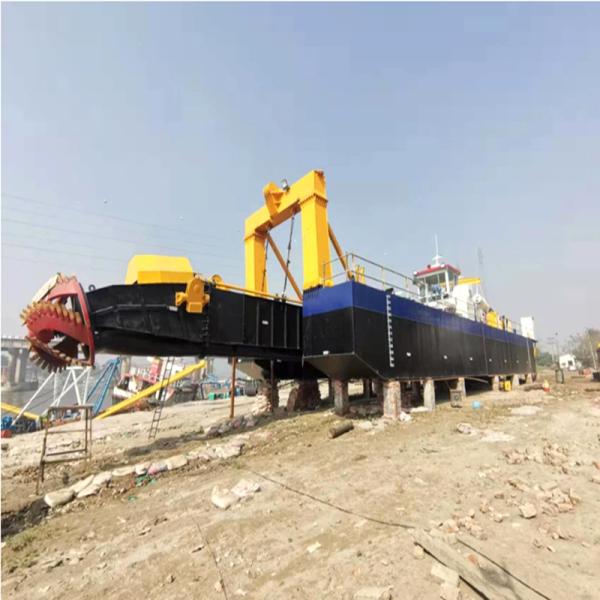

Cutter suction dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Trailing hopper dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Wheel bucekt dredger
Customized River Sand Dredging Pump for Wheel Bucket Dredger
Jet suction dredger

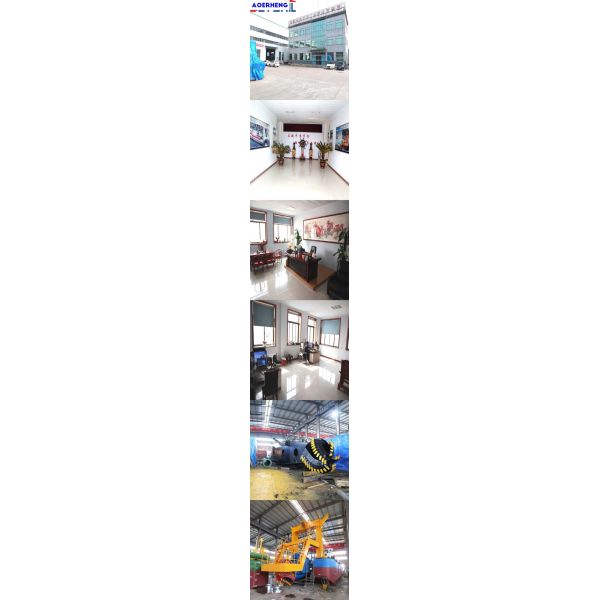

6.Factory show :
Customized River Sand Dredging Pump for Wheel Bucket Dredger
