Hydraulic /Diesel Engine /Electric Power / 18inch /20 Inch /26 Inch Cutter Suction Dredger for River Sand /Clay /Silt / Mud

Specifications

Model NO. :

dredger -1

Slot Type :

CTN

Customized :

Customized

Condition :

New

Warranty :

2 Year

After-sales Service :

Lifelong

Application :

River . Sea. Lake .Inland Waterway

Engine Brand :

Cumins . Carter. Weichai

Engine Power :

227-2200kw

Gravel Sand Brand :

Shijiazhuang

Hydraulic Brand :

Rexroth . Parker.

PLC Brand :

Siemens PLC

Total Length :

16-50m

Total Width :

5.5-11m

Cutter Head Diameter :

800-2400m3

Cutter Head Power :

38-450kw

Optional :

Water Flow Meter . Concentration Meter

Spud Carrier Stroke :

2-8mm

Product Brand :

Aoerheng

Discharge Distance :

500-5000m

Dredging Depth :

5-20m

Transport Package :

in Bulk or Canvas

Specification :

6 inch -32 inch

Trademark :

AOERHENG

Origin :

China

HS Code :

8905100000

Production Capacity :

50000 Set /Year

Package Size :

3900.00cm * 860.00cm * 220.00cm

Package Gross Weight :

360000.000kg

Description

Hydraulic /diesel engine /electric power / 18inch /20 inch /26 inch cutter suction dredger for river sand /clay /silt / mud

1. Description :

Cutter suction dredger is the standard size cutter suction dredger . it is the one of the most hot size dredger . cutter suction dredger is widely used inland water way dredging such as : river. lake . reservoir and lagoon so on . offshore dredging : port construction . channel dredging so on . whole cutter suction dredger is controled by the hydraulic system . diesel engine and electricl power are available . high quality sand pump from Shijiazhuang industrial pump factory . PLC and hydraulic brand from foreign. plentyful optional : underwater pump . anchor boom . booster station . spud carrier so on .

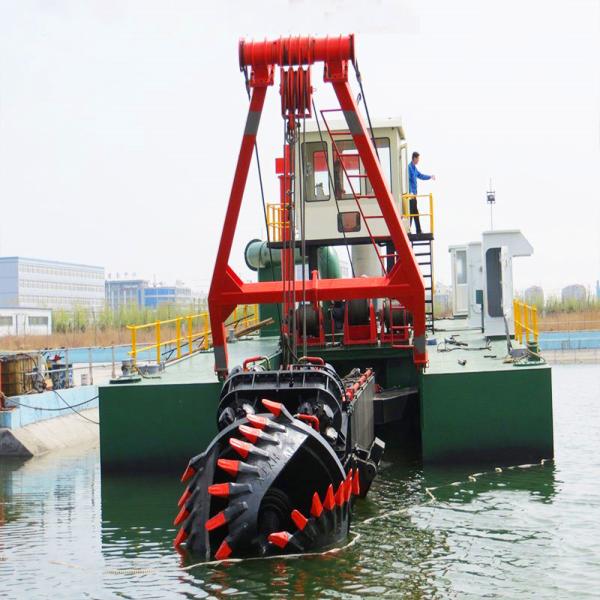

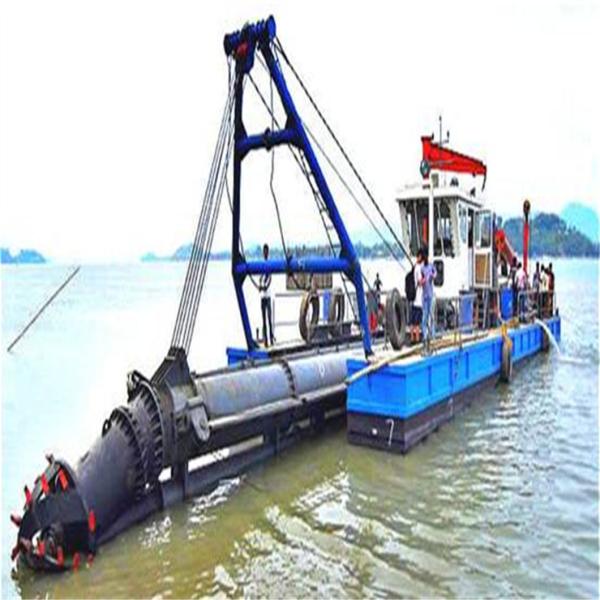

2.Images :

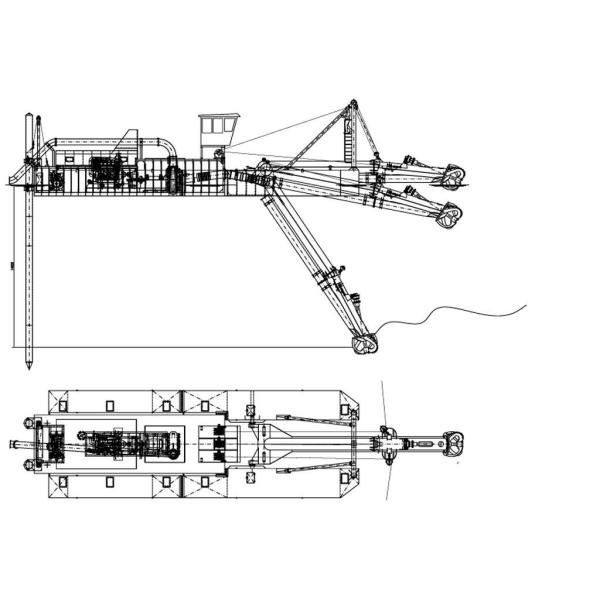

3. production processing and drawing :

Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together). all main parts such as sand pump and hydraulic pump power from the Cumins diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch . .hydraulic spud carrier and cutter head so on .

4.Basic size :

NO./Item	Discharge distance	Dredging depth	Water flow	Solid capacity	Mani/Auxiliary engine	Suction /discharge pipe diameter
6 inch	500m	6m	800m3	160m3	292kw	200mm
8 inch	1000m	6m	800m3	160m3	230/100kw	250mm
10 inch	1000m	8m	1500m3	300m3	456/122kw	350mm
12 inch	1000m	12m	2000m3	400m3	557/200kw	400mm
18 inch	1500m	15m	3500m3	700m3	1137/260	500mm
20 inch	1500m	15m	5000m3	1000m3	1335/405kw	600mm
24 inch	1800m	18m	7000m3	1400m3	1620/700kw	700mm
28 inch	2000m	20m	9000m3	1800m3	1950/700kw	800mm

5. other equipped device in the cutter suction dredger :

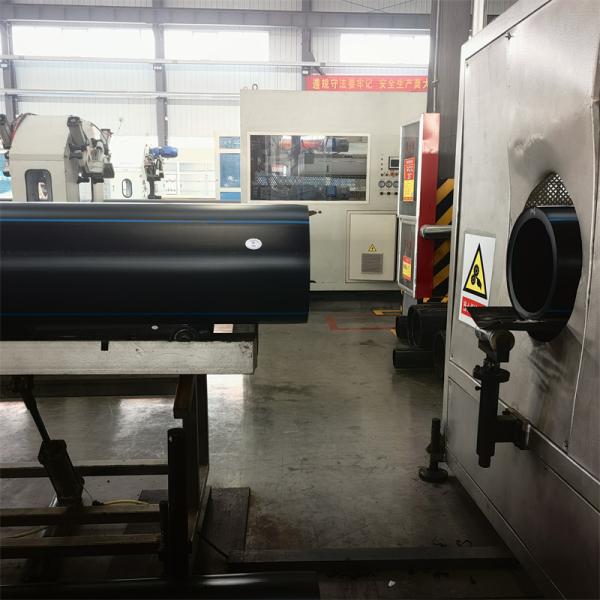

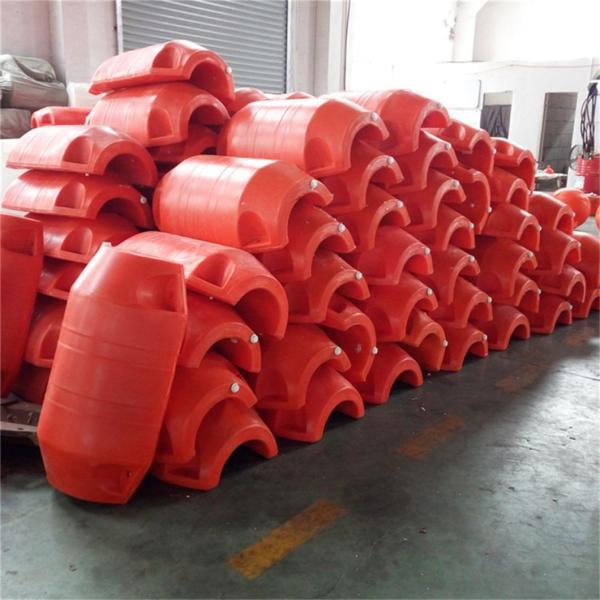

HDPE pipe for discharge material Hydraulic floater for HDPE pipe Rubber hose connectiong Pipe

cutter suction dredger can equipped the mining machinery and sand washing system so on

6. Main part introduce :

Rexroth hydraulic pump : cutter suction dredger hydraulic system from Gemany . whole hydraulic is made of hydraulic pump . hydraulic pipeline . hydraulic valvel . hydraulic motor . all hydraulic system is used for anchor boom . lifting winch . swing winch . cutter head so on

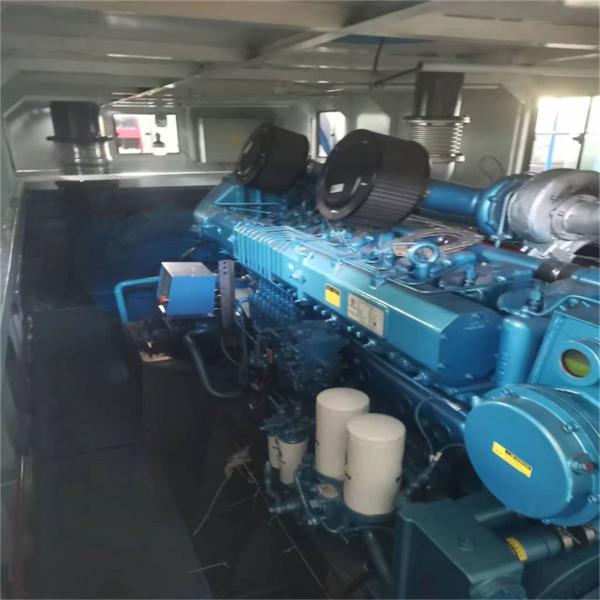

Diesel engine power : Cumins diesel engine is standard configuration in cutter suction dredger . Weichai . Carter . Yuchai are available . it can provide the power for hydaulic system . generator . river sand pump so on .

cutter suction winch . Normally it has 2 sets swing winches . 1 set lifting winch . 2 sets of anchor boom . all winch is used for cutter ladder lifting and swing . the power from the hydraulic pump

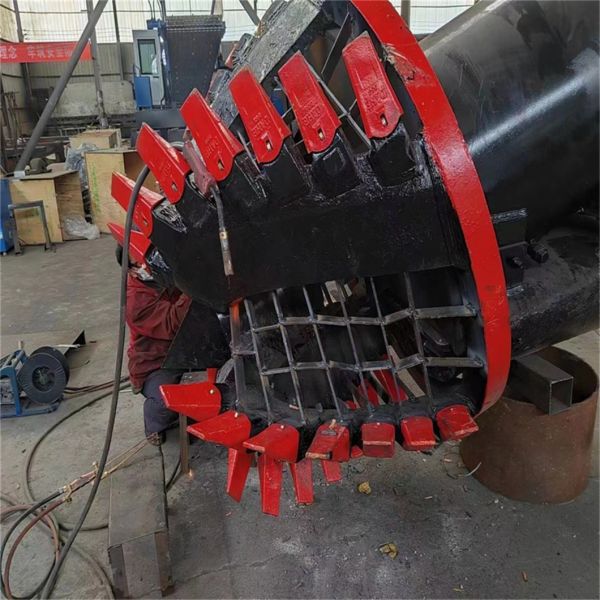

hydraulic cutter head : it fuction : use it to rotate to add mixture concentration . hydraulic motor offer the power for cutter head .shaft power 38kw-450kw . diameter 800-2400 mm is standard configuration . we can according to the customers request to do it

Sand pump : Shijiazhuang industrial sand pump factory is standard configuration in my cutter suction dredger . main pump is made of pump shell . pump impeller so on

control cabin : all control system is operated by the one person . operation system . hydraulic system . mornitoring system so on adjustable chare so on

Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

7. advantage:

1	Engine : Cumins . Carter . Weichai . Yuchai so on
2	We can offer full automatic diesel engine power meantine can offer electric cutter suction dredger with underwater pump
3	Shijiazhuang industrial sand pump factory is standard configuration in my dredger (long service working time )
4	Rexroth Hydraulic system form Gemany ( in addtion : Vickers . Parker so on are available for cutter suction dredger )
5	Siemens PLC control system for our cutter suction dredger .
6	Plentyful optional configuration : underwater pump anchor boom . booster station . water flow meter . concentration meter so on

8. Packing and transportation picture:

9. customer visit our factory :
AOERHENG dredging machines have been exported to about 65 countries in Southeast Asia, South Asia, Africa,
and South America.

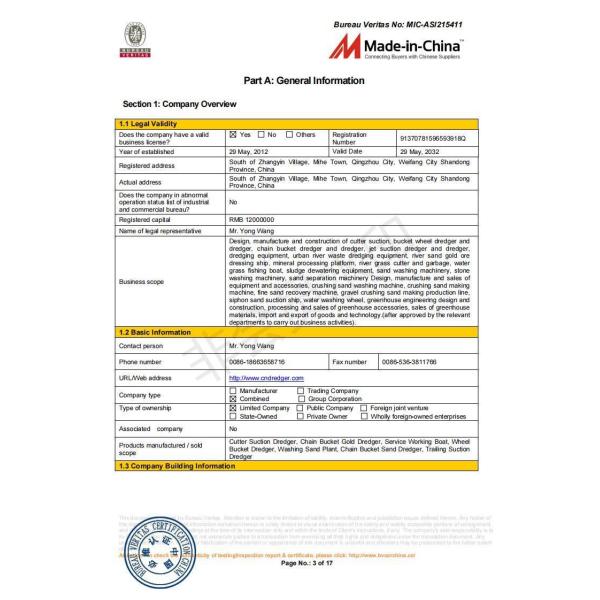

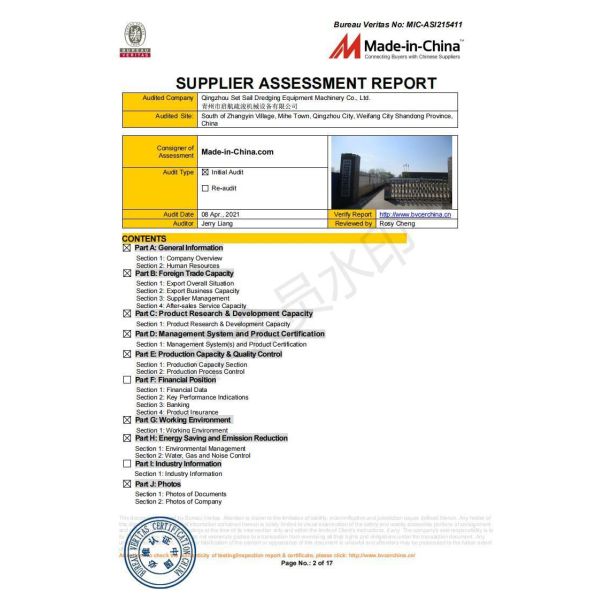

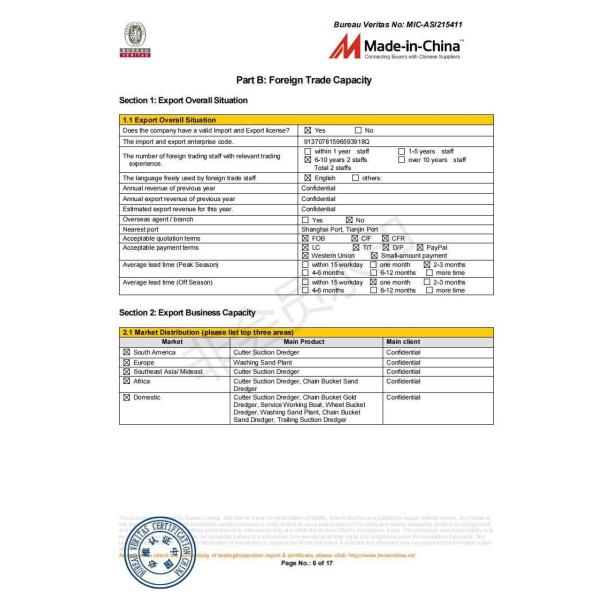

9. Our certification :

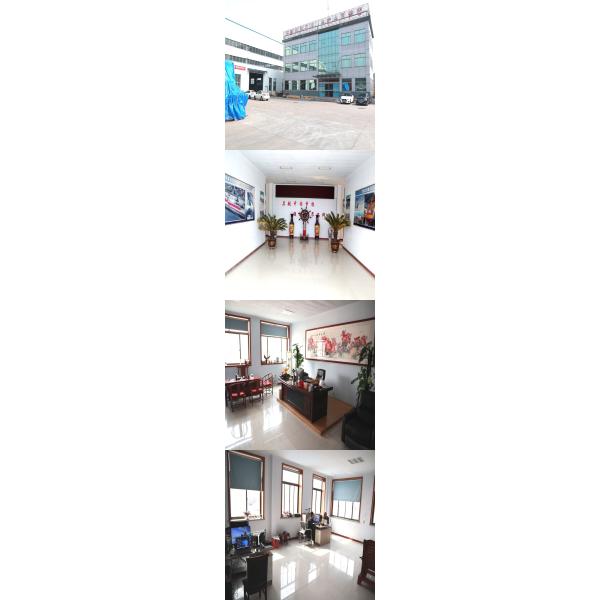

10. Our factory overview

AOERHENG dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

AOERHENG dredger is sold more than 80 countries .
