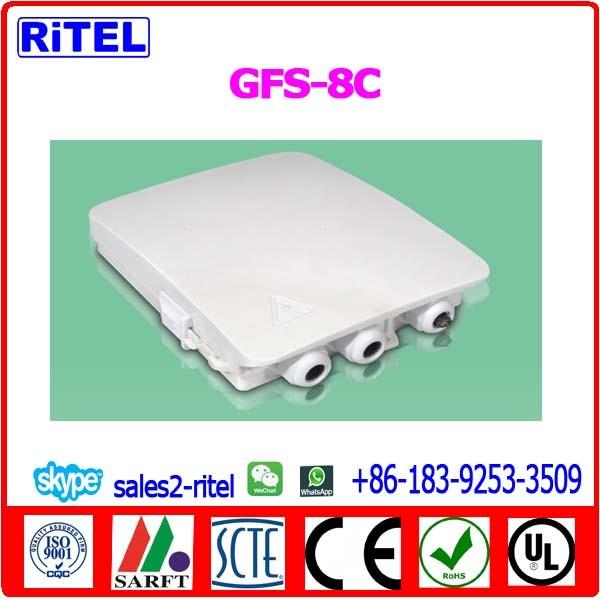

High quality 1 input/2 output FTTx Optic Distribution Box GFS-8C
High quality 1 input/2 output FTTx Optic Distribution Box GFS-8C
High quality 1 input/2 output FTTx Optic Distribution Box GFS-8C
High quality 1 input/2 output FTTx Optic Distribution Box GFS-8C
Specifications
Brand Name :
RITEL or OEM
Model Number :
High quality 1 input/2 output FTTx Optic Distribution Box GFS-8C
Certification :
CE, UL, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
$10.00~$100.00/PC
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
20000pcs per months
Delivery Time :
Depends on quantity
Packaging Details :
Carton, box
Description
High Quality FTTX Optic Distribution Box GFS-8C

Description

The equipment is widely used as a termination point for the feeder cable to connect with drop cable.The fiber splicing, splitting, distribution can be done in this box, and it provides solid protection and management for the fttx network building.

Features

> Total enclosed structure, 1 input & 2 output, max 8 cores
> Material: PC+ABS, wet-proof,water-proof,dust-proof,anti-aging, IP65

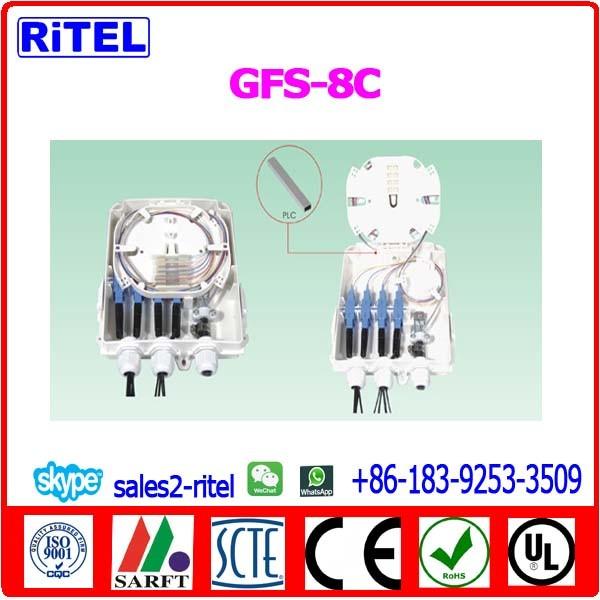

> Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution
> Cable, pigtails, patch cords & cassette SC/LC/PLC adaptor installation, easy maintenance.
> Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way.
> Wall-mounted for indoor and outdoor.

Specification

1．Environmental Performance
Working temperature:-40~+85C

Relative humidity: ≤85%(+30C)

Atmospheric pressure: 70KPa～106 KPa


2. Optical Performance
Insertion loss: ≤0.2dB
UPC return loss≥50 dB
APC return loss≥60 dB

Life of insertion and extraction: >1000 times


3.Thunder-proof Performance
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MΩ/500V(DC); IR≥2x104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V

OEM/ODM/EMS is welcome!
