RS485 Full Height Turnstiles 304SS Stainless Steel 620mm 220V
RS485 Full Height Turnstiles 304SS Stainless Steel 620mm 220V
Specifications
Place of Origin :
China
Brand Name :
Sikerui
Certification :
CE / RoHS / FCC
MOQ :
1PCS
Packaging Details :
Wooden Box
Delivery Time :
5-7days
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Model Number :
SSTQGZ-D01
Price :
$1000-2000
Property :
Noise during device operation
Value :
≤60 dB
Single door :
length 1450* width 1450* height 2200mm
Channel width :
620mm
Rotation angle of the rotating rod :
90 degrees;
Communication interface :
RS485 electrical standard;
Description

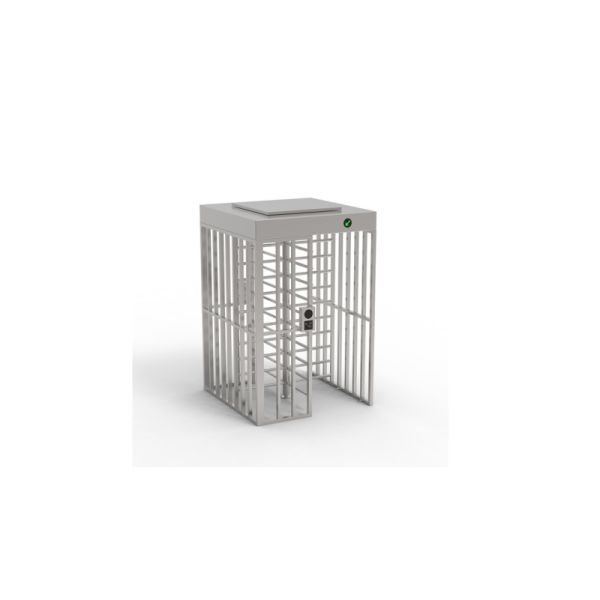

Stainless Steel Turnstile

Durable and reliable turnstile made of 304 stainless steel, ideal for controlling access in various environments. Suitable for both indoor and outdoor use (with canopy).

Key Benefits:
  • Robust 304 stainless steel construction
  • Suitable for high-traffic environments (up to 25 people/minute)
  • Supports one-way and two-way passage
  • Long service life: >5 million cycles
  • Versatile gate opening modes (ID/IC card, button)

Target Industries: Factories, office buildings, transportation hubs, stadiums, and any location requiring controlled pedestrian access.

Product Attributes
FOB Unit
piece
Product MOQ
Unspecified
FOB Price
0
Packaging & Delivery
Unspecified
Technical Specifications
Property Value
Material 304 stainless steel with a thickness of 1.0mm
Overall dimensions (Single door) length 1450* width 1450* height 2200mm
Overall dimensions (Double doors) length 2300* width 1450* height 2200mm
Channel width 620mm
Traffic speed ≤25 people/minute
Length of rotating rod 550mm
Rotation angle of the rotating rod 90 degrees
Turn the lever support one-way and two-way
Power supply voltage AC 220 V 10%, 50Hz
Driving voltage 24V
Gate opening mode ID/IC card swiping, button gate opening, etc.
Power >30W
Working environment temperature -20℃ ~+60℃
Relative humidity ≤95%, no condensation
Input interface 12V dry contact signal or 12V pulse signal with pulse width >150ms
Driving current >600mA
Communication interface RS485 electrical standard
Communication distance ≤ 1200m
Opening time 0.8S
Service life continuous opening and closing for more than 5 million times
Working environment indoor and outdoor (with canopy)
Noise during device operation ≤60 dB
