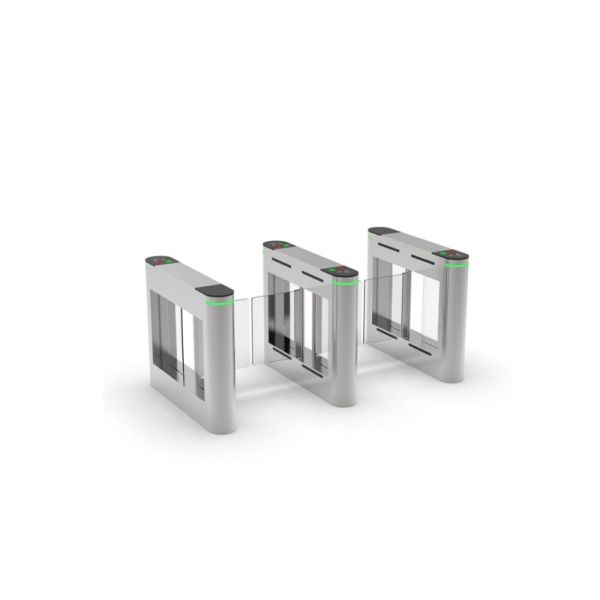

Small Swing Glass Security Turnstile Gate 220V 50Hz One Way Two Way
Small Swing Glass Security Turnstile Gate 220V 50Hz One Way Two Way
Small Swing Glass Security Turnstile Gate 220V 50Hz One Way Two Way
Small Swing Glass Security Turnstile Gate 220V 50Hz One Way Two Way
Specifications
Place of Origin :
China
Brand Name :
Sikerui
Certification :
CE / RoHS / FCC
MOQ :
1PCS
Packaging Details :
Wooden Box
Delivery Time :
5-7days
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Price :
$800-1200
Material :
304 stainless steel with a thickness of 1.0mm
Overall dimensions (Single core) :
length 1200* width 200* height 980mm
Overall dimensions (Double movement) :
length 1200* width 200* height 980mm
Channel width :
550-800 mm
Traffic speed :
≤30 people/minute
Traffic mode setting :
support one-way traffic, two-way traffic, free traffic, etc.
Power supply voltage :
AC 220 V 10%, 50Hz
Driving motor voltage :
DC 24V brushless motor
Gate opening mode :
ID/IC card reading head verification gate opening, infrared induction automatic gate opening, button gate opening, etc.
Protection function :
electromechanical anti-collision, infrared anti-pinch, illegal intrusion infrared alarm
Power :
>30W
Working environment temperature :
-20℃ ~+60℃
Relative humidity :
relative humidity ≤95%, no condensation
Input interface :
12V dry contact signal or 12V pulse signal with pulse width >150ms
Driving current :
>600mA
Communication interface :
RS485 electrical standard
Communication distance :
≤ 1200m
Opening time :
0.8S
Service life :
continuous opening and closing for more than 5 million times
Working environment :
indoor and outdoor (with canopy)
Noise during device operation :
≤60 dB
Description
High-Performance Stainless Steel Turnstile

Our high-performance turnstiles are engineered for reliable and efficient access control in a variety of environments. Constructed from durable 304 stainless steel, these turnstiles offer a robust solution for managing pedestrian traffic with precision and security.

Featuring multiple traffic modes and advanced protection functions, our turnstiles provide a versatile and safe access control solution. With a long service life and low noise operation, they are ideal for both indoor and outdoor applications.

  • Durable 304 Stainless Steel Construction
  • Multiple Traffic Modes (One-way, Two-way, Free)
  • Advanced Anti-collision and Anti-pinch Protection
  • Suitable for Indoor and Outdoor Use (with canopy)
  • Long Service Life (5 Million+ Openings)

Ideal for: Commercial Buildings, Transportation Hubs, Industrial Facilities, Government Institutions, and Public Venues.

Product Attributes
FOB Unit: Set
Product MOQ: 1
FOB Price: 0
Packaging & Delivery: According to customer requirements
Technical Specifications
Parameter Specification
Material 304 stainless steel with a thickness of 1.0mm
Overall dimensions (Single core) length 1200* width 200* height 980mm
Overall dimensions (Double movement) length 1200* width 200* height 980mm
Channel width 550-800 mm
Traffic speed ≤30 people/minute
Traffic mode setting support one-way traffic, two-way traffic, free traffic, etc.
Power supply voltage AC 220 V 10%, 50Hz
Driving motor voltage DC 24V brushless motor
Gate opening mode ID/IC card reading head verification gate opening, infrared induction automatic gate opening, button gate opening, etc.
Protection function electromechanical anti-collision, infrared anti-pinch, illegal intrusion infrared alarm
Power >30W
Working environment temperature -20℃ ~+60℃
Relative humidity relative humidity ≤95%, no condensation
Input interface 12V dry contact signal or 12V pulse signal with pulse width >150ms
Driving current >600mA
Communication interface RS485 electrical standard
Communication distance ≤ 1200m
Opening time 0.8S
Service life continuous opening and closing for more than 5 million times
Working environment indoor and outdoor (with canopy)
Noise during device operation ≤60 dB
