Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
Specifications
Payment Terms :
T/T
Price :
US6500
Total height :
900 mm
Model Number :
SST-ACBG-4M
Free space :
500 mm
MOQ :
1
Delivery Time :
5-12Day
Drive mode :
Built-in hydraulic drive
Supply Ability :
1000
Packaging Details :
standard size
Certification :
PAS68
Opening speed :
8s
Place of Origin :
china
Barrier width :
6m
Brand Name :
SST
Impact resistance :
K4 standards
Description
Anti-collision Parking Gate, Anti-terrorism Barrier Gate, Anti-collision Grade PAS68

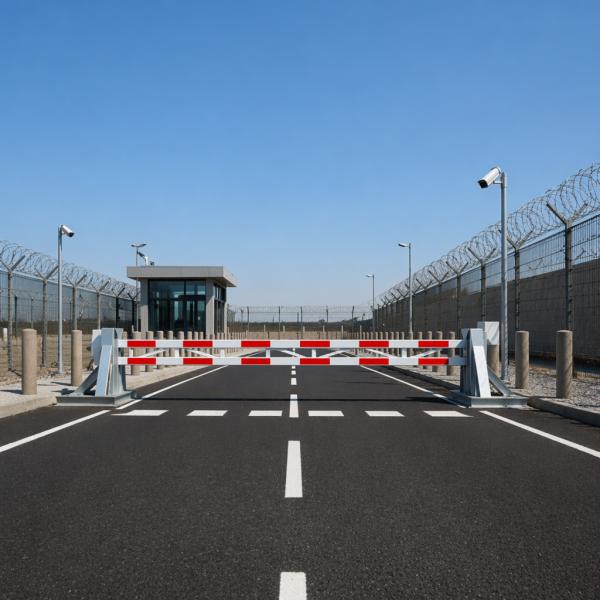

High security rising arm barrier, model DUAL HSRAB Barrier with impact resistance equivalent to K4 standards for 6.8 ton vehicles traveling at 48km/h. A steel rope is installed inside the bar profile in accordance with EN 12385-4 + A1: 2008. The barrier arm consists of two 100/100/5 HRS parts. The width of the barrier: 6m, total height 900 mm, 500 mm free space under the barrier, the arm has a height of 400 mm.
PAS68 Impact Hinged Gate
Features
  • Hydraulic operation
  • K4 impact rating
  • Opens in 8 seconds
Benefits
  • Strong construction
  • Easy to open
  • Equipped with photocells
  • Galvanization + RAL coating
Technical Specifications
Physical Dimensions: To suit site requirement
Impact Absorption: 1852KJ
Full PAS68 (2005) Security Rating: V/7500(N3)/80/90:5.7/25
Tested Model: 1.0m H x 3.8m opening
Construction: The framework is constructed from fully welded, heavy gauge, steel angle and box section and hi-tensile structural steel. The gate is constructed with up to a 4.5m opening using a heavy steel cross beam. The foundations comprise of a rebar cage set in concrete to a depth of 470mm. Side catcher assemblies are set within the rebar reinforcements with the hinged post is fixed to studs grouted into the concrete foundation.
Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68 Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68 Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68 Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68 Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68 Anti-collision parking gate, anti-terrorism barrier gate, anti-collision grade PAS68
