Specifications
Certification :
CE / RoHS / FCC
Communication distance :
≤1200m
Packaging Details :
Wooden Box
MOQ :
1PCS
Price :
$300-500
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Operating voltage :
AC220V ±10%, 50HZ
Channel width :
550-1200mm
Communication interface :
RS485
Overall dimensions :
240*180*1015mm
Brand Name :
Sikerui
Operation noise :
≤60 dB
Model Number :
SSTBZ-D03
Delivery Time :
5-7days
Place of Origin :
China
Description
Vertical Three Turnstile Gate Security Turnstile Gate
Engineered for access management using durable rust-proof stainless steel sheet and vertical roller mechanism
Technical Specifications
Structure Constructed from stamped 304 stainless steel sheet, rust-proof and durable
Operating Voltage AC220V ±10%, 50HZ
Rated Power 100W/24A
Operating Temperature -15°C to 70°C
Relative Humidity ≤90%, no condensation
Input Interface 12V level signal or 12V pulse signal (pulse width > 100ms, driving current >10mA)
Passing Speed 30 people/minute (normally open), 20-30 people/minute (normally closed)

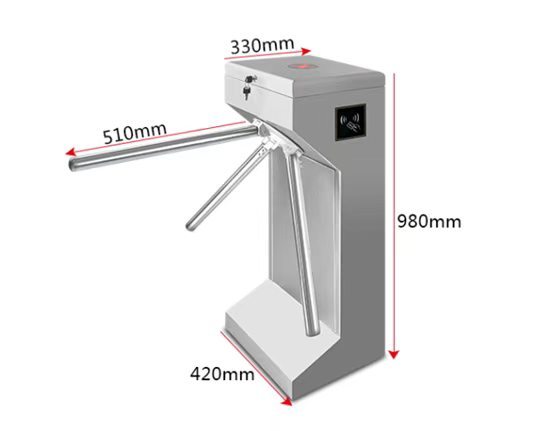

Dimensions 1200*280*980mm, Passage Width: ≤550mm
Gate Operation Time Adjustable speed via panel control
Key Features
  • Semi-automatic mechanical control
  • Automatic rod dropping after power failure
  • Compatible with IC card, ID card, barcode card, fingerprint and other identification devices
  • Smooth gate operation with low noise
  • Illegal break-in alarm function
  • Simple structure with high reliability
  • Widened direction indicating lights
  • Elegant appearance, rust-proof, durable and resistant to external damage
  • Remote control and management via supervisory computer
  • Card reading with or without memory function
  • Software-configurable venue capacity restrictions
  • Multiple working modes: two-way card reading, one-way card reading, and free passage
Product Gallery

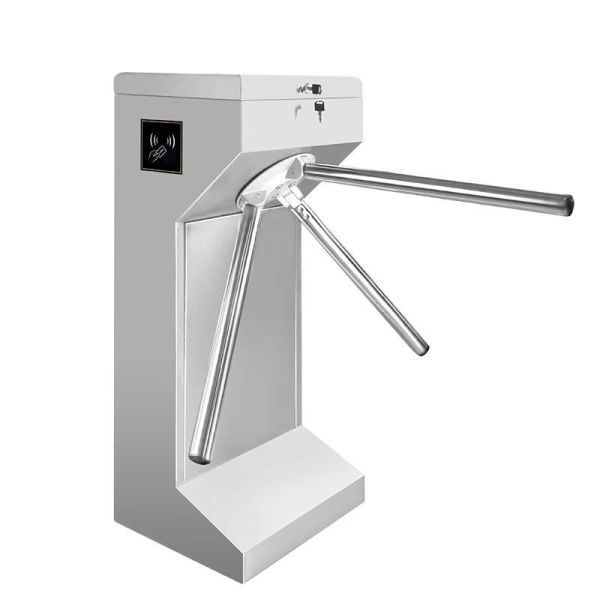

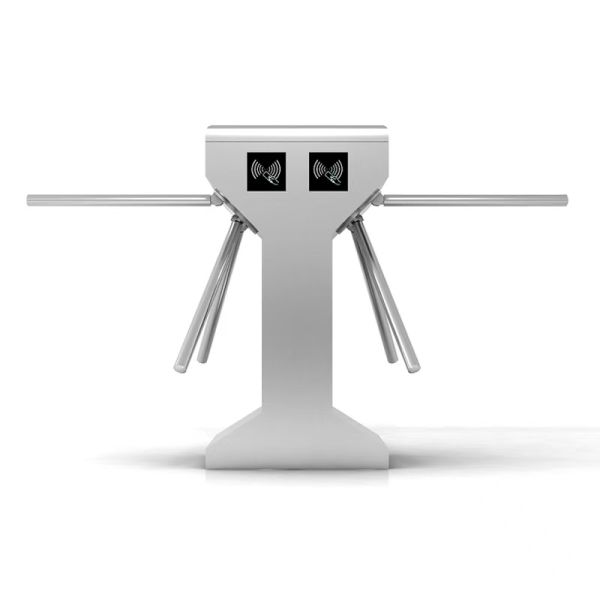

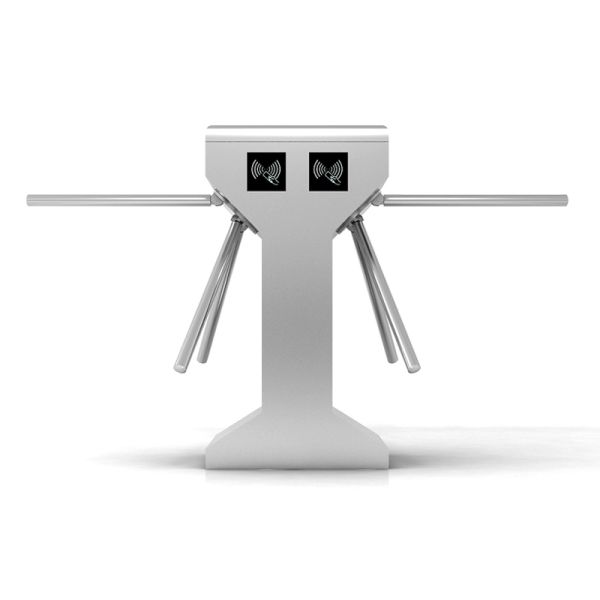

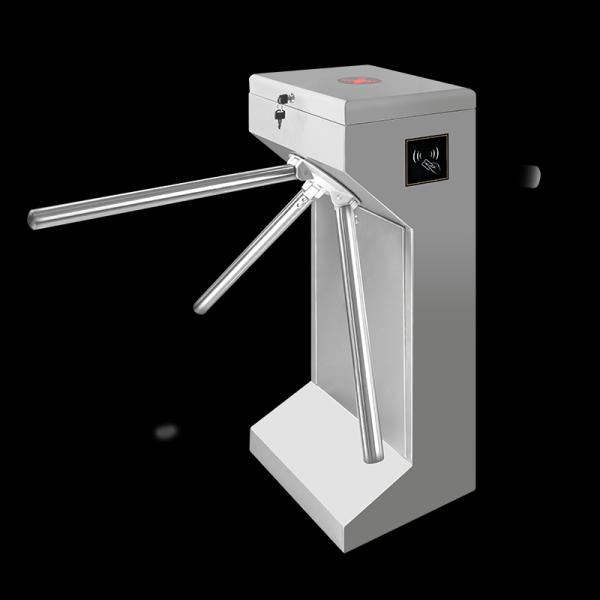

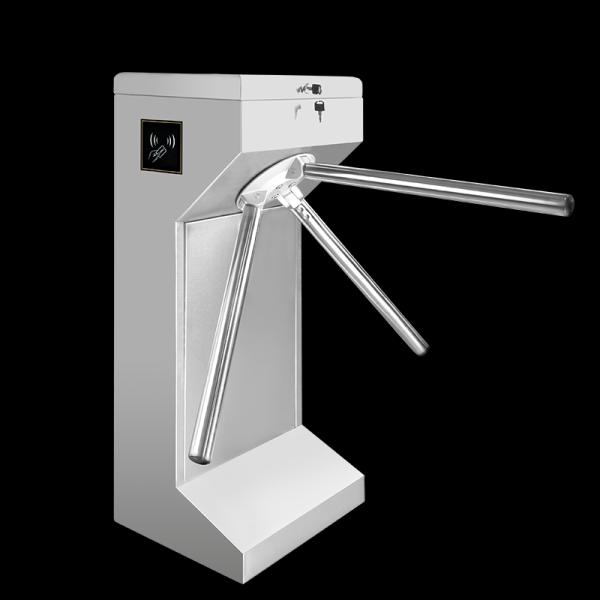

Security Vertical Turnstile Gate Designed to Support Biometric and Card Reader Systems for Enhanced Security and User Convenience Security Vertical Turnstile Gate Designed to Support Biometric and Card Reader Systems for Enhanced Security and User Convenience Security Vertical Turnstile Gate Designed to Support Biometric and Card Reader Systems for Enhanced Security and User Convenience
