304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
304 Stainless Steel Vertical Three Roller Barrier with RS485 Communication Interface and 30 People/Minute Passing Speed
Specifications
Brand Name :
Sikerui
Model Number :
SSTBZ-D03
Certification :
CE / RoHS / FCC
Place of Origin :
China
MOQ :
1PCS
Price :
$300-500
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Delivery Time :
5-7days
Packaging Details :
Wooden Box
Operation noise :
≤60 dB
Overall dimensions :
240*180*1015mm
Channel width :
550-1200mm
Communication interface :
RS485
Communication distance :
≤1200m
Operating voltage :
AC220V ±10%, 50HZ
Description
Vertical Three Roller Barrier / Vertical Three Turnstile Gate
Technical Specifications
  • Structure: Constructed from stamped 304 stainless steel sheet, rust-proof and durable
  • Operating Voltage: AC220V ±10%, 50HZ
  • Rated Power: 100W/24A
  • Operating Temperature: -15°C to 70°C
  • Relative Humidity: ≤90%, no condensation
  • Input Interface: 12V level signal or 12V pulse signal (pulse width > 100ms, driving current >10mA)
  • Passing Speed: 30 people/minute (normally open), 20-30 people/minute (normally closed)

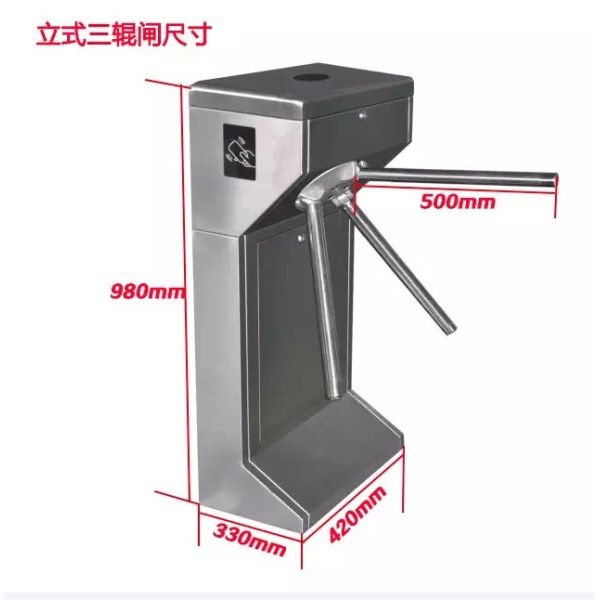

  • Dimensions: 1200×280×980mm, Passage Width: ≤550mm
  • Gate Operation Time: Adjustable speed via panel control
Key Features
Semi-automatic mechanical control
Automatic rod dropping after power failure
Compatible with IC card, ID card, barcode card, fingerprint and other identification devices
Smooth gate operation with low noise
Illegal break-in alarm function
Simple structure with high reliability
Widened direction indicating lights
Elegant appearance, rust-proof, durable and resistant to external damage
Remote control and management via supervisory computer
Card reading with or without memory function
Software-configurable venue capacity restrictions
Multiple working modes: two-way card reading, one-way card reading, and free passage
