Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
Specifications
Brand Name :
Sikerui
Model Number :
SSTQGZ-S01
Certification :
CE / RoHS / FCC
Place of Origin :
China
MOQ :
1PCS
Price :
$1000-2000
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Delivery Time :
5-7days
Packaging Details :
Wooden Box
Noise level :
≤60 dB
Single door dimensions :
1450x1450x2200mm
Channel width :
620mm
Power supply voltage :
AC 220 V 10%, 50Hz
Working temperature :
-20℃ ~+60℃
Service life :
5 million cycles
Description
User Friendly Full Height Turnstile Gate

High-performance stainless steel turnstile providing safe and efficient pedestrian throughput in commercial, industrial, and public spaces. Durable and reliable access control solution for various environments.

Product Overview

Our stainless steel turnstiles provide a robust and efficient solution for managing pedestrian access. Constructed from high-quality 304 stainless steel, these turnstiles are designed for durability and longevity, even in high-traffic environments. With customizable gate opening modes and versatile applications, they are ideal for enhancing security and streamlining access control.

Key Benefits
  • Durable Construction: Made from 1.0mm thick 304 stainless steel for long-lasting performance
  • High Traffic Capacity: Supports up to 25 people per minute
  • Versatile Operation: Supports both one-way and two-way traffic with customizable gate opening modes
  • Wide Environmental Range: Operates reliably in temperatures from -20℃ to +60℃
  • Long Service Life: Designed for over 5 million continuous opening and closing cycles

Target Industries and Applications: Suitable for stadiums, factories, transportation hubs, and commercial buildings requiring secure and efficient pedestrian access control.

Technical Specifications
Property Value
Material 304 stainless steel with a thickness of 1.0mm

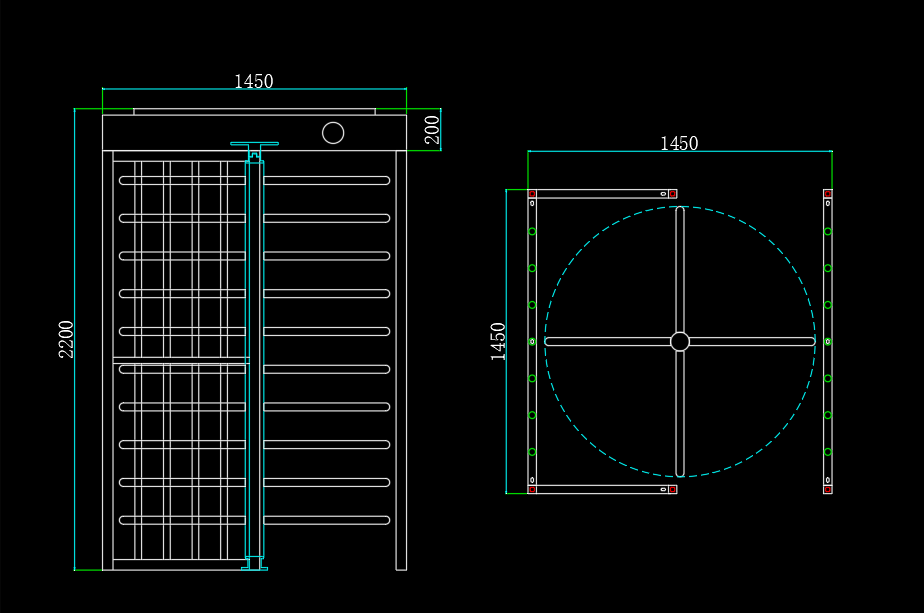

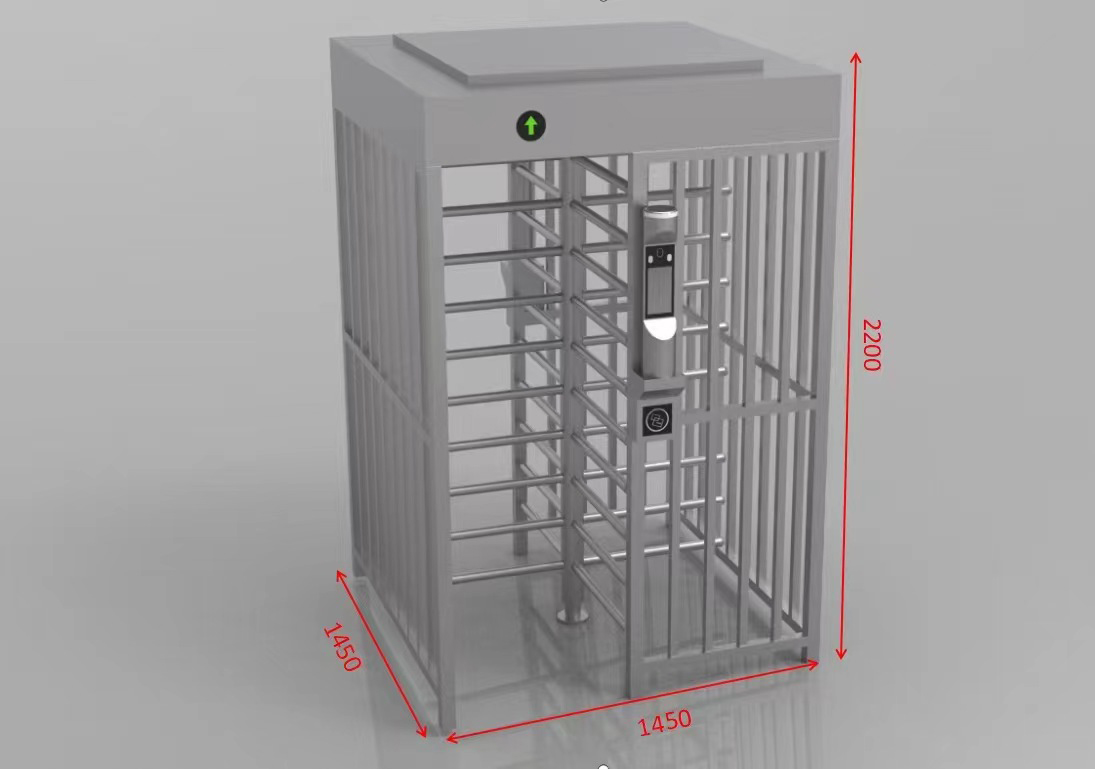

Overall dimensions (Single door) length 1450 * width 1450 * height 2200mm

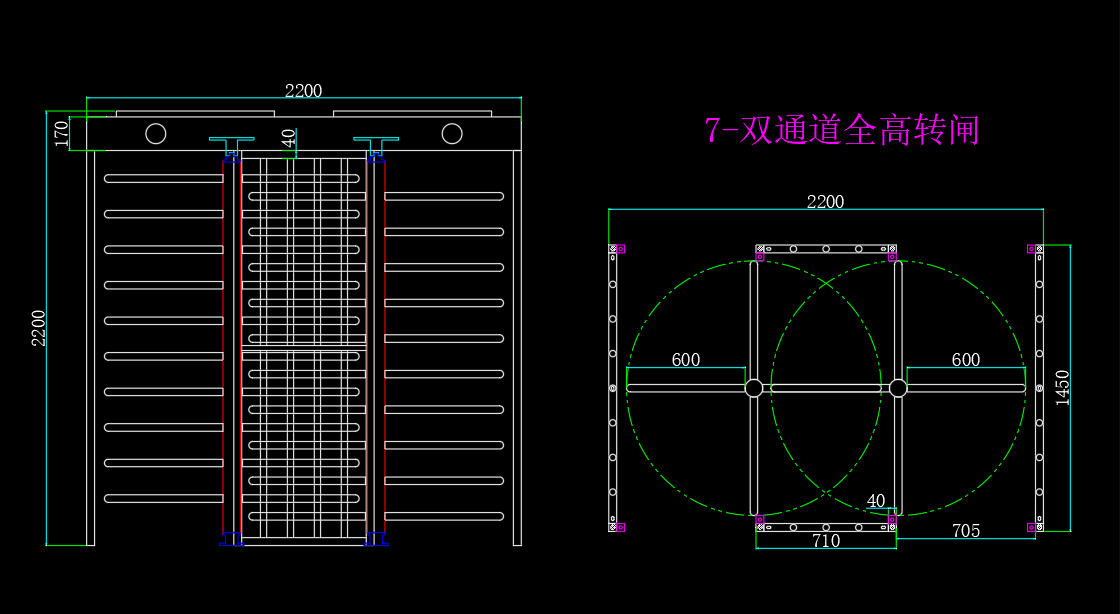

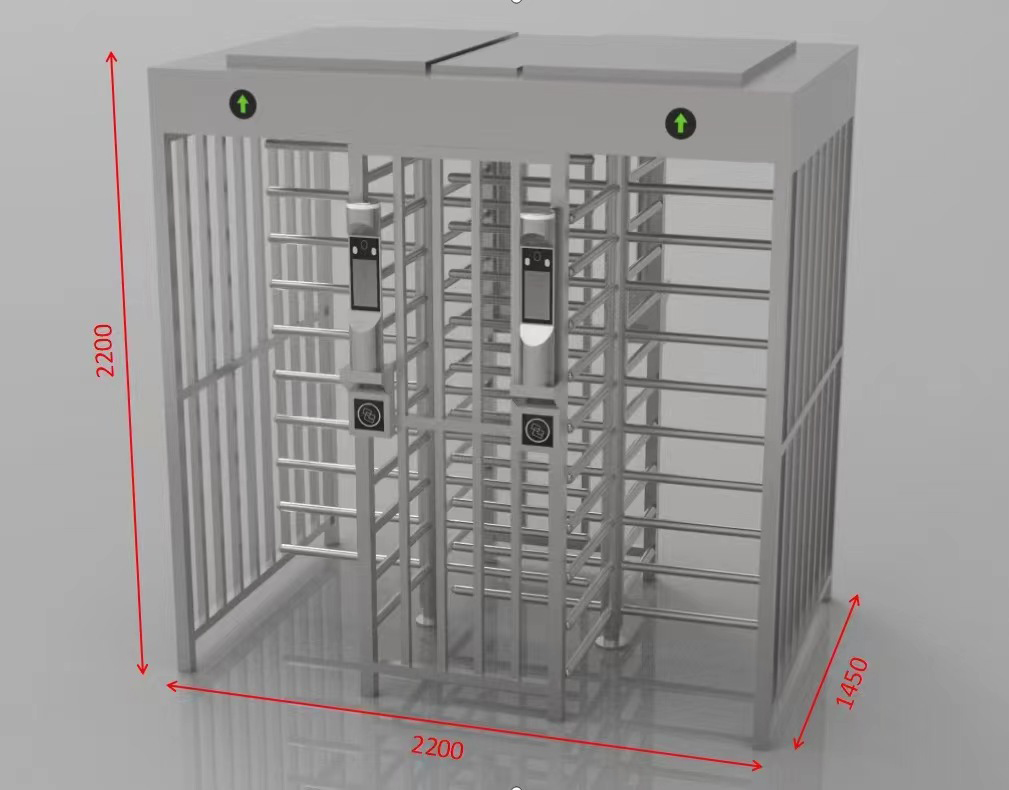

Overall dimensions (Double doors) length 2300 * width 1450 * height 2200mm
Channel width 620mm
Traffic speed ≤25 people/minute
Length of rotating rod 550mm
Rotation angle of the rotating rod 90 degrees
Turn the lever support one-way and two-way
Power supply voltage AC 220 V 10%, 50Hz
Driving voltage 24V
Gate opening mode ID/IC card swiping and other reading heads verify gate opening, button gate opening, etc.
Power >30W
Working environment temperature -20℃ ~+60℃
Relative humidity relative humidity ≤95%, no condensation
Input interface 12V dry contact signal or 12V pulse signal with pulse width >150ms
Driving current >600mA
Communication interface RS485 electrical standard
Communication distance ≤ 1200m
Opening time 0.8S
Service life continuous opening and closing for more than 5 million times
Working environment indoor and outdoor (with canopy)
Noise during device operation ≤60 dB
Product Gallery
Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control Durable 304 Stainless Steel Full Height Turnstile Gate with 5 Million Cycles and 620mm Channel Width for Secure Access Control
