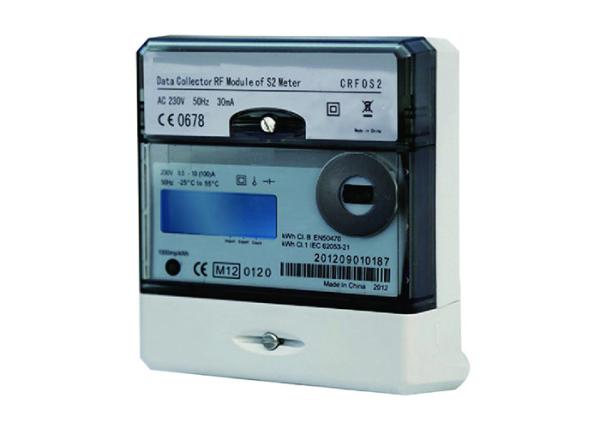

230V Digital Import Export Smart KWh Meter Single Phase Electricity Sub Meter
230V Digital Import Export Smart KWh Meter Single Phase Electricity Sub Meter
Specifications
Brand Name :
RISESUN
Model Number :
S2-M/T
Place of Origin :
Zhejiang. China
MOQ :
500 pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs per month
Delivery Time :
30 work days
Packaging Details :
Carton
Name :
230V Digital Import Export Smart KWh Meter Single Phase Electricity Sub Meter
Rated voltage, extended range :
230V, -20%/+15%
Internal consumption active power :
≤1.5W
Current range :
0.5-10(100)A
Accuracy class ±1% :
B
Start current :
0.4% lb
Baud rate :
Optical-300 to 9600 baud
Design life :
20years
Certification life :
15 years
Description

Single phase Electricity meter for sub-metering and generation markets

General introduction

The single Meter multi-functional electricity meter is designed for sub-metering and generation markets. It contains swappable communication module.

Technical specifications

Items Contents
Rated voltage, extended range 230V, -20%/+15%
Current range 0.5-10(100)A
Internal consumption active power ≤1.5W
Frequency 50/60Hz
Accuracy class ±1% B
Start current 0.4% lb
Baud rate Optical-300 to 9600 baud
Design life 20years
Certification life 15 years
Type examination certificate TCM 221/14-5207
Operating temperature -25℃/+55℃
Storage temperature -25℃/+85℃
Humidity Annual mean 75%(90% for 30 days/year)
Ingress protection IP53 IEC 62059

Main functions

  • MID approved
  • kWh import/export
  • kvarh import /export
  • Optical port
  • Pulse output available
  • Internal clock with high accuracy≤±0.5 second/day
  • 10 TOU and 4 tariffs function
  • 4 seasons and 50 special days
  • 13 months data and 10 count events log
  • Maximum demand
  • Swappable communication module

230V Digital Import Export Smart KWh Meter Single Phase Electricity Sub Meter

Our company

Zhejiang Risesun Science and Technology Co., Ltd.(Abbreviated as Risesun.The former: Wenzhou City Risesun Electrical Meter Co., Ltd., established on Nov. 26, 1997.)is a national level high and new technology enterprise with the business range of research and development, production, sale and after-sales service for energy measuring meters and acquisition systems of consumed energy information.
Risesun owns several inteligent production lines,is equipped with complete high-grade, precision and advanced calibrating and testing equipment, forms Three-in-one Management System of ISO9001:2008, ISO14001:2004,OHSAS18001:2007 as its Quality Control Standards,and carries out the scientific quality management for product design and development,supplier material evaluation and review, production process control, product ex-factory acceptance, after-sales service, etc. to make sure that the production quantities of intelligent energy meters, charging piles and metering boxes are more than 20,000pcs per day.
