Specifications
Brand Name :
KINESIS
Model Number :
TR590
Certification :
ISO9001,3C
Place of Origin :
CHINA
MOQ :
50 pieces
Price :
USD330-400
Payment Terms :
L/C, T/T, Paypal,, Western Union
Supply Ability :
800000 pieces
Delivery Time :
45-60 days after order confirmation
Packaging Details :
Carton, 4 units/carton
Material :
Aluminum Alloy 7046,Spf super plastic forming
Welding :
TIG welding+Putin
Max. Tire :
700 X 25c
SeatPost :
31.6mm
Headtube :
Tapered(1-1/8" upper, 1-1/2" lower)
Size :
40cm,44cm,47cm,50cm,53cm
Weight :
Frame 1450grams, Fork 700g
OEM/ODM :
Acceptable
Description

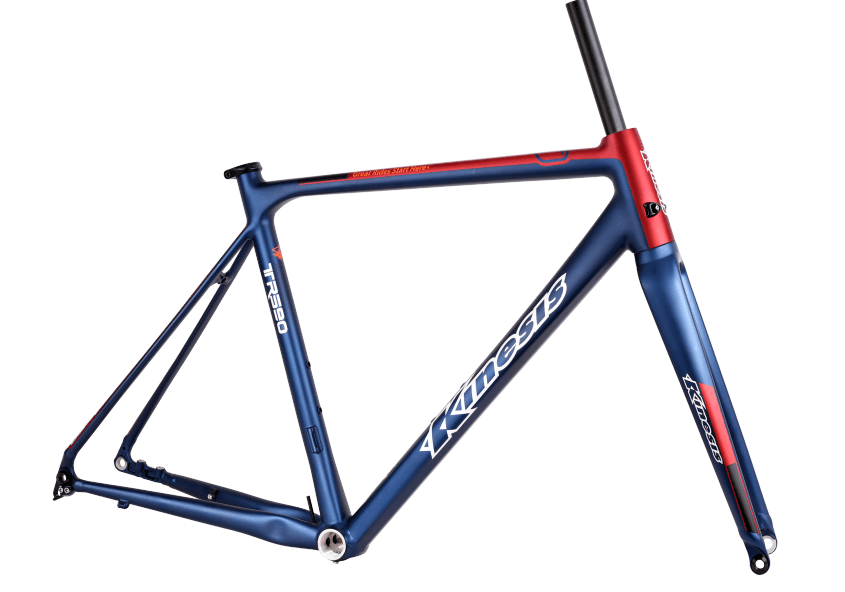

Kinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake

Features:
1. Lightweight with Al7046 aluminum alloy material.

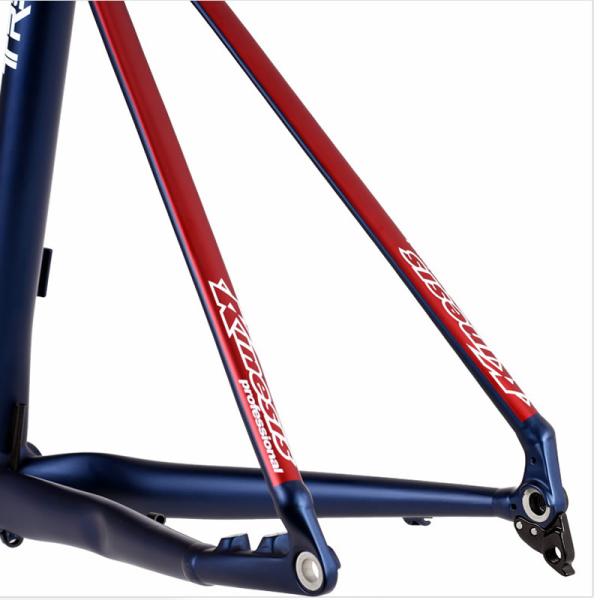

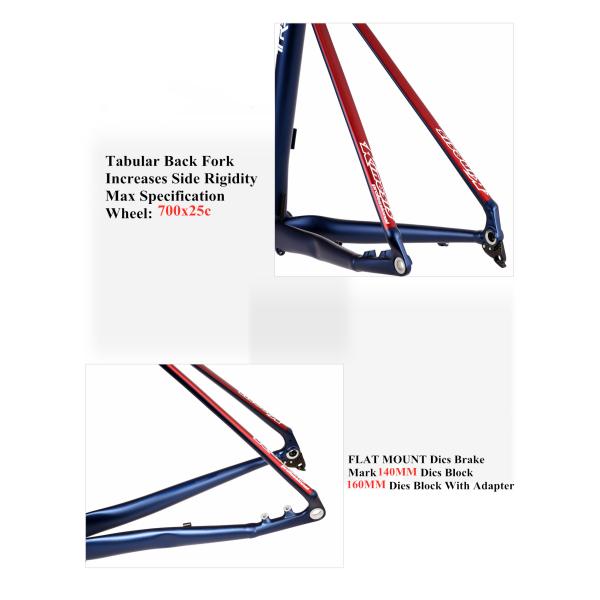

2. Disc Brake Road frame with 142x12 dropout (140mm, 160mm convertible).
3. Max. Tire: 700x 25c

Technical Data:

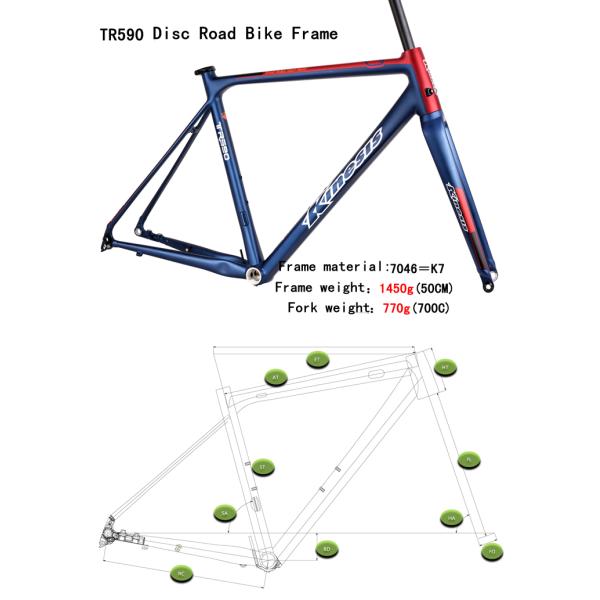

Product Name Lightweight 700c Disc Road Bike Frameset+ Fork
Model TR590
Brand Name KINESIS
Material Aluminum Alloy 7046,Spf super plastic forming.
Welding TIG+Smooth Welding
Max. Tire 700x 25c

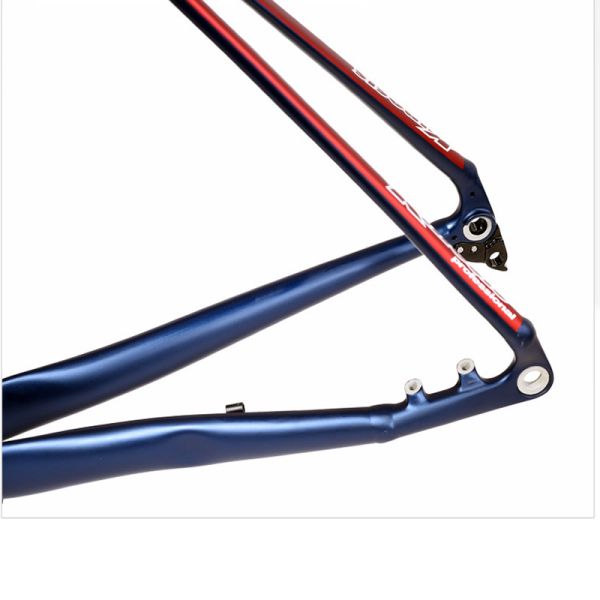

Frame Dropout 142 x 12mm

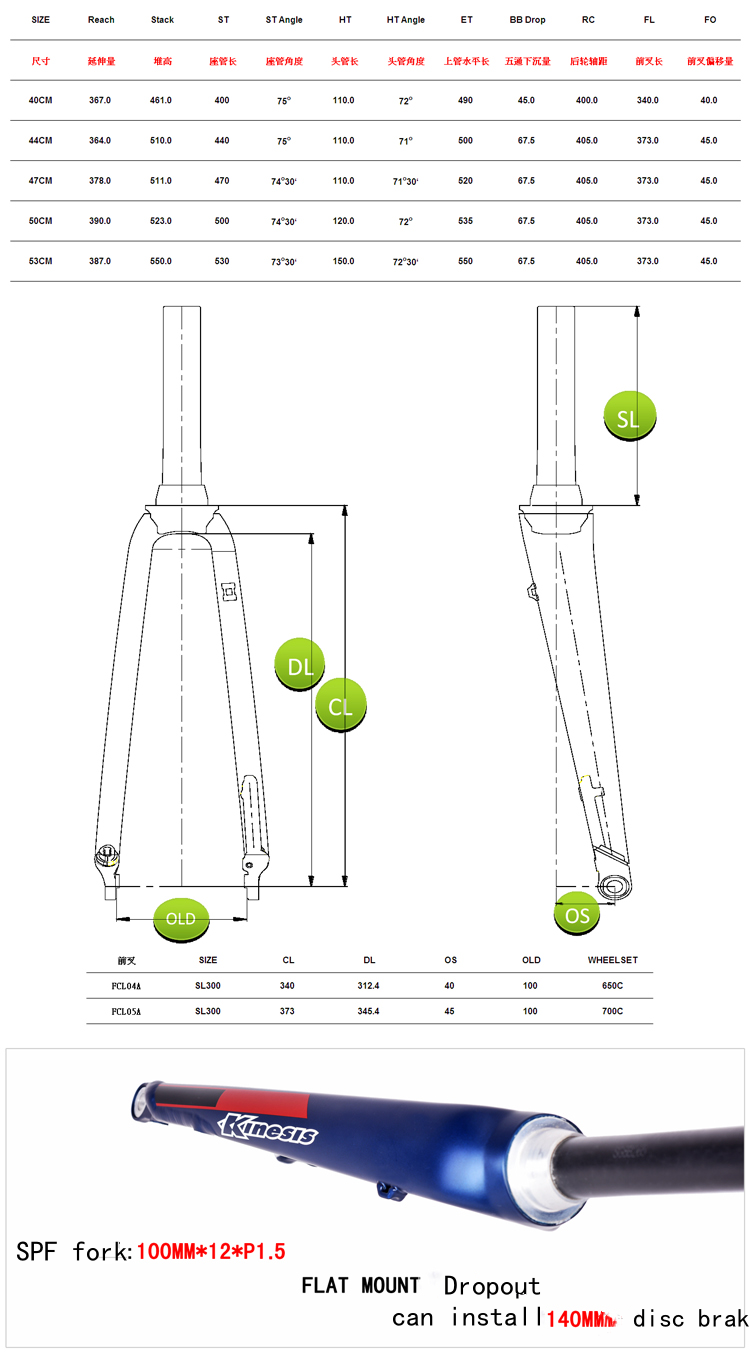

Size 40cm,44cm,47cm,50cm,53cm
Fork Available
Headtube Size Tapered(1-1/8" upper, 1-1/2" lower)
BB Size BB68mm
Seatpost Size 31.6mm
Brake Disc Brake(140mm post mount, 160mm convertible)

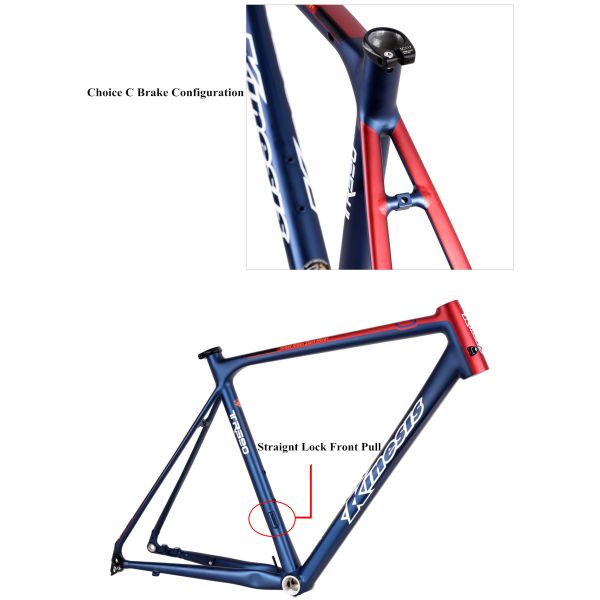

C brake optional
Rounting Internal Cable Routing
Weight Frame 1450g, Fork 700g
Color Red/Blue, Blue
Riding Sytle Aero Road
Frameset includes Frame, fork, headset, seatpost clamp, 142x12 thru-axle etc.
Warranty 2 years

Accessories: Headset, seatpost clamp, tail hook included.

Kinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+Fork

Kinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+Fork

Kinesis 700c Lightweight Aluminum Road Bike Frame Disc Brake Frameset+Fork
