Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork
Specifications
Brand Name :
KINESIS
Model Number :
TR380S
Certification :
ISO9001,3C
Place of Origin :
CHINA
MOQ :
2 pieces
Price :
USD330-400
Payment Terms :
L/C, T/T, Paypal,, Western Union
Supply Ability :
8000 pieces
Delivery Time :
10 days after order confirmation
Packaging Details :
Carton, 4 units/carton
Material :
Aluminum Alloy 6061,Spf super plastic forming
Welding :
TIG+Smooth Welding
Max. Tire :
700 X 25c
SeatPost :
31.6mm
Headtube :
Tapered(1-1/8" upper, 1-1/2" lower)
Size :
42cm,44cm,53cm

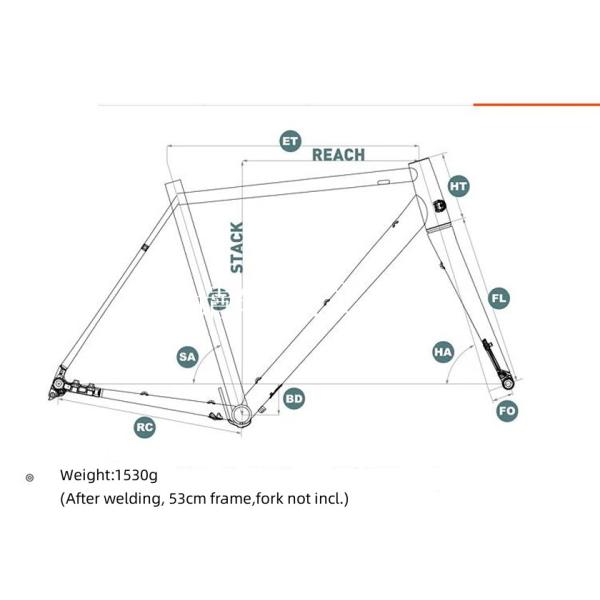

Weight :
Frame 1530grams(53cm), Fork 770g
OEM/ODM :
Acceptable
Description

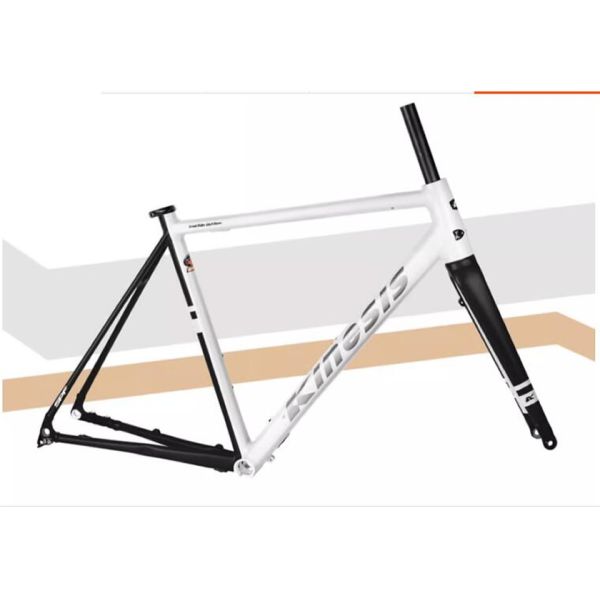

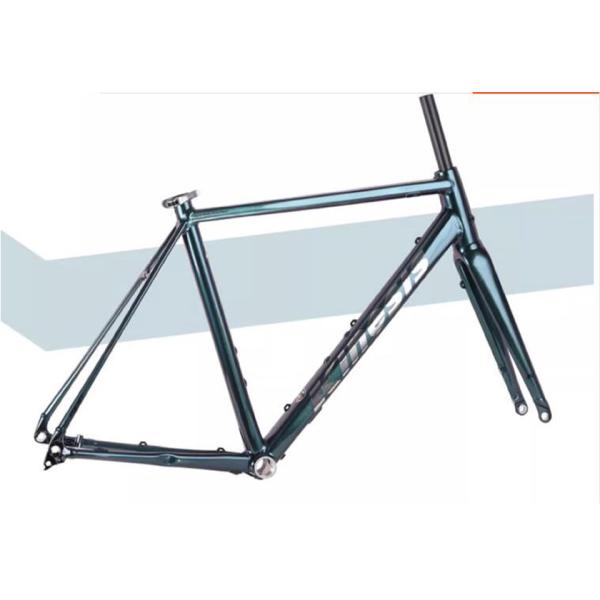

Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork


Features:
1. Lightweight with Al6061 aluminum alloy material.
2. Disc Brake Road frame with 142x12 dropout (140mm, 160mm convertible).
3. Max. Tire: 700x 25c

Technical Data:

Product Name 700c Disc Road Bike Frameset+ Fork
Model TR380S
Brand Name KINESIS
Material Aluminum Alloy 6061,Spf super plastic forming.
Welding TIG+Smooth Welding
Max. Tire 700x 25c

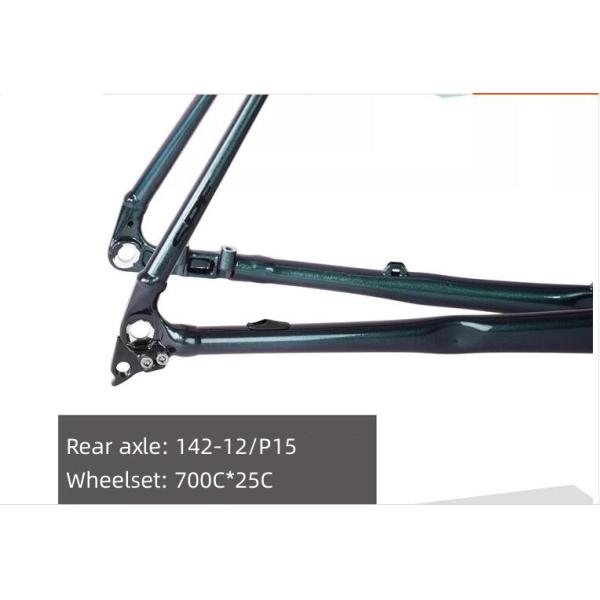

Frame Dropout 142 x 12mm

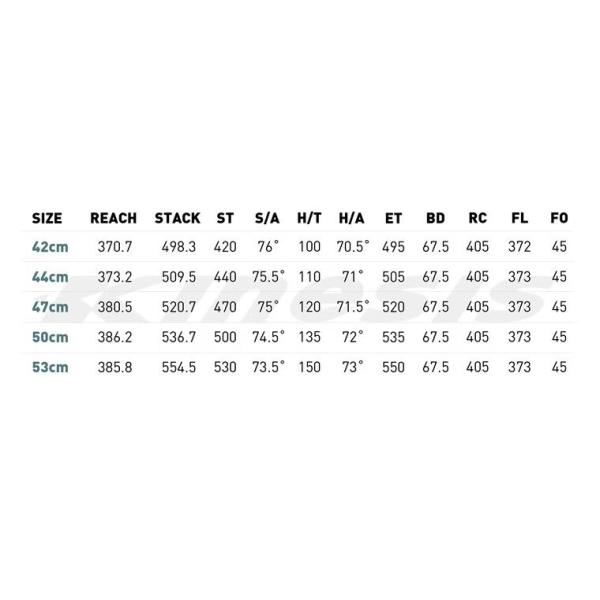

Size 42cm,44cm,53cm

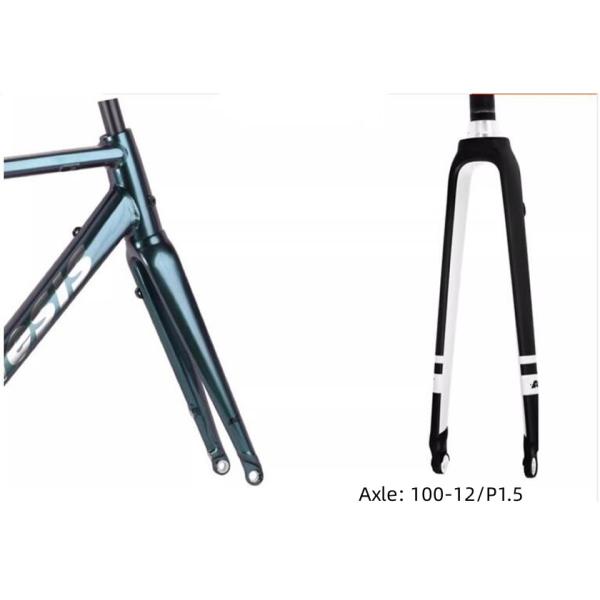

Fork Available

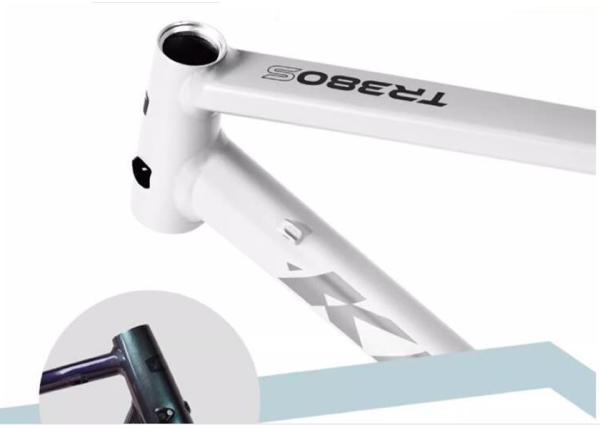

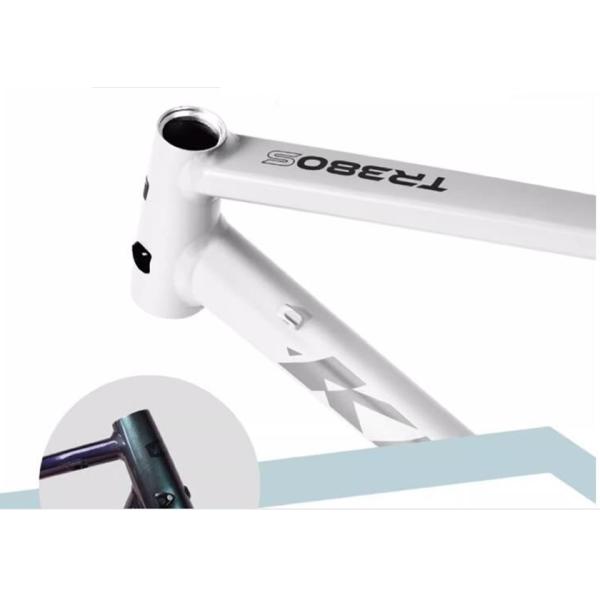

Headtube Size Tapered(1-1/8" upper, 1-1/2" lower)

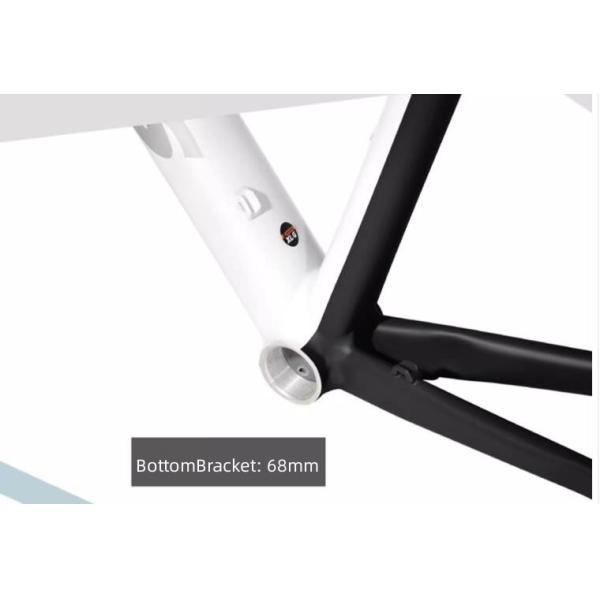

BB Size BB68mm

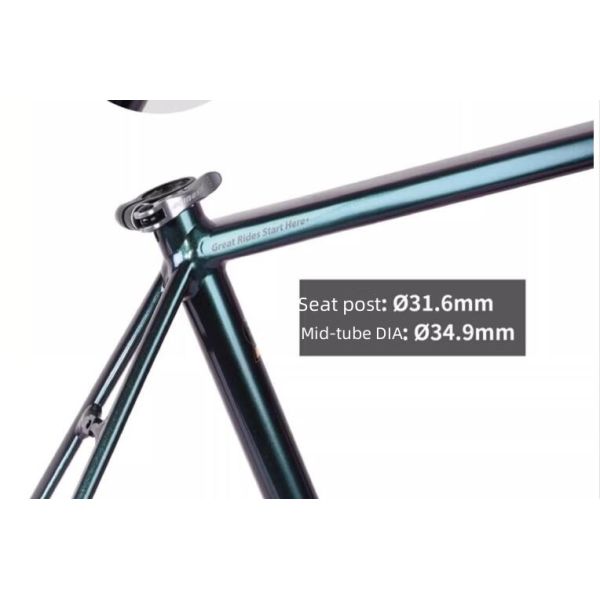

Seatpost Size 31.6mm
Brake Disc Brake(140mm post mount, 160mm convertible)
C brake optional
Rounting Internal Cable Routing

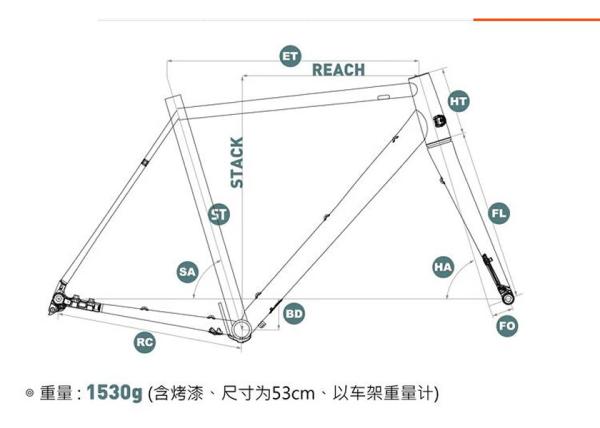

Weight Frame 1530g, Fork 770g
Color Red/Blue, Blue
Riding Sytle Aero Road
Frameset includes Frame, fork, headset, seatpost clamp, 142x12 thru-axle etc.
Warranty 2 years

Accessories: Headset, seatpost clamp, tail hook included.


Kinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+ForkKinesis 700c Aluminum 6061 Road Bike Frame Disc Brake Frameset+Fork

Now we have 42cm,44cm and 53cm frames in stock.

If you have interest and place order,we can send frames to you within 5 days.
