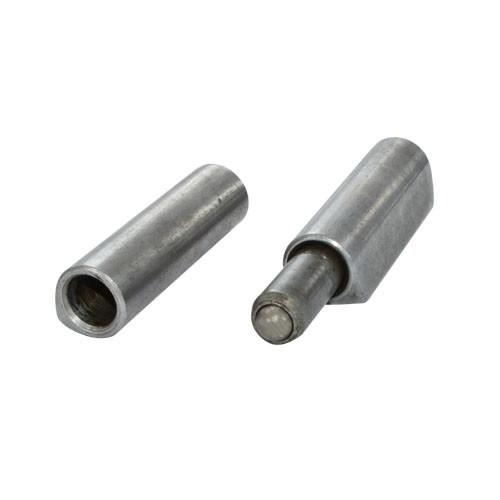

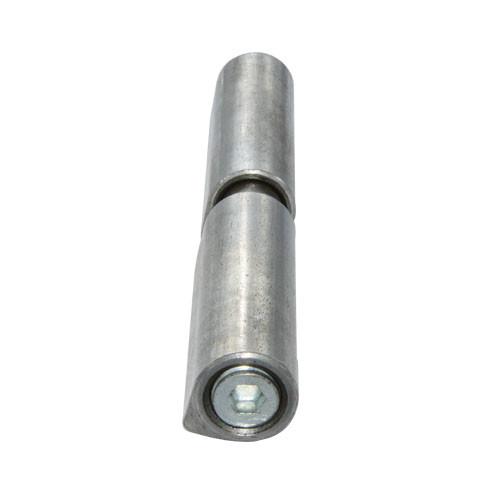

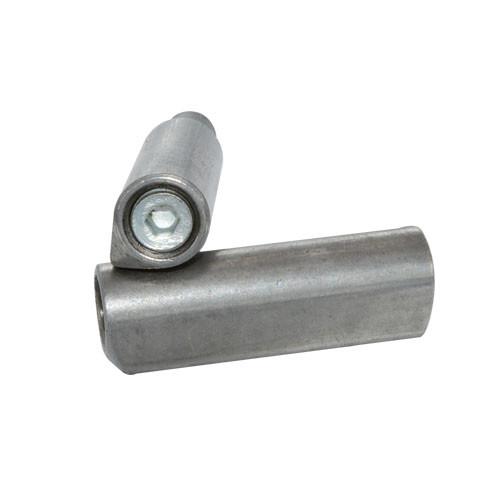

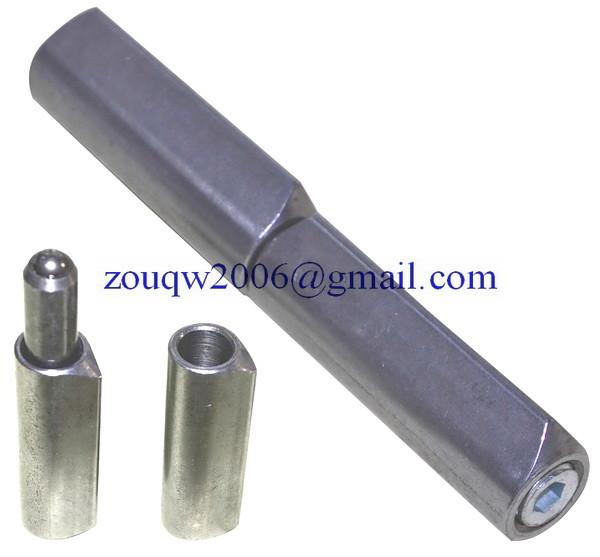

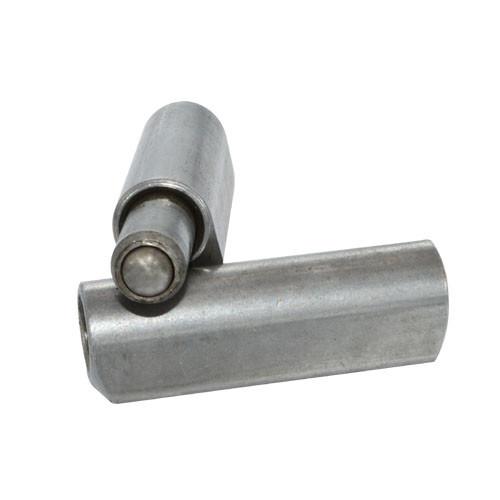

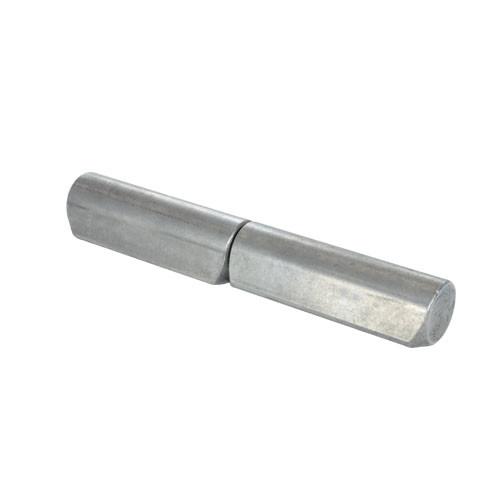

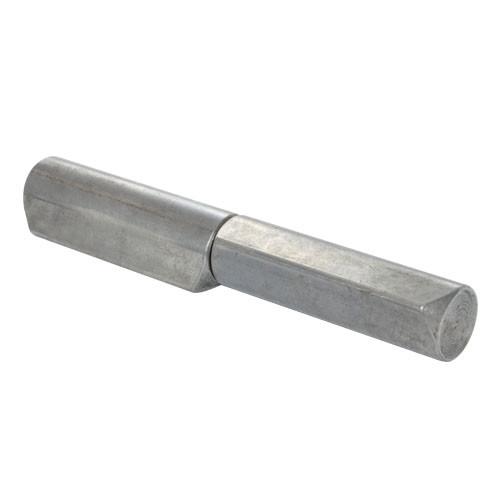

Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating
Specifications
Place of Origin :
China
Brand Name :
heavy duty hinge
Certification :
welding hinge
Model Number :
WELD ON HINGE PH607
MOQ :
3000PCS
Price :
0.1
Packaging Details :
box, carton, pallet
Delivery Time :
30-40 days after received advance payment
Payment Terms :
TT, WEST UNION
Supply Ability :
100000pcs per month
Material :
iron
finishing :
self color or zinc plating
Washer :
With a steel ball inside
size :
60-180mm
Description

The heavy duty welding hinge PH607 Information & Specifications

Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating

1. Material: Steel (drawn steel profile)

2. Finishing: Self color, zinc plating

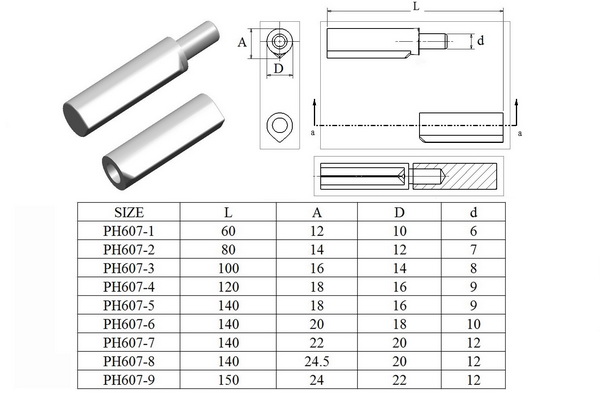

3. Size(length):60mm, 80mm,100mm,120mm,140mm, 150mm,

4. Each hinge combined 2 part and made of drawn steel profile, a steel pin which made of mild steel with a case hardened fixed, without bearing or washer, but there is a steel ball in the pin to make the hinge flexible, meanwhile, there is a hexagon socket bolt inside to adjust the position of the pin

5. it is very popular in different market, because it load high weight, also the 2 parts with the lug make the user welding on door conveniently

6. This kind of welding hinge used both for left hand and right hand.

7. One pair hinge is two hinges, ordinary for one door.

8. Widely used for gates, electrial boxes, barbeque pits, heavy machinery doors and trailers.

Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc platingPiston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating

Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc platingPiston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating

Piston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc platingPiston adjustable weld on hinge PH607, with a ball inside the pin, finishing self-color or zinc plating

MOQ 3000PCS
DELIVERY TIME 30 DAYS WHEN ORDER CONFIRMED
PAYMETN TERMS TT 30% IN ADVANCE, BALANCE BEFORE SHIPMENT

Contact: Mr. Alex

Skype: zou.alex

MSN: alexjo2006@hotmai.com

E-mail: export@risen-industry.com

Website: http://www.risen-industry.com

https://www.facebook.com/risenhardware
