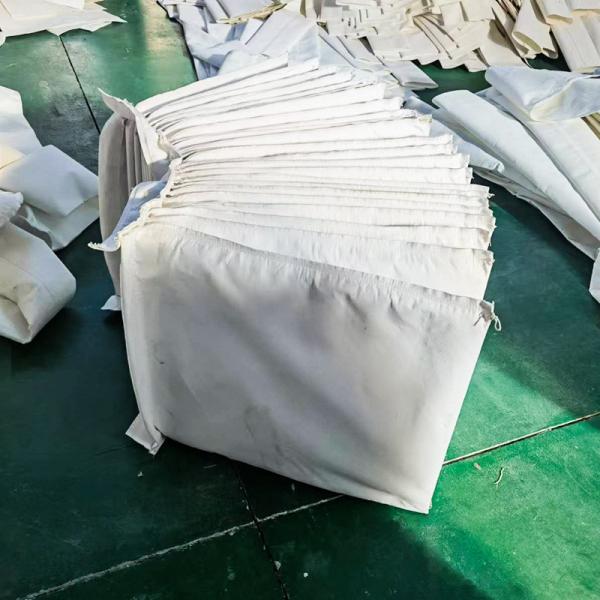

Multi-pocket industrial Nonwoven Fabric Air Pocket Filter

QUICK DETAILS:

1 - Good quality acrylic needle felt made with advanced machinery
2 - Accordingly adjusted technical process
3 - Strict raw material control and products quality control
4 - Competitive price
5. USA Standard
6. ISO certification

Introduction

Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.

Structure and application

The filter bag is made up of a woven filter material bag body and is supported by components such as a role, snap ring, clamp, and chain hoist. Other parts of the filter bag dust collector and its accessories include the venturi tube, frame, and mouth of the elastic ring.

Filter bag material

We can supply kinds of material of filter bag, the following are the main material:
1. Polyester(PET) filter bag, used in dust temperature lower 130 celsius working condition.
2. Nomex (aramid) filter bag, used in dust temperature lower 200 celsius working condition. like asphalt.
3. PTFE filter bag,used in dust temperature lower 260 celsius working condition. it can be used all working conditions.
4. Fiber glass filter bag, used in dust temperature lower 260 celsius working condition.
5. others, like P84, PPS

Specification:

Item				Unit			Parameter
Material				Face:100%PPS			Scrim:100%PPS
Grammas Per Square Meter				g/m2			550±5%
Thickness				mm			1.8±0.2
Air Permeability(200Pa)				L/dm2.min			120~150
		Cont		ºC			160
Temperature Resistance		Peaks					190
		Warp		N/50*200mm			≥900
Minimum Breaking Strength		Weft					≥1200
		Warp		%			≤30
Elongation at Break		Weft					≤50
Surface Design Treatment				Singeing,Calendering,Heat-set
Using Scope				Coal-fired power plant,Chemical industry

​

Material	fibre: PPS fibre, scrim: PPS
Weight(g/m2)	500
Air permeability(L/m²/s)	200-350
Thickness(mm)	1.7
Temperature(ºC)	continue:200, instant:230
Tensile Strength(N/5*20cm)	warp: ≥1100, welf:≥1300
Singeing,Calendering	Singeing, Calendering, heating setting

​

FAQ
1. May I get samples?
Yes,
For OEM sample, usually takes about 5~15 days, it depends on design and technique.

2. Can you make my logo on package?
Of course! You only need provide us your original logo file or clear picture, so we can make it.
3. What is the payment method?
Bank transfer (T/T), Western Union, Money gram, L/C, paypal

4. How long production takes?
It is usually in 5~7 days after getting your payment and all the details confirmed.
