PE19-17 Fluidized Bed Drying Filter Bag 500 L/hr Capacity

Specifications

MOQ :

Price :

200

Model NO. :

PE19-17

Cleaning Method :

Automated Cleaning

Filtration Capacity :

500 L/hr

Material :

Nylon, Polypropylene, PTFE, PVDF, Polyester

Operating Pressure :

200

Mesh Opening :

5micorn, 10micron

Width :

150cm

Medium Material :

Microfiber

Filtration Grade :

HEPA Filter

Filter Bag Shape :

Round Bag

Filter Bag Environment :

High-Temperature

Cartridge Installation :

Vertical Lifting

Specification :

1m x 1m x 1m

Production Capacity :

500000PCS / Week

Weight :

191 g/m2

Description

antistatic filter cloth for pharmaceutical factory

item	value
Condition	New
Warranty	6 months
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
After Warranty Service	Video technical support
Local Service Location	none
Showroom Location	none
Video outgoing-inspection	Not Available
Machinery Test Report	Not Available
Marketing Type	New Product 2020
Warranty of core components	Not Available
Core Components	Filter Bag
Place of Origin	China
	Shanghai
Brand Name	philis
Type	Pocket Filter
Usage	DUST FILTER
Material Of Bag	PE
Product Name	Fluidized Bed Drying Multi-finger Filter Bag
Material Available	Various Anti-static Filter Cloth
Application	Fluidized Bed Dryer
Size	According To Equipment Customization.
Keyword	Dryer Multi Finger Filter Bag
We are factory	YES

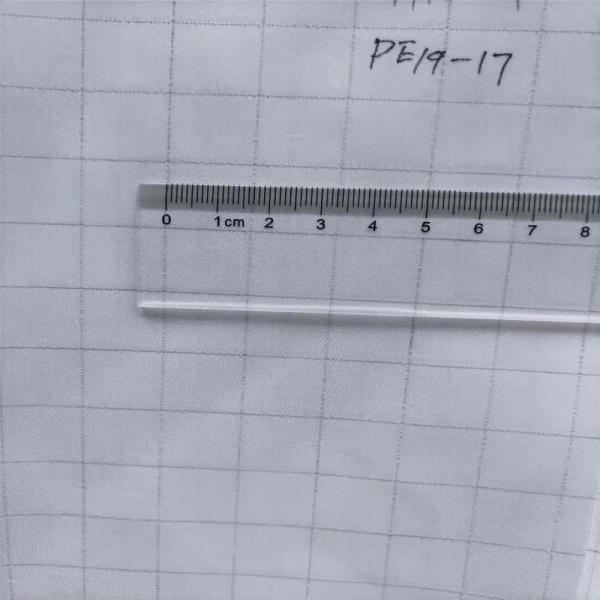

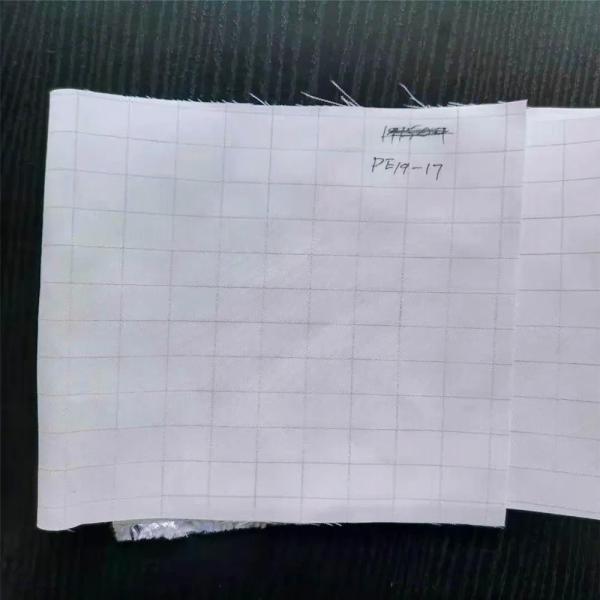

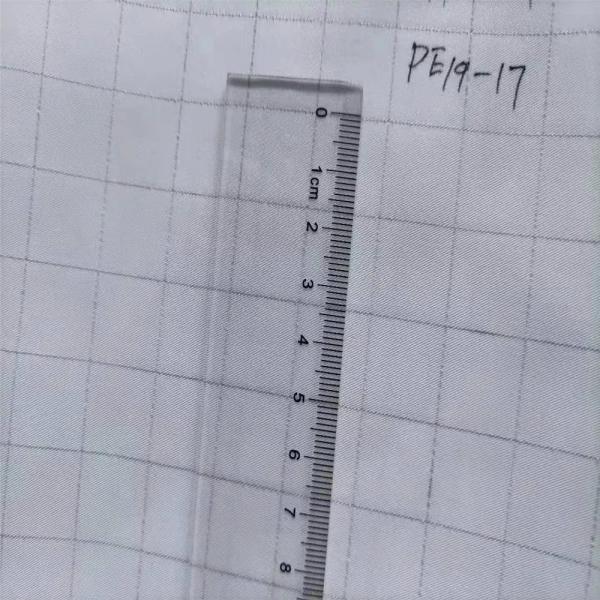

ITEM: PE19-17

PARAMETER		UNIT	INDEX
		Pa	200
		cm2	20
		#	4	4	4	4
air permeability(200Pa)		L/ m²/S	261.16	255.9	259.4	258.1	258.64
breaking strength	warp	*N/520cm**	1242.5
	weft		1570.5
breaking elongation	warp	%	42
	weft		33.4
thickness		mm	0.43
weight		g/m²	191
			5-10

Fluidized Bed Spirulina Powder Granulator cloth bag,Spirulina Powder Spray Drying cloth bag, antistatic filter cloth, drying cloth bag .
characteristic: Good air permeability, easy to clean and recyclable, meet the requirements of pharmaceutical / food industry

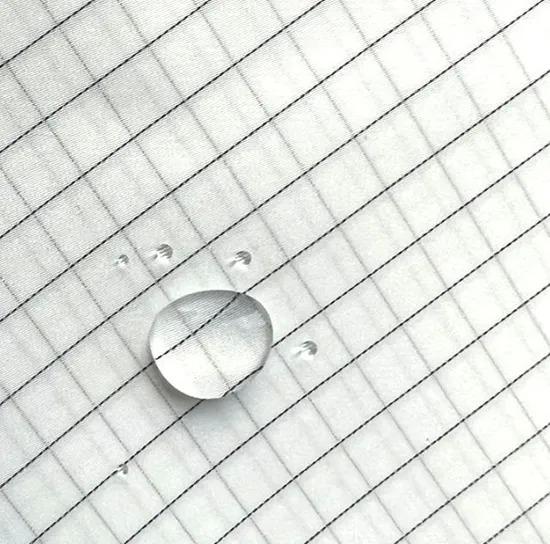

Antistatic water proof cloth bag is a cloth bag used for granulation of highly viscous materials, such as extract powder. It has the characteristics of non-stick cloth bag, good permeability, good boiling effect and so on.

FBD Finger Bag: The fluidized bed dryer filter bag is made up of different type of superior quality of fabrics, as per requirement of material involving in drying.
Different types of fabrics are:
1. Antistatic
2. Polypropylene , polyester
3. Stain
The manufacturing of fluidized bed dryer filter bag depends on required factor like retention micron, static change and air permeability.
Fluidized bed dryer filter bags are cost-efficient and durable, as those are manufactured according to the specification and are regularly tested to meet standard quality.
FBD finger bags have finger-like structures to increase their surface area and efficiency. Drying process in FBD depends upon the MOC of the finger bags. Finger bags are constructed by a combination of antistatic polymer, nylon fabric and cotton fabric.
Application: Pharmaceutical industry Chemical industry Agricultural industry Processing industry
Features of fluidized bed dryer finger bag: Excellent resistance to wear and abrasion Extremely durable construction High flow rate combination with good particle retention Increased surface area Share Tweet Share Share Pin it
