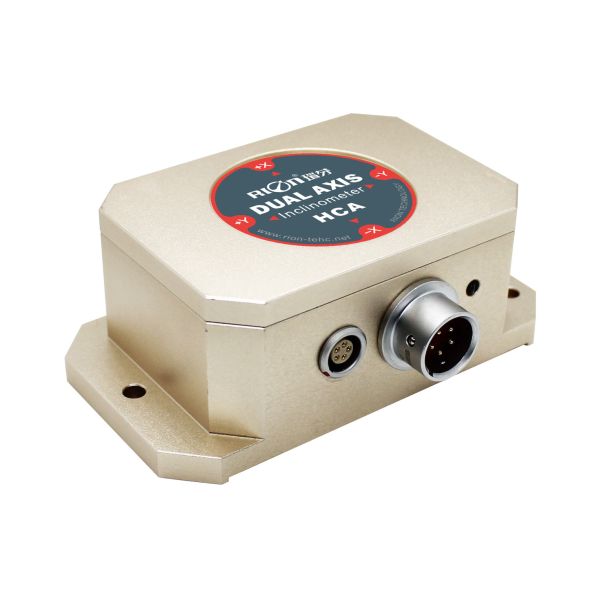

HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
Specifications
Brand Name :
Rion
Model Number :

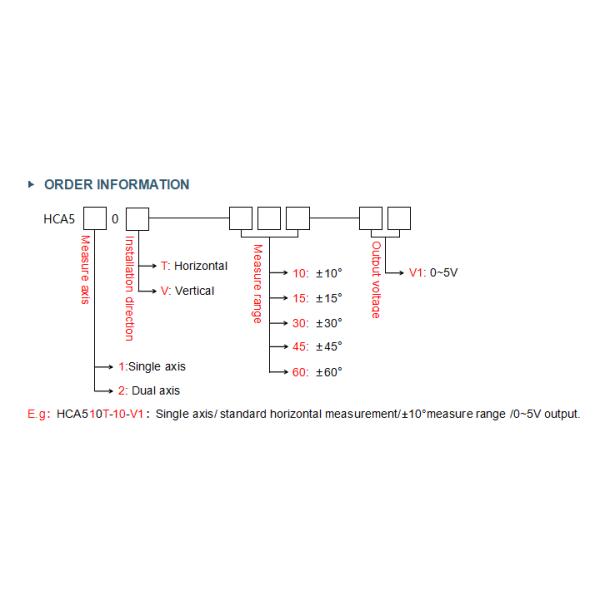

HCA510T-10-V1
Certification :
CE, ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$358.00/Pieces >=1 Pieces
Payment Terms :
T/T,Paypal
Supply Ability :
3000 Piece/Pieces per Month
Delivery Time :
7 days for samples
Packaging Details :
1pcs/box with sponge inside, 100pcs/ctn
Measure range :
±10/±30/±60°
Measure axis :
X / XY axis
Zero output :
2.5 V
Long term stability :
0.01/0.02/0.05°
Power on time :
0.5S
Response frequency :
20Hz
Protection glass :
IP67
Power supply :
9~36v
Description

HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL

▶ FEATURES

★ Single / dual axis inclination measurement

★ Range ± 1～± 60° optional

★ Accuracy:0.005°

★ Wide voltage input 9 ～ 36V

★ Output mode 0～5V

★ IP67 protection

★ Wide temperature operation -40 ～ + 85 ℃

★ High vibration resistance> 2000g

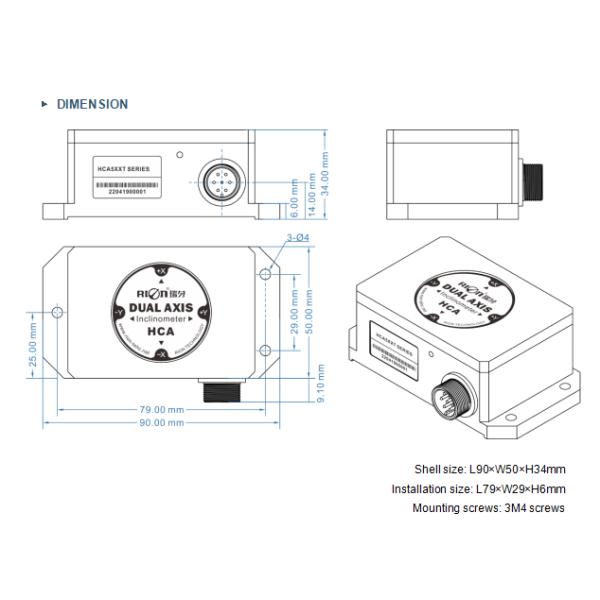

★ Small size L90mm × W50mm × H34mm (customizable)

★ High resolution 0.001 °

▶APPLICATION

★ Equipment vehicle leveling

★ Bridge and Dam monitoring

★ High-altitude platform safety protection

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig

★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle

★ Tilt monitoring of geological equipment

★ Pitch angle measurement of directional satellite communication antenna

★ Mining machinery, oil drilling equipment

★ Equipment level control

★ Alignment control , curve control


▶ INTRODUCTION

HCA510T & HCA520T is a high-precision analog voltage output single / dual axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane.

Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.

This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!

▶SPECIFICATION

HCA510&520T

CONDITION

PARAMTERS

UNIT

Measure range

±10

±30

±60

°

Measure axis

X / XY

X / XY

X / XY

axis

Zero output

0° output

2.5

2.5

2.5

V

Resolution

0.001

0.001

0.001

°

Measure accuracy

@25℃

0.005

0.01

0.02

°(RMS)

Long term stability

0.01

0.02

0.05

°

Zero Temp. coefficient

-40～85℃

±0.002

±0.002

±0.002

°/℃

Sensitivity temp. coefficient

-40～85℃

≤100

≤100

≤100

ppm/℃

Power on time

0.5

0.5

0.5

S

Response frequency

20

20

20

Hz

EMC

According to EN61000 and GBT17626

MTBF

≥50000 hours/times

Insulation Resistance

≥100MΩ

Shockproof

100g@11ms,3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms,10～1000Hz

Protection glass

IP67

Cables

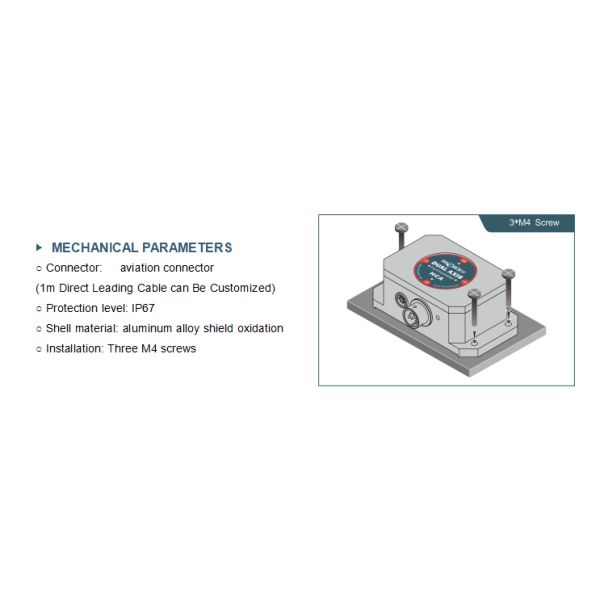

Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 5*0.4mm2 aviation connector

Weight

≤250g(without cable )


▶ ELECTRONIC CHARACTERISTICS

PARAMETERS

CONDITION

MIN

STANDARD

MAX

UNIT

Power supply

Standard

9

12,24

36

V

Working current

40

mA

Output load

Resistive

10

kΩ

Capacitive

20

nF

Working temperature

-40

+85

℃

Store temperature

-40

+85

℃
HCA510T HIGH PRECISION VOLTAGE TYPE INCLINOMETER RANGE ± 1～± 60° OPTIONAL
