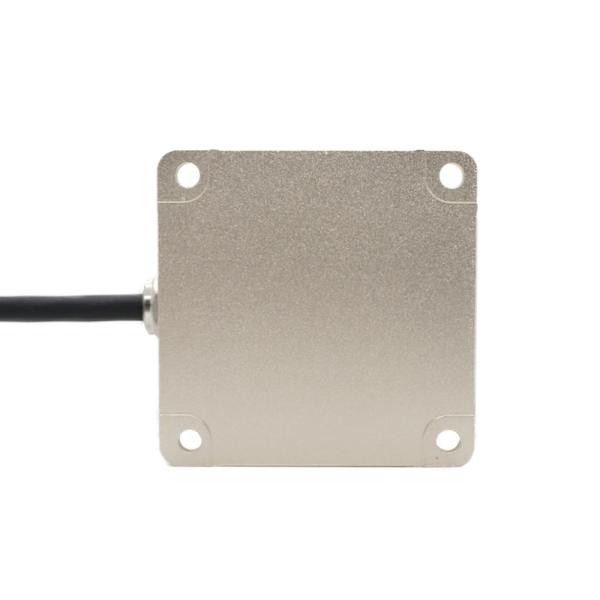

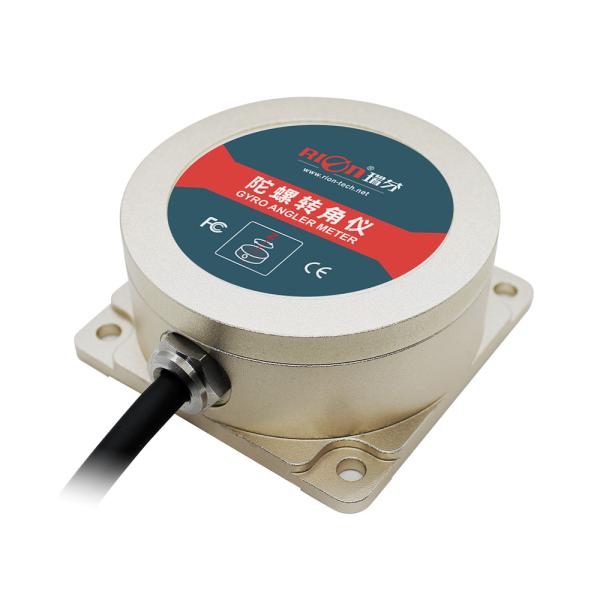

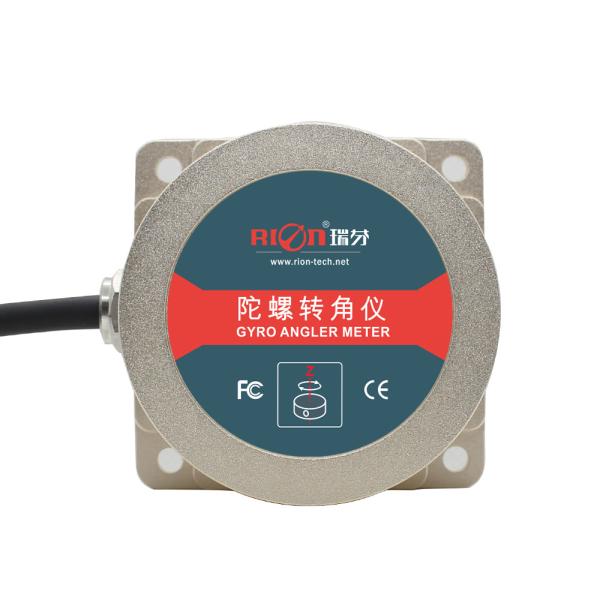

TL740D -232 AUTO SAFETY SYSTEM MEMS GYROSCOPE SENSOR LIGHT WEIGHT
TL740D -232 AUTO SAFETY SYSTEM MEMS GYROSCOPE SENSOR LIGHT WEIGHT
TL740D -232 AUTO SAFETY SYSTEM MEMS GYROSCOPE SENSOR LIGHT WEIGHT
TL740D -232 AUTO SAFETY SYSTEM MEMS GYROSCOPE SENSOR LIGHT WEIGHT
TL740D -232 AUTO SAFETY SYSTEM MEMS GYROSCOPE SENSOR LIGHT WEIGHT
TL740D -232 AUTO SAFETY SYSTEM MEMS GYROSCOPE SENSOR LIGHT WEIGHT
Specifications
Brand Name :
Rion
Model Number :
TL740-232
Certification :
CE, ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$235 USD
Payment Terms :
T/T,Paypal
Supply Ability :
3000 Piece/Pieces per Month
Delivery Time :
7 days for samples
Packaging Details :
1pcs/box with sponge inside, 100pcs/ctn
Usage :
Position Sensor
Theory :
Other
Output :
Digital Sensor
Item :
Gyro heading sensor
Dimension :
60 x 59 x 25.5mm
Weight :
160g
Connector :
RS232/RS485
Power supply :
9~36v
MTBF :
>50000 hours/times
azimuth accuracy :
0.1deg
water proof :
IP67
Port :
Shenzhen
Description

TL740D -232 AUTO SAFETY SYSTEM MEMS GYROSCOPE SENSOR LIGHT WEIGHT



▶ KEY FEATURES

★ relative heading angle output

★ Strong vibration resistance

★ Light weight

★ Long life,strong stability

★ Cost-effective

★ All solid state

★ Compact & light design

★ RS232/RS485/TTL output optional

★ DC9~36V power supply



▶ APPLICATION

★ AGV truck

★ Car Navigation

★ 3D virtual reality

★ Platform stability

★ Auto safety system

★ Turck-mounted satellite antenna equipment

★ Industrial control



▶ GENERAL DESCRIPTION

The TL740D is a newly developed horizontal relative heading angular gyro sensor built on the latest MEMS inertial measurement platform. By applying a dynamic attitude algorithm to gyroscope angular velocity, it can output the carrier’s relative heading angle in real time. The integrated inertial navigation algorithm, through attitude angle data fusion, effectively reduces short-term gyro drift.

Designed for applications such as robot cars, AGV vehicles, UAV attitude control, and similar fields, the TL740D replaces the limitations of traditional magnetic bar guidance. It eliminates the need for on-site magnetic stripe layouts, making it a key navigation component for the next generation of autonomous robot vehicles.


▶ SPECIFICATIONS


TL740D

Parameters

Measuring range

relative heading Angle (±180°)

Acquisition bandwidth

>100Hz

Resolution

0.01°

positional accuracy

<2mm/m (converted from angle accuracy)

Nonlinear

0.1% of FS

Gyroscope zero bias stability (10s smooth)

10°/h

Max angle rate

150°/s

Acceleration range

±4g

Acceleration resolution

0.001g

Acceleration accuracy

5mg

Starting time

5s(Static)

Input Voltage

DC9V~36V

Current

60mA(12V)

Working Temp.

-40 ~ +85℃

Storage Temp.

-40 ~ +85℃

Vibration

5g~10g

Impact

200g pk,2ms,½sine

Working life

10 years

Output rate

5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set

Output signal

RS232 / RS485 / TTL (Optional)

MTBF

≥98000 hours /times

Insulation resistance

≥100 Megohm

Impact resistance

100g@11ms / 3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms / 10~1000Hz

Protecting

IP67

Weight

≤170g (including 1 meter cable)
