High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
Specifications
Usage :
Level Sensor
Tilt sensor Best accuracy :
<0.001°
angular resolution :
0.0005°
protection class :
IP54
Maximum measurement range :
±30°
working temperature :
-10°~ +70℃
Angle Resolution :
0.001°
High Vibration Resistance :
> 2000g
Power :
3.7V Chargeable lithium battery
Wide Voltage Input :
DC9-36V
Output Interface :
RS232/RS485/RS422/TTL
Update Rate :
10Hz
Insulation Resistance :
≥100MΩ
Measure Range :
±1~±90° optional
Brand Name :
RION
Model Number :
DMI850
Certification :
CE, RHOS
Place of Origin :
China
MOQ :
1
Price :
$2,345.00/Units
Payment Terms :
T/T， Paypal
Supply Ability :
100 pcs/month
Delivery Time :
10 days for samples
Packaging Details :
1pcs digital compass in each inner box , 200pcs /ctn
Description
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement

PRODUCT DESCRIPTION


Ultra High Resolution mm MEMS Magnetic Based Digital Tilt Sensor
▶ PRODUCT DESCRIPTION
DMI850 is one Single axis Digital Inclinometer developed by RION company based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current current and signal ratio of inclination , can meet the highest level accuracy of 0.001 degrees, the resolution is up to 0.0005 degrees. Battery continuous working time up to 6 hours；It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.

▶ KEY FEATURES
* Best accuracy:<0.001°
* Angular resolution:0.0005°
* IP54 protection class
* Maximum measurement range:±30°
* Absolute / relative measurement switchable
* data storage function

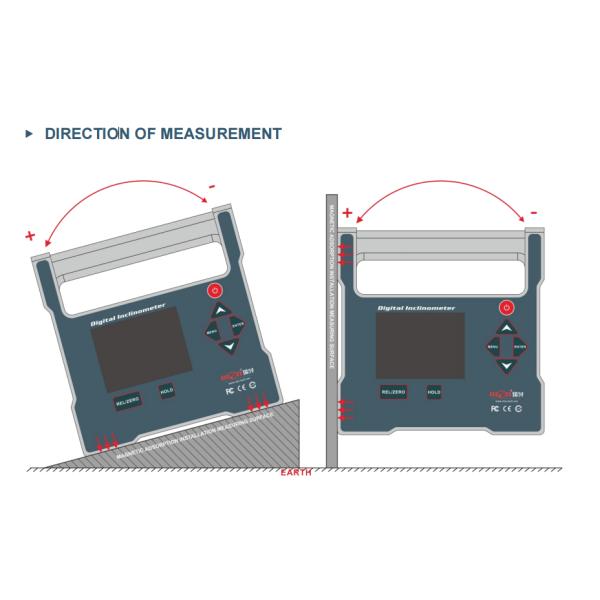

* Both side and bottom can be measured
* working temperature -10°～ +70℃
* Double benchmarkstrong magnet installation
* Alarm angle can be set
* Automatic angle interpolation compensation function

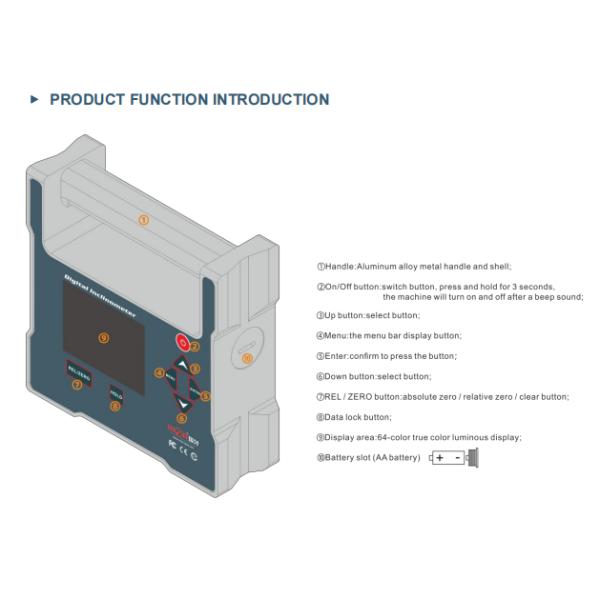

* Night vision four color screen
* Customers can calibrate the zero point by themselves
* Angle or length double unit switch
* 2 kinds of measurement mode selectable (radian, angle, mm)


▶ APPLICATION RANGE
* Building construction
* Automotive four-wheel inspection
* Road slope
* Mechanical installation
* Pipe installation
* Industrial platform
* Pan-tilt angle detection
*Turntable detection
*Production fixture
* Medical instruments
Measuring range
±30
°
Measuring axis
Single-axis
Best accuracy
<0.002(＜5°),<0.003 (5°-30°)
°(RMS)
Resolution
0.0005
°
2 Type modes
Two modes can be set: degree, mm / m
LCD
64 color true color luminous display
LCD visiable size
L60*W45
mm
Operating temperature
-10°～ +70℃
°/℃
Working humidity
85
%RH
Power supply
2Pcs AA battery
Battery continuous working time
6
h
Anti-viration
10g @ 11ms, triaxial and same (half sine wave)
g
Impact resistance
10grms,10～100Hz
Weight
1200g
Protection glass
IP54
Material
Anodizing of aluminum alloy

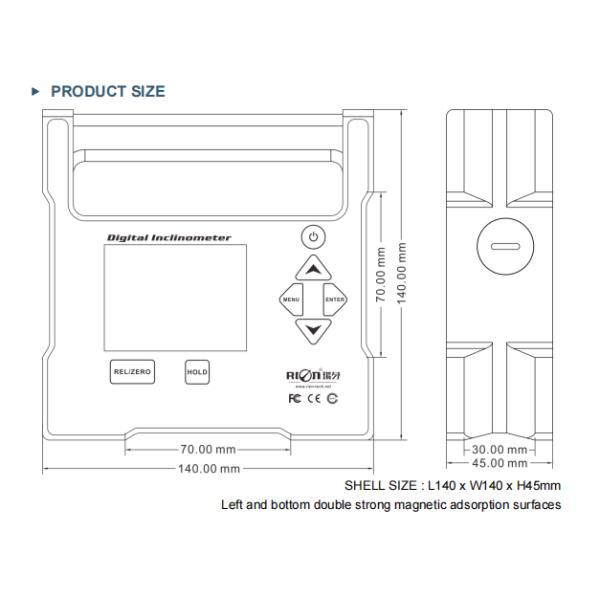

Size
L140*W140*H45mm

High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement
High Accuracy Digital Inclinometer The State-of-the-Art Tool for Angle Measurement

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
