Description
IMU100-BL: Wearable AHRS IMU Gyroscope with 9-Axis Sensor & Bluetooth 5.1
The IMU100-BL is a cost-effective Attitude and Heading Reference System designed for dynamic applications including model aircraft, drones, robots, agricultural machinery, and engineering vehicles.
Product Overview
This advanced IMU collects sensor data, integrates Kalman filtering, and outputs real-time attitude data. Utilizing three-axis accelerometers, gyroscopes, and magnetic sensors with temperature compensation, the device ensures excellent stability and real-time performance.
The IMU100-BL provides comprehensive attitude data along with 9-axis measurements (acceleration, gyroscope, and magnetic field). It supports both USB2.0 and Bluetooth 5.1 wireless output with a range up to 40 meters and maintains user settings after power loss through on-chip flash IAP technology. Additional features include adaptive frequency hopping for reliable communication and multi-device networking for flexible industrial deployment.
Key Features
• Integrated nine-axis sensor and temperature sensor
• Bluetooth 5.1 wireless transmission
• Kalman filtering algorithm
• High performance drift stability
• DC 3.0-4.2V power supply
• Light weight design
• Long life with strong stability
• Excellent vibration performance
• 100Hz update rate
• Compact and lightweight construction
• USB2.0 output interface
• Wide temperature range operation
• Low noise performance
• Real-time 3D dynamic measurement
Applications
• Medical rehabilitation equipment monitoring
• Limb rehabilitation monitoring
• Human body capture systems
• Posture angle monitoring
Technical Specifications
Parameter Specifications
Azimuth
Measuring Range ±180° (optional for gyro and magnetic azimuth)
Measurement Accuracy (RMS) @ 25℃ < 1.5° (without magnetic interference)
Resolution < 0.1°
Inclination
Measuring Range Roll ±180°, Pitch ±90°
Measurement Accuracy (RMS) @ 25℃ < ±0.5° (dynamic), < ±0.2° (static)
Resolution < 0.1°
Gyroscope
Measuring Range ±500°/sec
Zero Deviation Stability @ 25℃ < 20°/hr
Resolution < 0.1°/sec
Bandwidth > 100Hz
Accelerometer
Measuring Range ±8g
Resolution < 10mg
Bandwidth > 100Hz
Magnetic Field Meter
Measuring Range ±8gauss
Resolution < 2.5mgauss
Bandwidth 14-17Hz
Electrical Connection
Supply Voltage DC 3.0-4.2V
Power Consumption 50mA (typical)
Output Interface USB2.0
Operating Temperature -5℃ to 55℃
Storage Temperature -10℃ to +55℃
MTBF ≥ 98,000 hours/time
Impact Resistance 100g @ 11ms, triaxial (half sine wave)
Vibration Resistance 10grms / 10-1000Hz
Waterproof Grade IP65
Connector Type-C connector
Weight ≤ 35g (excluding cable)

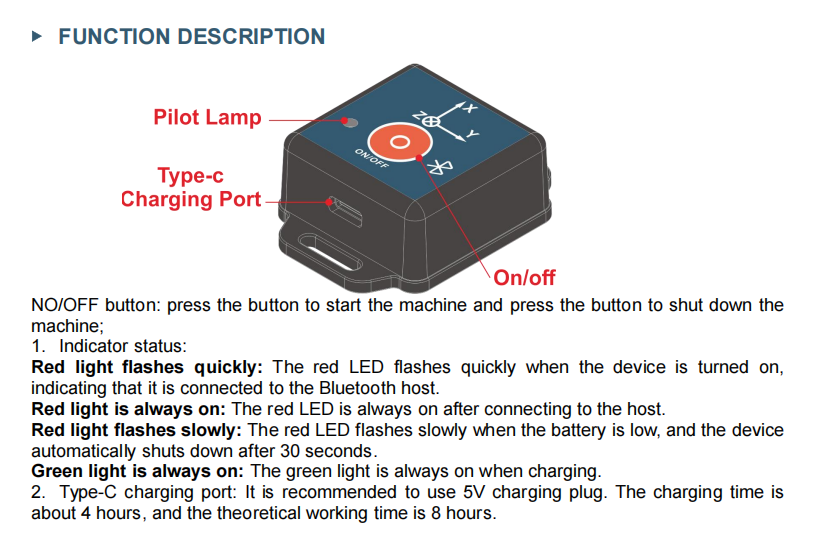

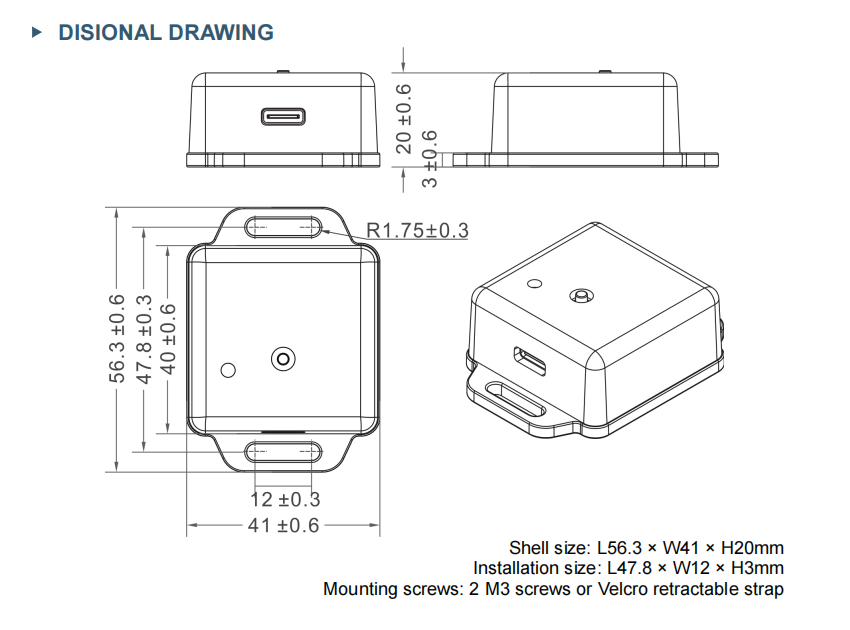

Product Images
IMU100-BL: Wearable 9-Axis Sensor AHRS with Bluetooth 5.1 and 100Hz Update Rate IMU100-BL: Wearable 9-Axis Sensor AHRS with Bluetooth 5.1 and 100Hz Update Rate IMU100-BL: Wearable 9-Axis Sensor AHRS with Bluetooth 5.1 and 100Hz Update Rate
