WCA300M Single-Axis Tilt Sensor with 0~360° Range 0.1° Resolution and ±0.2° Accuracy for Solar Photovoltaic Tracking
WCA300M Single-Axis Tilt Sensor with 0~360° Range 0.1° Resolution and ±0.2° Accuracy for Solar Photovoltaic Tracking
WCA300M Single-Axis Tilt Sensor with 0~360° Range 0.1° Resolution and ±0.2° Accuracy for Solar Photovoltaic Tracking
WCA300M Single-Axis Tilt Sensor with 0~360° Range 0.1° Resolution and ±0.2° Accuracy for Solar Photovoltaic Tracking
WCA300M Single-Axis Tilt Sensor with 0~360° Range 0.1° Resolution and ±0.2° Accuracy for Solar Photovoltaic Tracking
WCA300M Single-Axis Tilt Sensor with 0~360° Range 0.1° Resolution and ±0.2° Accuracy for Solar Photovoltaic Tracking
Specifications
Brand Name :
RION
Model Number :
WCA300M
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
1
Price :
$3.80/Pieces
Payment Terms :
T/T,paypal
Supply Ability :
3000/month
Delivery Time :
2 work days
Packaging Details :
carton packing
Range :
0~360°
Resolution :
0.1°
Measure Accuracy(RMS) :
±0.2°
Operating temperature :
-40℃~80℃
Output Interface :
3.3V TTL
Output load :
＞500 ohm
operating hours :
50000 hours / time (no failure)
Anti-vibration :
10grms、10~1000Hz
Description
WCA300M SINGLE-AXIS TILT SENSOR FOR SOLAR PHOTOVOLTAIC TRACKING SYSTEMS
PRODUCT INTRODUCTION
The WCA300M single-axis inclination module is a newly developed, cost-effective tilt sensor designed for high stability and reliability. It features:
  • Advanced anti-jamming platform with micro-mechanical sensing unit
  • Wide temperature adaptability and superior vibration resistance
  • Long-term operational stability with service life up to 10 years
  • Strict factory calibration to eliminate zero-bias, cross-axis, and linearity errors
  • Tape-and-reel packaging supporting automatic SMT placement


MAIN FEATURES
  • Resolution: 0.1°
  • Wide Measuring Range
  • Output Interface: TTL
  • Operating Voltage: DC 3.3-7V
  • Excellent Full-Temperature Performance
  • High Vibration Resistance: >100g
  • Operating Temperature Range: -40°C ~ +85°C


APPLICATIONS
  • Solar Photovoltaic Tracking Systems
  • Wind Deviation Monitoring
  • Vertical Alignment Control
  • Woodworking Machinery
  • Construction Tower Cranes
  • Medical Beds
  • Electric Vehicle Control Systems


SPECIFICATION PARAMETERS
WCA300M CONDITION PARAMETER UNIT
Range SINGLEAXIS 0~360 °
Resolution
0.1 °
Measure Accuracy(RMS) 25° ±0.2 °
Temp. Drift Characteristics -40℃~80℃ ±0.2 °/℃
Response Time NO FILTERING 0.1 S
Zero deviation
±0.1 °
Static operating current DC 5V 10 mA
Power on time 1s
Operating Voltage DC 5V(Recommended value)
Operating temperature -40~85℃
Output Interface 3.3V TTL
Output load ＞500 ohm
operating hours 50000 hours / time (no failure)
Anti-vibration 10grms,10~1000Hz
Impact resistance 100g @ 11ms, 3 Axial Direction (Half Sinusoid)

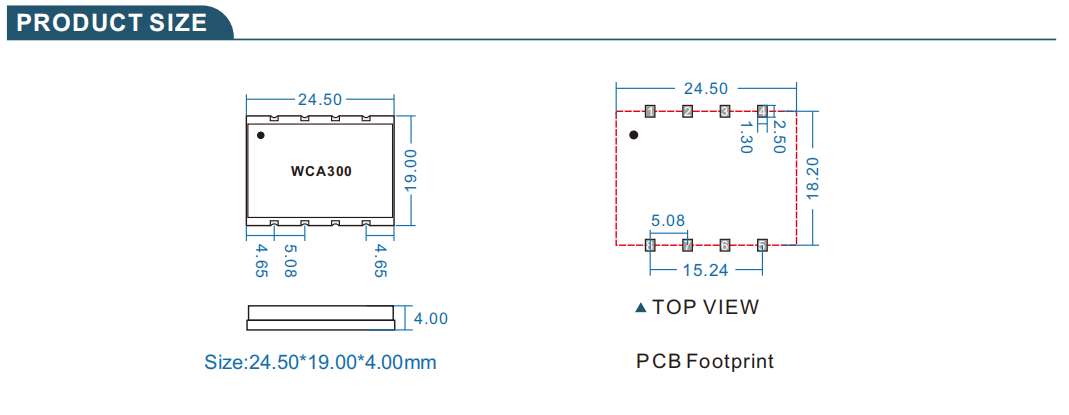

Weight 30g
