BDA446 Bluetooth 5.1 Dynamic Attitude Sensor with 9-Axis IMU and 40m Transmission for Industrial Machinery
BDA446 Bluetooth 5.1 Dynamic Attitude Sensor with 9-Axis IMU and 40m Transmission for Industrial Machinery
BDA446 Bluetooth 5.1 Dynamic Attitude Sensor with 9-Axis IMU and 40m Transmission for Industrial Machinery
BDA446 Bluetooth 5.1 Dynamic Attitude Sensor with 9-Axis IMU and 40m Transmission for Industrial Machinery
BDA446 Bluetooth 5.1 Dynamic Attitude Sensor with 9-Axis IMU and 40m Transmission for Industrial Machinery
BDA446 Bluetooth 5.1 Dynamic Attitude Sensor with 9-Axis IMU and 40m Transmission for Industrial Machinery
Specifications
Brand Name :
RION
Model Number :
BDA446
Certification :
CE, FCC , ROHS
Place of Origin :
China
MOQ :
1
Price :
$170.00/Pieces
Payment Terms :
T/T,paypal
Supply Ability :
1000/month
Delivery Time :
5~8 work days
Packaging Details :
carton packing
Measure range :
Roll±180°, pitch±90°, azimuth±180° (initial value at power-down is 0°)
Measure axis :
X axis / Y axis / Z axis
Roll&Pitch Static accuracy1) :
±0.05°
Roll&Pitch Dynamic accuracy(rms) :
±0.1°
Electromagnetic compatibility :
According to EN61000 and GBT17626
Response time :
0.01S
waterproof rating :
IP67
weight :
≤ 570g (excluding cable)
Description
BDA446 Bluetooth Dynamic Attitude Sensor.pdf
PRODUCT DESCRIPTION
BDA446 is a cost-effective Bluetooth 5.1 dynamic attitude sensor integrating a 9-axis IMU and temperature sensor. It adopts Kalman filtering to provide stable, real-time attitude, acceleration, and gyroscope data. With BLE wireless output, 2.4 GHz adaptive frequency hopping, and up to 40 m transmission, it supports wireless DFU upgrades and parameter configuration. It is suitable for model aircraft, robots, agricultural machinery, construction vehicles, forklifts, and other platforms requiring high-dynamic attitude monitoring.
MAIN FEATURES
  • Integrated nine axis sensor and temperature sensor
  • Low noise
  • Bluetooth 5.1 wireless transmission
  • Kalman filtering algorithm
  • DC 3.0-4.2V battery power supply
  • Real time 3D dynamic measurement
  • Maximum update rate of 100Hz
  • High performance drift stability
  • Long lifespan, strong stability

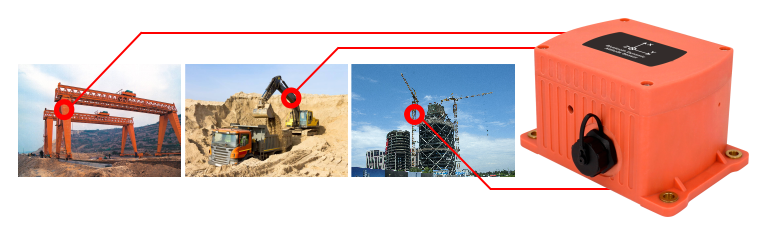

APPLICATION FIELD
  • Cranes and construction machinery
  • Mobile machinery
  • Agricultural machinery
  • Mobile elevators and fire trucks
  • Elevated platforms
  • Robot applications
  • Automatic Guided Vehicles (AGV)
  • Automatic assembly machinery
  • Boring and drilling applications
  • Leveling and flattening
