ACA610T / ACA620T-N High Precision MEMS Inclinometer Sensor Single and Dual Axis Analog Voltage Tilt Sensor
ACA610T / ACA620T-N High Precision MEMS Inclinometer Sensor Single and Dual Axis Analog Voltage Tilt Sensor
ACA610T / ACA620T-N High Precision MEMS Inclinometer Sensor Single and Dual Axis Analog Voltage Tilt Sensor
ACA610T / ACA620T-N High Precision MEMS Inclinometer Sensor Single and Dual Axis Analog Voltage Tilt Sensor
Specifications
Temperature drift :
0.0005°/℃
Voltage input :
11.5~36V
Delivery Time :
1~2 weeks
Payment Terms :
T/T
Supply Ability :
1000/month
MOQ :
1
Response frequency :
20Hz
Price :
$450/Pieces
Measure range :
±1~±90° optional
Place of Origin :
China
Accuracy :
0.003°
Model Number :
ACA610T / ACA620T
Insulation Resistance :
≥100MΩ
Packaging Details :
carton packing
Certification :
CE, FCC , ROHS
Brand Name :
RION
Description

ACA610T ACA620T-N HIGH ACCURACY VOLTAGE TILT SENSOR.pdf


GENERAL DESCRIPTION


 ACA610T/ACA620T-N is a single/dual axis inclinometer with full temperature compensation analog voltage output. The product uses a high-precision 24 bit A/D differential converter internally to ensure the linearity of the output voltage signal. Users do not need to make linearity corrections later on, and it is ready to use, stable and reliable. ACA610T/ACA620T-N has a competitive advantage among domestic peers due to its system integration of high-resolution temperature sensors, combined with MCU central processing system for secondary temperature compensation. The full temperature zero drift can be controlled at 0.0005 °/℃, and the measured accuracy of small range at room temperature can reach 0.003 ° C.The non-contact installation feature makes ACA610T/ACA620T-N have good system integration. Simply fix the sensor on the surface of the object being measured with screws, and the posture and inclination angle of the object can be automatically calculated. The operation is simple and the installation is convenient. MEMS technology production is widely used in the industrial field due to its small size, strong resistance to external electromagnetic interference, and strong ability to withstand impact and vibration.

▶ FEATURES


★ Single / Dual axis inclination measurement

★ Measure Range :±1~±90° optional

★ Accuracy: 0.003°

★ Wide voltage input: 11.5~36V

★ Wide temperature working: -40~+85℃

★ IP67 protection grade

★ Highly anti-vibration performance >2000g

★ High Resolution: 0.0007°

★ Temperature drift 0.0005°/℃

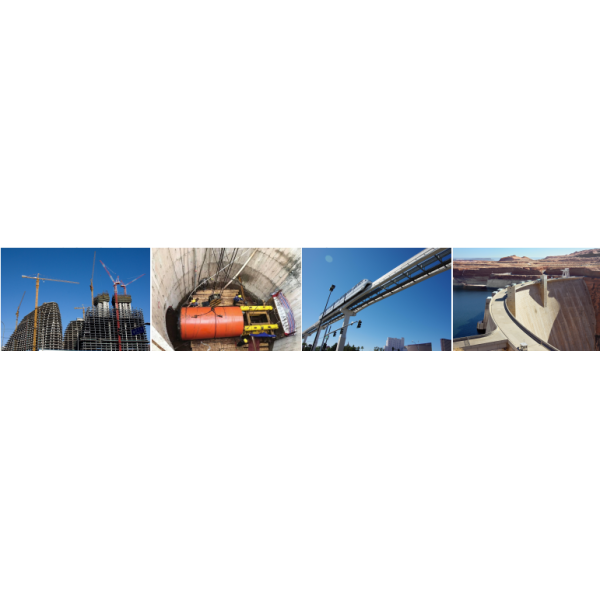

▶ APPLICATION


★ Engineering vehicles automatic leveling

★ Bridge & dam detection

★ Precision instrument level control

★ Medical facilities angle control

★ Underground drill posture navigation

★ Direction measurement based on inclination

★ Geological equipment inclined monitoring

★ Railway gauging rule , gauge equipment leveling


ACA610T / ACA620T-N High Precision MEMS Inclinometer Sensor Single and Dual Axis Analog Voltage Tilt Sensor


▶ SPECIFICATIONS

ACA610T/620T-N

Conditions

Parameters

Unit

Measure range

±10

±30

±60

±90

°

Measure axis

X Y

X Y

X Y

X Y

axis

Zero output

0° output

2.5

2.5

2.5

2.5

V

Resolution

0.0007

0.0007

0.0007

0.0007

°

Measure accuracy

MAXE

Room temp.

0.003

0.01

0.02

0.03

°

RMSE

Room temp.

0.003

0.003

0.005

0.008

°

Zero Temp. coefficient

-40～85℃

0.0005

0.0005

0.0005

0.0005

°/℃

Sensitivity temp-coefficient

-40～85℃

≤50

≤50

≤50

≤50

ppm/℃

Power on time

0.5

0.5

0.5

0.5

S

Response frequency

20Hz

EMC

According to EN61000 and GBT17626

MTBF

≥98000 hours/times

Insulation Resistance

≥100MΩ

Shockproof

100g@11ms,3 axial direction (half sinusoid)

Anti-vibration

10grms,10～1000Hz

Protection grade

IP67

Cables

Aerospace plug ST1214-P7 square flange male socket connector, 2-meter long/wear-resistant/wide temperature/shielded cable,

wire weight ≤ 200g

Weight

≤260g(without cable )

Resolution: refers to the sensor in measuring range to detect and identify the smallest changed value.

MAXE: refers to the biggest error of the product within the range and at multiple angle points.

RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).

Zero Temp. Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.

Sensitivity Temp. Drift Coefficient: The percentage change rate with tempe. of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temp. range.

▶ ELECTRONIC CHARACTERISTICS


PARAMETERS

CONDITIONS

MIN

STANDARD

MAX

UNIT

Power supply

Standard

11.5

12

24

36

V

Working current

40

mA

Output overload

Resistive

10

kΩ

Capacitive

20

nF

Working temp.

-40

+85

℃

Store temp.

-40

+85

℃
