Specifications
Brand Name :
RION
Model Number :
DMI810-15
Certification :
CE, RHOS
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$498.00/Pieces
Payment Terms :
T/T,Paypal
Supply Ability :
3000/month
Delivery Time :
1~2 weeks
Packaging Details :
1pcs digital inclinometer in each plastic box with safe sponge inside
digital inclinometer accuracy :
<0.02°
Repeatability :
0.003°
Angle range :
single axis +/-90deg
Measure range :
±15° / ±30°
Working Temperature :
-10°~ +70℃
Three mode :
radian, angle, mm/m
Accuracy :
<0.005°
Resolution :
0.001°
Measure Axis :
single axis / dual axis
Measure mode :
angle, degree/minute/second, mm/m
Material :
Aluminum Alloy
Size :
L 109*W 77*H 27 mm
Description

DMI810 DMI820 DIGITAL DISPLAY INCLINOMETER.pdf


▶ GENERAL DESCRIPTION

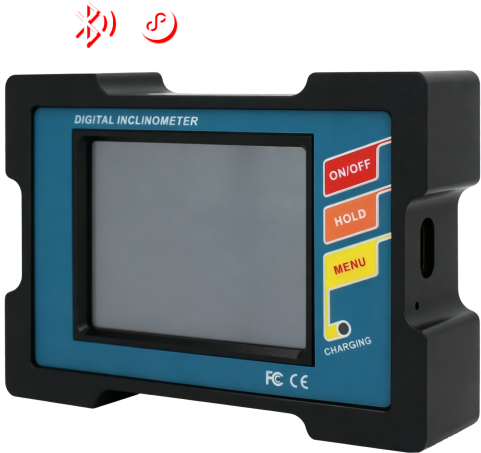

DMI810/DMI820 is a digital display inclinometer. Its core adopts a micro-mechanical control principle and a dual-core measurement unit. During measurement, it can use the Y-axis to compensate the X-axis, then applies a patented interleaved algorithm and a temperature compensation model algorithm to fully leverage the absolute operational advantages of micro-mechanical electronic principles, ensuring long-term measurement stability and repeatability. It supports single-axis and dual-axis measurement, with a measurement range of ±30°, resolution of 0.001°, and highest accuracy <0.005° (full scale). It features fast response and stable data. The product is specially designed with magnetic adsorption mounting on the sides and bottom; both side reference surfaces can be used for normal measurement, making it very convenient.


▶ FEATURES


★ Best accuracy:<0 .005°

★ Repeatability:0.003°

★ Angle resolution:0.001°

★ Maximum measure range:±30°

★ User can set the alarm value by himself

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Double benchmark strong magnet installation

★ Working Temperature :-10°～+70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate ZERO by himself

★ Built-in rechargable industry batteries

★ Night vision fours colors screen

★ IP54 protection class

★ °/mm/m Dual units switch function

★ Filter frequency optional

★ Three kinds of measurement mode selectable (radian,angle,mm)


▶ APPLICATION


★ Building construction Machinery installation Turntable testing

★ Automobile four-wheel testing

★ Piping installation

★ Pan unit angle detection

★ Road slope

★ Industrial platform

★ Production jig

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Pan unit angle detection

★ Production jig

★ Medical instruments



▶ SPECIFICATIONS


Measuring Axis

Single Axis

Dual Axis

Axis

Angle Measuring Range

±15 °

±30 °

±15 °

±30 °

°

Angle Measurement Accuracy(Full Range)

<0.005

<0.01

<0.005

<0.01

°

Angle Measure Resolution

0.001

0.001

0.001

0.001

°

Mm/m Measure Range

267

577

267

577

mm/m

Mm/m Measure Accuracy

0.1

0.2

0.1

0.2

mm/m

Mm/m Measure Resolution

0.02

0.02

0.02

0.02

mm/m

Repeatability

0.003

0.003

0.003

0.003

°

Measurement Mode

Angle, Degree/Minute/Second, Mm/m Three modes

can be set

Working Temperature

-10°~ +70℃

Working Humidity

85%RH

Power Supply

3.7V Charging Lithium Battery

Ideal Charging Time

5h

Battery Continuous Working Time

11h

Equipped With PC Software

VC Software

Data Output Signal

USB2.0 (Virtual Serial Device)

Connect Plug In

Standard USB Connector, Rechargeable

Shock Resistance

10g@ 11ms ,3 Axial Direction (Half Sinusoid)

Shock Impact

10grms ,10~ 100Hz

Waterproof Grade

IP54

Material

Aluminum Alloy Anodizing

LCD

64 True Colors Night Vision Display Screen

LCD Visible Area Size

L57.6*W43.2mm

Size

L109*W77*H27mm

Weight

≤350g
