FCA716/FCA726 High Accuracy Dual Axis MEMS Inclinometer Sensor with RS485 Output for Structural Monitoring
FCA716/FCA726 High Accuracy Dual Axis MEMS Inclinometer Sensor with RS485 Output for Structural Monitoring
Specifications
Delivery Time :
5~8 work days
Payment Terms :
T/T
Packaging Details :
carton packing
Resolution :
0.001 °
MOQ :
1
Price :
$225/Pieces
wide voltage input :
DC 9 ~36V
Accuracy :
0.008°
Model Number :
FCA716/FCA726
Place of Origin :
China
Supply Ability :
1000pcs/month
Range optional :
±1 ~±180 °
Certification :
CE, FCC , ROHS
Brand Name :
RION
Description

FCA716 FCA726 HIGH ACCURACY INCLINOMETER.pdf

GENERAL DESCRIPTION

FCA716/FCA726 is a small volume high-precision single /dual-axis inclinometer developed by RION Technology for industrial field control.It adopts RS485 /RS232 serial access interface. Built-in high-precision 24bit A /D differential converter,through the 5th order filtering algorithm ,can measure the tilt and pitch angle of the sensor output relative to the horizontal plane.The product integrates the latest technolog-y MEMS tilting unit,the measuring range up to ±180°,and the full-scale accuracy is 0.01 °,which can easily achieve dual-axis and single-axis tilt measurement.The product belongs to a real industrial grade product,with reliable and stable performance,good scalability,and multiple output options.It is suitable for the application of monitoring of ancient buildings dilapidated buildings ,ancient walls ,etc.,and large-scale high-precision measurement in industrial sites.

FEATURES
  • Single /dual axis inclination measurement
  • Accuracy:0.008°
  • Wide temperature operation -40 ~+85 ℃
  • IP67 protection grade
  • Aviation connector
  • Range ±1 ~±180 °optional
  • DC 9 ~36V wide voltage input
  • Resolution 0.001 °
  • High vibration resistance>100g
APPLICATION
  • Bridge and dam monitoring
  • Wind turbine wind tower tilt monitoring
  • Engineering vehicle leveling
  • Angle control of medical equipment
  • Railway gauge and gauge leveling
  • Attitude navigation of underground drilling rigs
  • Geological equipment tilt monitoring
  • Mining machinery,oil drilling equipment
  • Pitch angle measurement of directional satellite communication antennas

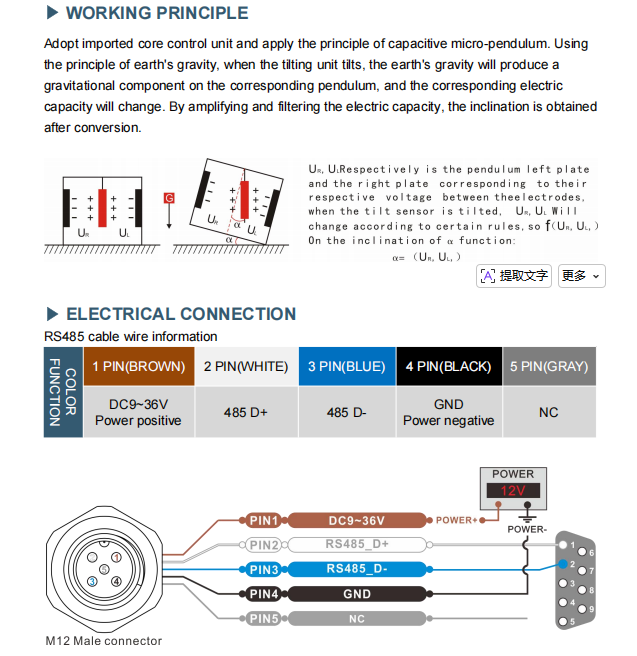

FCA716/FCA726 High Accuracy Dual Axis MEMS Inclinometer Sensor with RS485 Output for Structural Monitoring
SPECIFICATIONS
FCA716/FCA726 CONDITION PARAMETERS UNIT
Measure range ±10 ±30 ±60 ±90 ±180 °
Measure axis X Y X Y X Y X Y X Axis
Resolution 0.001 0.001 0.001 0.001 0.001 °
Measure accuracy MAXE Room temp. 0.01 0.01 0.015 0.02 0.02 °
RMSE Room temp. 0.008 0.008 0.008 0.009 0.009 °
Zero Temp.coefficient -40～85℃ ±0.0005 ±0.0005 ±0.0005 ±0.0005 ±0.0005 °/℃
Sensitivity Temp-coefficient -40～85℃ ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 %/℃
Power on time 0.5 0.5 0.5 0.5 0.5 S
Response frequency 20Hz
Interface TTL / RS232 / RS485 optional
Communication protocol RION 68 protocol / MODBUS RTU protocol optional
EMC According to EN61000 and GBT17626
MTBF ≥98000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Protection grade IP67
Cables Standard configuration 2m, M12 Aviation plug with PVC shielded cable, cable weight ≤120g
Weight ≤150g( without cable )
KEY WORDS
Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value.
MAXE: refers to the biggest error of the product within the range and at multiple angle points.
RMSE: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).
Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.

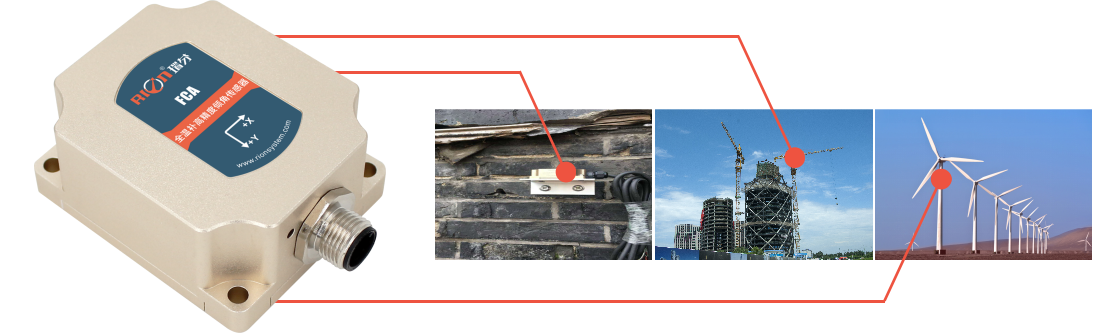

FCA716/FCA726 High Accuracy Dual Axis MEMS Inclinometer Sensor with RS485 Output for Structural Monitoring
