BDA446 Bluetooth 5.1 9-Axis IMU Sensor AHRS Sensor for AGV, Robotics and Motion Tracking
BDA446 Bluetooth 5.1 9-Axis IMU Sensor AHRS Sensor for AGV, Robotics and Motion Tracking
Specifications
MOQ :
1
Place of Origin :
China
Model Number :
BDA446
Supply Ability :
1000/month
wireless transmission :
Bluetooth 5.1
Payment Terms :
T/T
Packaging Details :
carton packing
waterproof rating :
IP67
Response time :
0.01S
Brand Name :
RION
battery power supply :
DC 3.0-4.2V
Certification :
CE, ISO,ROHS
Price :
$170.00/Pieces
Delivery Time :
5~8 work days
Description
BDA446 Bluetooth Dynamic Attitude Sensor.pdf
PRODUCT DESCRIPTION

BDA446 is a high cost-effective Bluetooth output dynamic attitude sensor that can be widely used in equipment that requires high dynamic balance,such as model aircraft,robots , agricultural machinery,construction vehicles ,forklifts ,etc.This device collects data from sensors ,integrates Kalman filtering,and outputs real-time attitude data.Due to the use of three-axis accelerometer and three-axis magnetic sensors to assist three-axis gyroscopes and temperature compensation algorithm technology,the product achieves excellent stability and real-time performance in all attitudes ,and is widely used in various motion attitude monitoring fields.This product not only outputs attitude data ,but also three-axis acceleration,three-axis gyroscope and other data.At the same time,it can modify and expand system operating parameters ,suitable for various application platforms.This product adopts Bluetooth wireless output,Bluetooth 5.1 wireless transmission module ,and BLE protocol.Integrated 2.4GHz adaptive frequency hopping technology enables 40 meter line of sight transmission (unobstructed environment) and BLE DFU Bluetooth wireless firmware upgrade,significantly improving the flexibility of industrial field deployment.

MAIN FEATURES
  • Integrated nine axis sensor and temperature sensor
  • Bluetooth 5.1 wireless transmission
  • Low noise
  • Kalman filtering algorithm
  • DC 3.0-4.2V battery power supply
  • Maximum update rate of 100Hz
  • Long lifespan,strong stability
  • Real time 3 D dynamic measurement
  • High performance drift stability

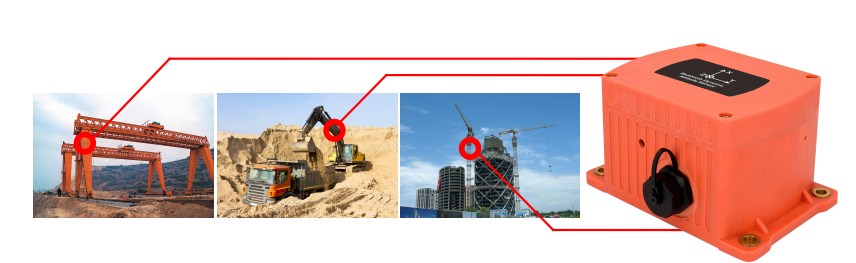

APPLICATION FIELD
  • Cranes and construction machinery
  • Mobile elevators and fire trucks
  • Automatic Guided Vehicles (AGV)
  • Boring and drilling applications
  • Mobile machinery
  • Agricultural machinery
  • Elevated platforms
  • Robot applications
  • Automatic assembly machinery
  • Leveling and flattening
BDA446 Bluetooth 5.1 9-Axis IMU Sensor AHRS Sensor for AGV, Robotics and Motion Tracking
BDA446T Condition Parameter
Measure range - Roll±180°, pitch±90°, azimuth±180°
(initial value at power-down is 0°)
Measure axis - X axis / Y axis / Z axis
Roll&Pitch Static accuracy1) @25℃ ±0.05°
Roll&Pitch Dynamic accuracy(rms) @25℃ ±0.1°
Gyro range - ±300°/s
Zero bias stability (10s Smooth) - 8.5°/h
Angle random walk coefficient(Allan) - 0.25°/sqrt(h)
Acceleration range - ±4g / ±16g Can be set
Bias stability(10s mean) - 0.1mg
Bias instability(Allan) - 0.005mg
Speed random walk coefficient(Allan) - 0.005m/s/sqrt(h)
Zero point temp. Coefficient2) -20~65℃ ±0.01°/℃
Sensitivity temp. Coefficient3) -20~65℃ ≤100ppm/℃
Power-on startup time ≤3.5S
Response time 0.01S
Electromagnetic compatibility According to EN61000 and GBT17626
reception sensitivity -96dBm
transmit power 8dBm
Bluetooth transmission distance 40m(In an open and unobstructed state)
Usage time (battery fully charged) About 30 days (at 25 ℃, working for 8 hours a day, sleeping for 16 hours)
Insulation resistance ≥ 100 megaohms
Impact resistance 100g@11ms Triaxial (half sine wave)
Anti-vibration 10grms / 10~1000Hz
waterproof rating IP67
Shell material ABS plastic shell
weight ≤ 570g (excluding cable)

1) Accuracy: Refers to the root mean square difference between the measured value and the actual angle error obtained by measuring the angle multiple times (>16 times) at room temperature.

2) Zero point temp. Coefficient: refers to the rate of change in the displayed value of a sensor relative to normal temperature within its rated operating temperature range when it is in a zero state.

3) Sensitivity temp. Coefficient: refers to the percentage of full-scale indication of a sensor relative to full-scale indication at room temperature within its rated operating temperature range, and the rate of change with temperature.

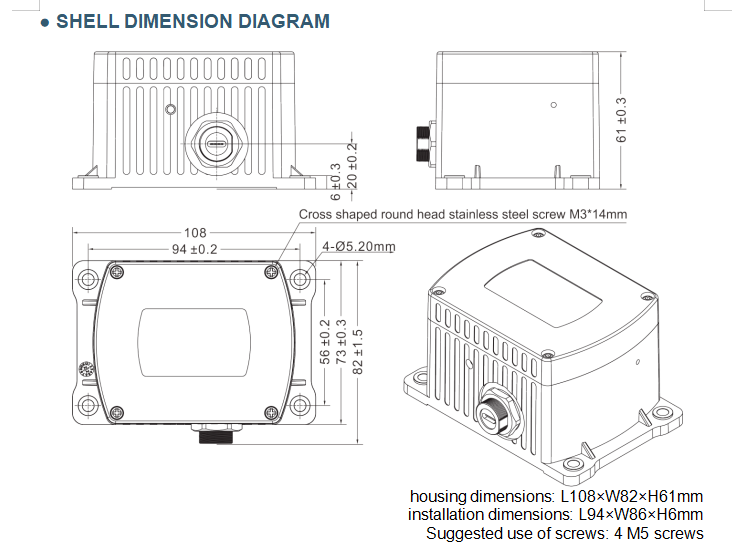

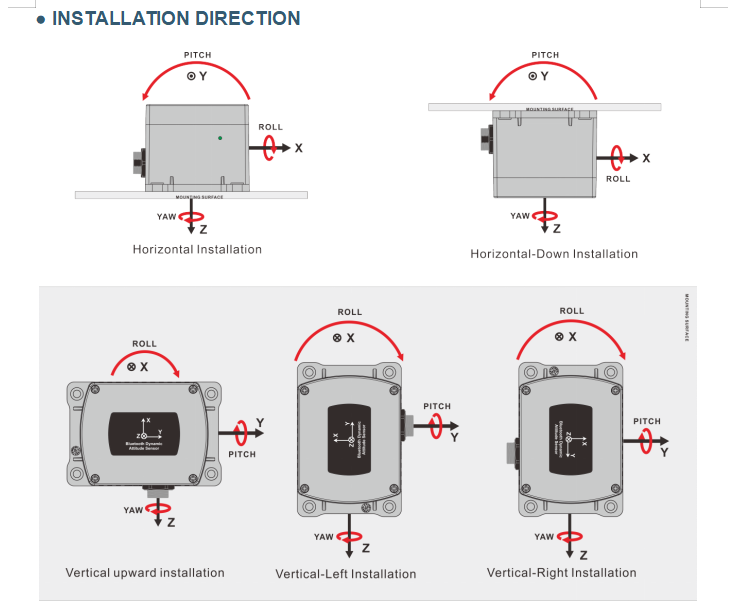

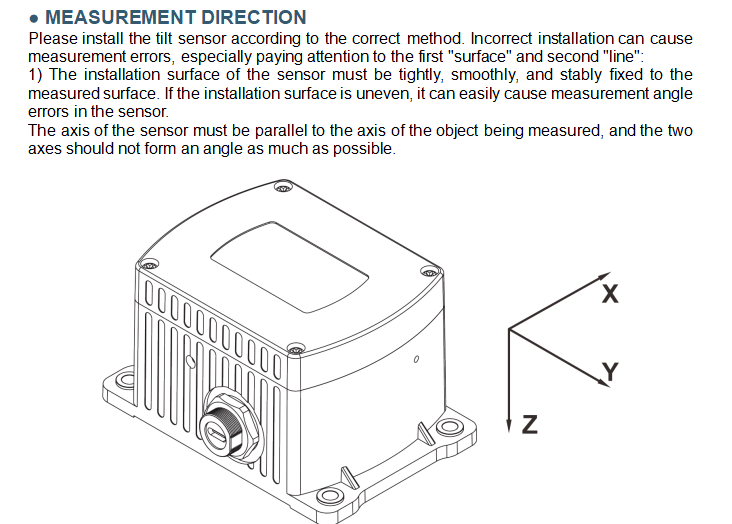

ELECTRICAL PARAMETERS
Parameter Condition Min Typ max unit
Charging voltage (DC) standard 4.5V 5V 12 V
charging current

0.8A
A
Charging Temperature 0~+55℃(Note: Charging temperatures that are too high or too low can damage the battery)
charging port Type-C interface (power 5V, current greater than 1A)
Charging time 8 hours (25 ℃)
Operating Temperature
-20
+70 ℃
operating current no-load
15
mA
Shutdown and sleep current

150
uA
Operating Temperature
-20
+70 ℃
Storage temperature
-20
+70 ℃
