SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation
SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation
Specifications
Measuring range :
360°
Model Number :
SDC620
Startup delay :
< 50 ms
Payment Terms :
T/T,Paypal
Soft iron calibration :
Have
Price :
$594.00/Pieces
Angle compensation range :
± 85°
Certification :
CE, ISO,ROHS
Hard iron calibration :
Have
Size :
137.3×83×37mm
MOQ :
1
Delivery Time :
7 days for samples
Output format :
RION 68 protocol
Supply Ability :
1000/month
Course angle accuracy :
0.3°～0.5°
Brand Name :
RION
Resolution :
0.1°
Place of Origin :
China
Weight :
≤ 520g (excluding cable)
Packaging Details :
1pcs / inner box with sponge , 50pcs/ctn
Description
SDC620B-N HIGH-PRECISION DIGITAL DISPLAY 3D ELECTRONIC COMPASS.pdf

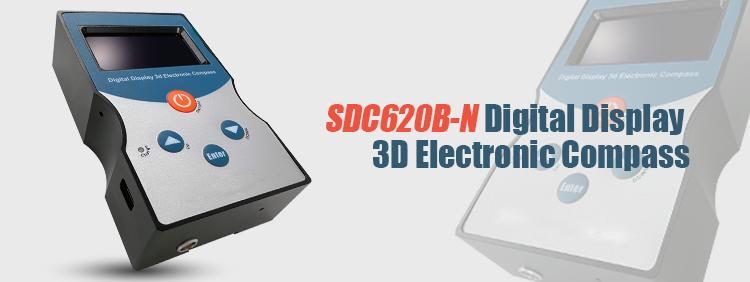

SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation
Product Overview

SDC620B-N is a new three-dimensional all-attitude compass launched by RION Technology. The product applies fluxgate technology. It is a high-precision three-dimensional compass with high resolution, strong anti-noise ability and stable temperature deviation. Advanced hard-iron and soft-iron calibration algorithms are used, as well as high-precision accelerometers for tilt compensation, to provide high-precision heading information for any tool face with a roll angle of 360°. In the environment with fixed interference, this product can still maintain a high measurement accuracy.

SDC620B-N is a handheld digital display instrument, which can remotely transmit three-dimensional data to the computer, and synchronously monitor and save data through the software of the upper computer of RION (this function is optional). SDC620B-N display adopts industrial low-temperature display, built-in high-capacity rechargeable battery, and adopts type-C interface to charge, which is convenient and fast.

Key Features
  • Heading angle accuracy: 0.3° ~ 0.5°
  • Angle compensation range: ± 85°
  • With soft and hard magnetic field calibration
  • Heading angle measurement range: 360°
  • 60 hours of continuous working endurance
  • Reset function
  • IP54 protection grade
  • Integrated design of handheld and dovetail installation
Applications
  • Navigation mapping
  • GPS integrated navigation
  • Antenna servo control
  • Pile driver angle real-time monitoring
  • Map Redrawing Tool
  • Oceanographic survey instrument
Technical Specifications
SDC620B-N Parameter
Compass heading parameter Course angle accuracy 0.3°～0.5°
Measuring range 360°
Resolution 0.1°
Repeatability 0.1°
Roll Angle 0.1 ° < 60 ° (measuring range)
0.2 ° < 180 ° (measuring range)
Roll angle measurement range ±180°
Resolution 0.1°
Pitch Angle 0.1 ° < 60 ° (measuring range)
0.2 ° < 85 ° (measuring range)
Pitch Angle Measurement Range ±85°
Calibration Hard iron calibration Have
Soft iron calibration Have
Interface characteristics Startup delay < 50 ms
Maximum sample rate 20Hz/s
Communication rate 9600 baud
Output format RION 68 protocol
Power source Support voltage Internal 3.7 V rechargeable lithium battery
Operating current 50mA (typical)
Charging current Fast charging mode 1.75 A, fully charged in about 4 hours
Normal mode 0.5A, full in about 12 hours
Environment Operating temperature -20℃～+70℃
Storage temperature -20℃～+70℃
Vibration resistance 3000g
Physical properties Connector 4 PIN Remo air plug
Cable line Standard 1m cable

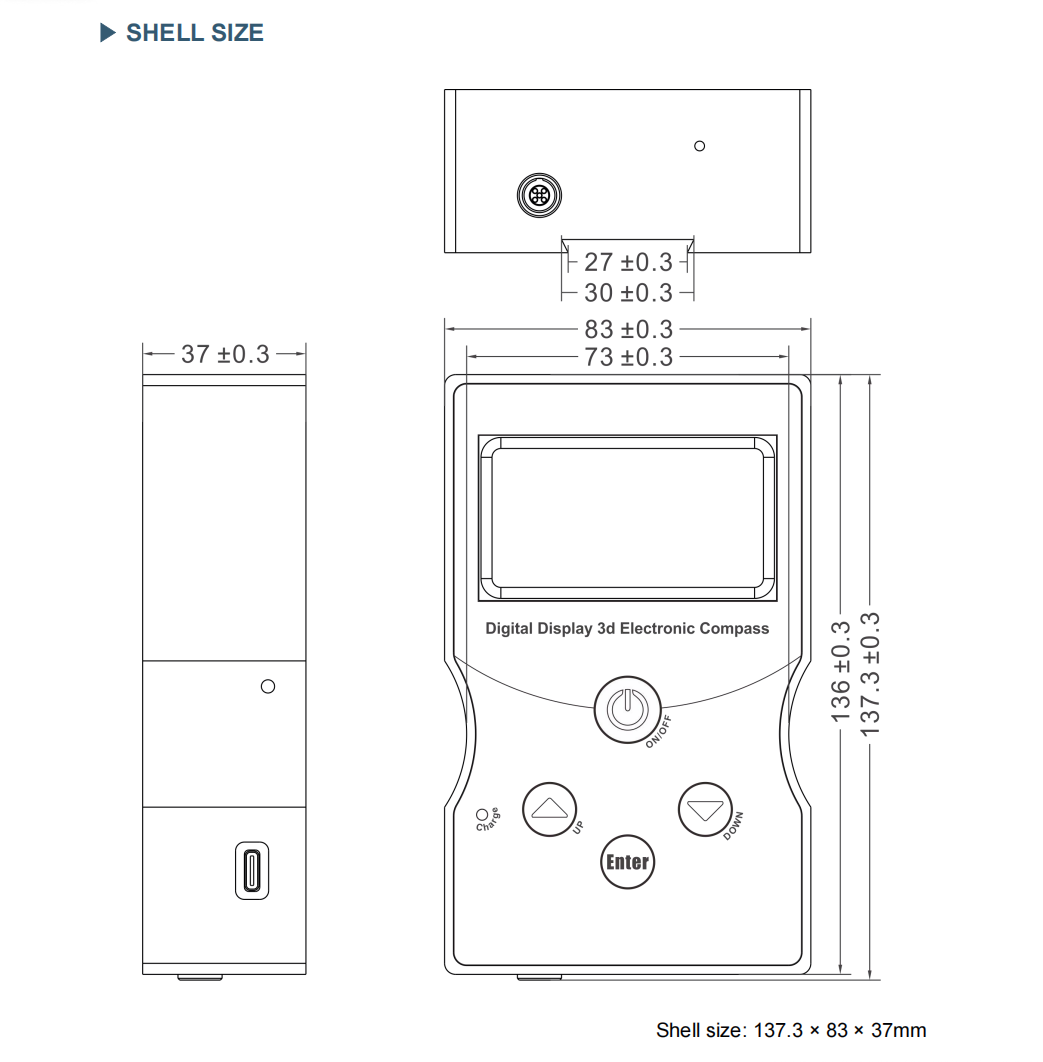

Size 137.3×83×37mm
Weight ≤ 520g (excluding cable)
SDC620B-N Tilt Compensated 3D Electronic Compass Sensor for Marine Navigation
