This product is a high-precision, wide-response frequency Ethernet high-frequency vibration sensor for real-time measurement of triaxial vibration, capable of outputting triaxial vibration acceleration values ​​in real time. It is widely applicable to real-time status analysis of rotating machinery such as motors, pumps, fans, air compressors, gas engines, generators, reducers, and gearboxes in industrial fields, providing accurate information on equipment operating status and health.

Key features:

1. Ultra-high response frequency bandwidth. Measurement range up to 10 kHz, covering the fault frequency range of most rotating machinery in industrial settings;
2. Ultra-high sensitivity and linearity. The sensor uses a 20-bit ADC sampling method, achieving a sensitivity of 0.095 mg/LSB, accurately capturing various slight vibrations and meeting most field requirements;
3. High integration. Simultaneously provides triaxial (X, Y, Z) vibration transient data, replacing the traditional "data acquisition card + sensor" data acquisition mode;
4. Ethernet communication interface. Data is directly uploaded to a server or platform via Ethernet communication, eliminating the need for any intermediate controllers or adapter modules. The 10/100M adaptive Ethernet interface allows for easy and uninterrupted uploading of real-time transient waveforms to the platform or server;
5. The sensor is powered by a DC 12V power supply to ensure stable data upload.

• Measuring range ±50g
• Power supply 12V
• IP67 protection rating
• Bandwidth DC~10kHz, low noise 35µg/√Hz
• Operating temperature -40~+85℃

• Vibration monitoring of industrial equipment

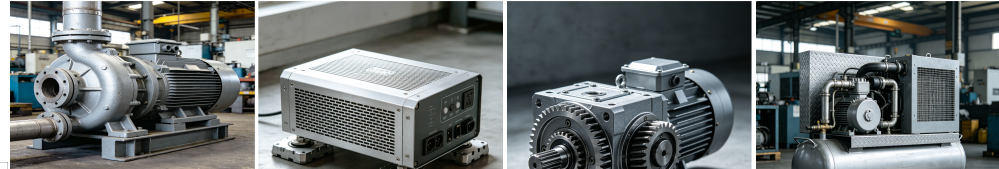

• Monitoring of rotating machinery such as industrial pumps, motors, fans, air compressors, gas engines, generators, reducers, and gearboxes
