TL725D Angle Sensor Dynamic Attitude Sensor for Precision Agriculture
TL725D Angle Sensor Dynamic Attitude Sensor for Precision Agriculture
Specifications
Bandwidth :
>100Hz
Working life :
10 years
MOQ :
1
Delivery Time :
5~8 work days
Packaging Details :
packing carton
Startup time :
250ms
Model Number :
TL725D
Weight :
≤160g
Payment Terms :
T/T
power supply :
DC9~36V
Price :
$57.00/Pieces
output optional :
CAN2.0A/B
Supply Ability :
1000 pcs/month
Vibration :
5g~10g
Place of Origin :
China
Current :
35mA(12V)
Certification :
CE, ISO,ROHS
Protection grade :
IP67
Brand Name :
RION
Description

TL725D-CANBUS Angle sensor.pdf

PRODUCT INTRODUCTION

TL725D is a professional angle sensor designed for navigation applications in agricultural machinery automatic lifting, with built-in industrial grade three-axis angular rate and three-axis linear velocity. This product can still output smooth posture data even under the high vibration characteristics of agricultural machinery. A dynamic attitude algorithm based on MEMS inertial measurement platform is developed to output real-time data on the dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis linear velocity, and forward axial body linear velocity of an object . This product is specifically designed for automated agricultural machinery, precise operations, and efficiency, and is an essential component for the new generation of automated precision agriculture control.

FEATURES
  • Horizontal relative heading and attitude angle output
  • Real-time angular rate output
  • Long life and strong stability
  • Forward axis linear velocity
  • Compact and lightweight design
  • CAN2.0A/B output optional
  • All solid state
  • Light weight
  • DC9~36V power supply
APPLICATION
  • Automated agricultural machinery
  • Precision agriculture
  • Combination Harvesters
  • Farming machine

TL725D Angle Sensor Dynamic Attitude Sensor for Precision Agriculture

TL725D-C2/C3 PARAMETERS
Three-axis attitude relative heading ±180°, Roll angle ±180°, Pitch angle ±90°
Bandwidth >100Hz
Nonlinear 0.1% of FS
Startup time 250ms
Input voltage +9~36V
Current 35mA(12V)
Working temp -40 ~ +80℃
Storage temp -40 ~ +85℃
Vibration 5g~10g
Impact 200g pk, 2ms, ½sine
Working life 10 years
Output frequency 1Hz~200Hz Settable

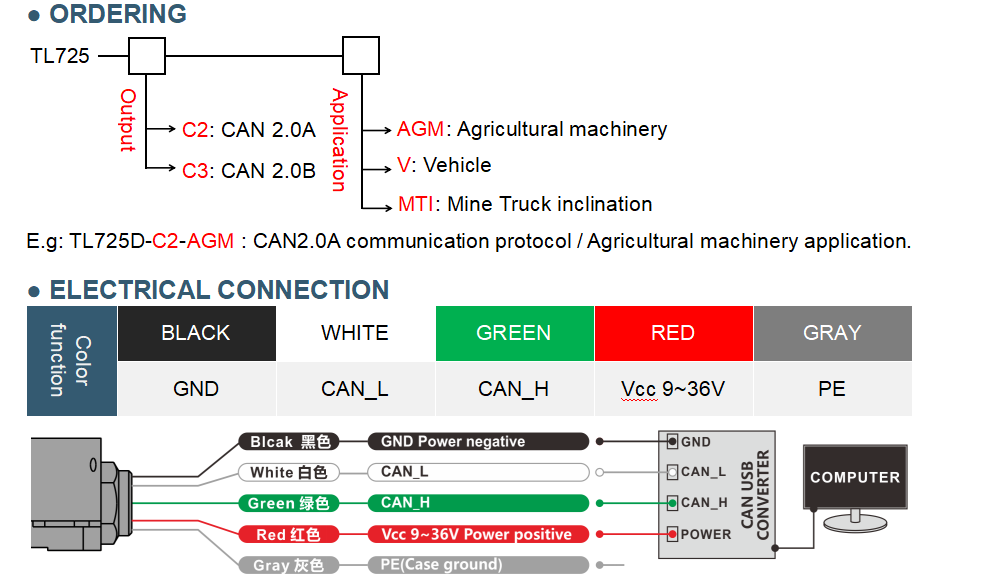

Output signal CAN 2.0A / CAN2.0B(Optional)
MTBF ≥98000 Hours/times
Insulation resistance ≥100 MΩ
Shockproof 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms/10~1000Hz
Protection grade IP67
Cable Standard 1 m 4 pin shield wire
Weight ≤160g (including 1 meter standard cable)

TL725D Angle Sensor Dynamic Attitude Sensor for Precision Agriculture

TL725D Angle Sensor Dynamic Attitude Sensor for Precision Agriculture
