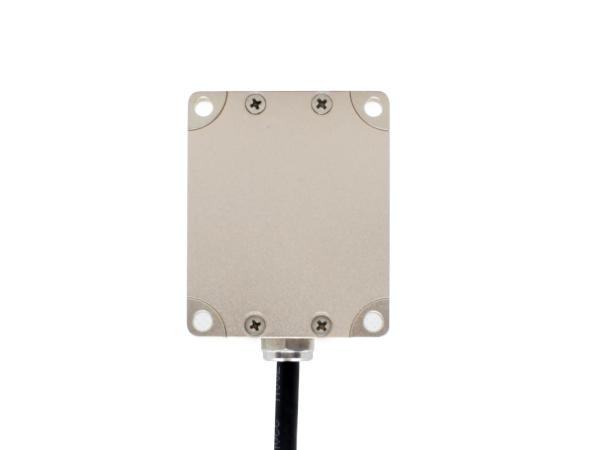

Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor
Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor
Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor
Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor
Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor
Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor
Specifications
Model Number :
HCA716S-180
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
1pcs inclinometer in each inner box , 100pcs /ctn
Price :
$218.00/Pieces 1-9 Pieces
Certification :
CE, ISO
MOQ :
1
Payment Terms :
T/T, Paypal
Supply Ability :
3000 pcs/month
Delivery Time :
7 days
Resolution :
0.001°
Theory :
MEMS
Output :
MODBUS
Measuring Range :
±1～±180° optional
anti-vibration performance :
>100g
Wide temperature working :
-40~+85℃
Weight :
≤150g (including 1 meter cable)
Description

High Precision Stable Reliable CE Approvaled MODBUS Type Inclinometer

Application:

Satellite positioning Search

Rail-mobile monitoring

engineering mechanical measurement of dip angle

oil-well drilling equipment

Radar detection of vehicle platform

Underground drill posture navigation

Technical Data

HCA716/726-C2/C3 CONDITION PARAMETER UNIT
Measure range ±10 ±30 ±60 ±90 ±180 °
Measure axis X Y X Y X Y X Y Vertical X axis axis
Resolution 0.001 0.001 0.001 0.001 0.001 °
Measure accuracy MAXE Room temp. 0.008 0.01 0.01 0.02 0.02 °
RMSE Room temp. 0.004 0.005 0.005 0.006 0.006 °
Long temp. stability <0.02 <0.02 <0.02 <0.02 <0.02 °
Zero Temp.coefficient -40～85℃ ±0.0005 ±0.0005 ±0.0005 ±0.0005 ±0.0005 °/℃
Sensitivity temp-coeffi -40～85℃ ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 %/℃
Power on time 0.5 0.5 0.5 0.5 0.5 S
Response frequency 20 20 20 20 20 Hz
Interface CAN2.0A/CAN2.0B
EMC According to EN61000 and GBT17626
MTBF ≥98000 Hours/times
Insulation Resistance ≥100M
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Protection grade IP67
Cables

Standard 1M length,wearproof,grease proofing,wide temperature,

Shielded cables 4*0.2mm2
Weight ≤150g (including 1 meter cable)

*This Technical data only list ± 15 °, ± 45°, ± 60 °, ± 180 ° series for reference, other measuring range

Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor

Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor


Modbus RTU Tilt Sensor Inclinometer X Y Axis Mems Level Sensor
