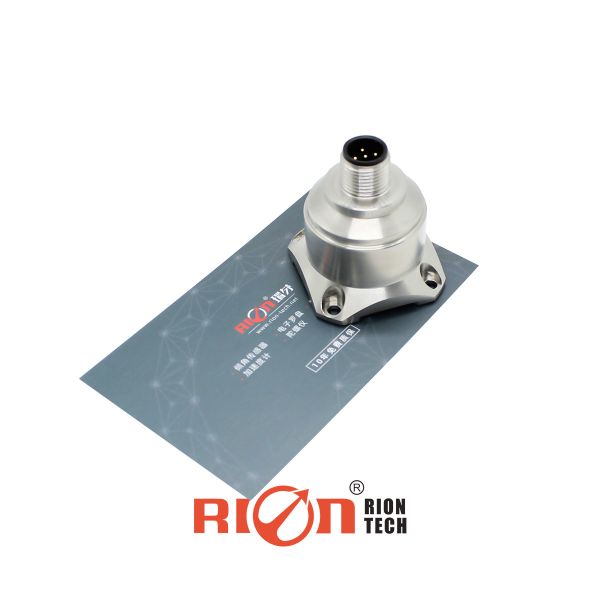

AKF392 USB MEMS 3 Axis Vibration Sensor Auto Monitoring
AKF392 USB MEMS 3 Axis Vibration Sensor Auto Monitoring
AKF392 USB MEMS 3 Axis Vibration Sensor Auto Monitoring
AKF392 USB MEMS 3 Axis Vibration Sensor Auto Monitoring
AKF392 USB MEMS 3 Axis Vibration Sensor Auto Monitoring
AKF392 USB MEMS 3 Axis Vibration Sensor Auto Monitoring
Specifications
Brand :
accelerometer sensor
measuring range :
±2g ,±4g,±8g,±10g ,±20g,±40g
Measuring Range :
max +/-40G
Voltage - Input :
DC9-36V
weight :
73.5g
Function :
vibration testing
anti-impact :
2000G
size :
L34.4*W34.4*H38mm
Technology :
MEMS
working temperatur :
-40°C ~ +85°C
store temperature :
-55°C ~ +100°C
Bandwidth (3Db)) :
1000Hz
Model Number :
AKF392
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
cartons
MOQ :
1 Pieces
Price :
$235.00/Pieces
Certification :
CE, ISO
Payment Terms :
T/T,Paypal
Supply Ability :
3000 pcs/month
Delivery Time :
7 days for sample
Acceleration Range :
max range +/-40G
power supply :
9-36V
Interface :
Digital
Output Type :
RS232, RS485 or TTL
Mounting Type :
standard , magnetic
Usage :
VIBRATION SENSOR
Accelerometer output :
RS232, RS485, TTL
Output :
Digital Sensor
Theory :
MEMS
Resolution/Threshold (@ 1Hz) :
< 1mg(max)
Description

▶ PRODUCT INTRODUCE

The AKF392B three axis Vibration Sensor is produced using Swiss patented technology.

This acceleration series can be applied to various fields such as vibration testing and impact testing.The product adopts digital interface output, RS232/485/TTL optional, different address codes can be set, and multiple sensors can be used in series for long distances, which is convenient for multi-point measurement and data analysis. The AKF392B is a monocrystal line silicon capacitive sensor, consisting of a micromachined silicon chip,a low-power ASIC for signal conditioning,a microprocessor for storing compensation values and a temperature sensor. This product has low power consumption, Complete calibration system, solid structure and stable output.The new electronic configuration provides solid-state power for reset, and providing full protection for over-current.In the full range,Typical values for long-term stability and bias of the scale factor are less than 0.1%. This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability.

▶ PRODUCT FEATURES

● Three-axis (X,Y,Z)
● output: RS232；RS485；TTL
● power voltage: 9-36V
● anti-impact: 2000G
● Size: L50×W50×H38mm
● weight: 73.5g
● work temp:-40°C to +85°C
● Storage temp:-55°C to +100°C
● Excellent deviation stability

▶ APPLICATION

● crash record, fatigue monitoring and prediction

● wind power generation

● Low frequency vibration and automatic monitoring

● automobile

● Large machinery, engine

● armamentarium

● bridge

● road roller


▶ PRODUCT PARAMETERS
Range
±2
±4
±8
±10
±20
±40
g
Deviation Calibration
<1
<1
<1
<1
<1
<1
mg
Measuring Axial
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
X,Y,Z
axis
Up/Off Power Repeatability
<2
<2
<2
<2
<2
<2
mg(max)
Deviation temperature coefficient
0.01
0.01
0.01
0.01
0.01
0.01
%/℃
(Typical value)
Resolution/Threshold (@ 1Hz)
< 1
< 1
< 1
< 1
< 1
< 1
mg(max)
Nonlinearity
<0.5
<0.8
<1
<1
<1
<1
% FS(max)
Frequency response
2.4
2.4
2.4
5.5
5.5
5.5
kHz
Bandwidth (3Db))
500
500
500
500
500
500
Hz
Cross-axis sensitivity
1
1
1
2
2
2
%
Lateral vibration sensitivity ratio
1
1
2
5
5
5
%
Resonance frequency
2.4
2.4
2.4
5.5
5.5
5.5
kHz
noise density
21
21
21
86.6
86.6
86.6
μg/√Hz
0g output 2.5V
<0.01
<0.01
<0.01
<0.008
<0.008
<0.008
mV
Output rate
5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz






Output interface
RS232/RS485/TTL






Protocol
Rion Standard Protocol And Modbus Rtu Protocol






Reliability
MIL-HDBK-217,Grade 2






Shock Resistance
100g@11ms,Triaxial And Identical (Half Sine Wave)






Recovery Time
<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)






Vibrate
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes






Reliability
MIL-HDBK-217,Grade 2






Shock Resistance
100g@11ms,Triaxial And Identical (Half Sine Wave)






Input(Vdd_Vss)
9-36 VDC






Recovery Time
<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)






Vibrate
20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )






Current Consumption
<60mA @ 12 VDC






Connector
Industrial Standard M12 Connector






Weight
73.5g






Dimension
34.3*34.3*38.5mm
