RS485 Output Two Axis Inclinometer IP67 Waterproof For Building
RS485 Output Two Axis Inclinometer IP67 Waterproof For Building
Specifications
Brand Name :
Rion
Model Number :
HCA716S-80
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$273.00/Pieces 1-9 Pieces
Payment Terms :
T/T, PayPal
Supply Ability :
5000/month
Delivery Time :
7
Packaging Details :
box
Usage :
incline measure for building
Theory :
acceleration
Output :
RS232 RS485 TTL
Dimension :
54 x 44 x 18mm
Weight :
120g
Power supply :
9~36v
accuracy :
0.01deg
resolution :
0.001deg
water proof :
IP67
Description

building incline monitor dual axis incline measure for building

Technical Data

HCA716/HCA726 CONDITION PARAMETERS UNIT
Measure range ±15 ±45 ±60 ±180 °
Measure axis X,Y X,Y X,Y Vertical X axis
Resolution 0.001 0.001 0.003 0.005 °
Measure accuracy @25℃ ±0.008 ±0.01 ±0.01 ±0.01 °
Zero Temp.coefficient -40～85℃ ±0.0005 ±0.0005 ±0.0005 ±0.0005 °/℃
Sensitivity temp-coeffi -40～85℃ ≤0.01 ≤0.01 ≤0.01 ≤0.01 %/℃
Power on time 0.5 0.5 0.5 0.5 S
Response frequency 20HZ
Interface TTL / RS232 / RS485 optional
Communication protocol RION 68 protocol / MODBUS RTU protocol optional
EMC According to EN61000 and GBT17626
MTBF ≥50000 hours/times
Insulation Resistance ≥100MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Protection grade IP67
Cables Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2
Weight ≤150g (including 1 meter cable)

▶ GENERAL DESCRIPTION

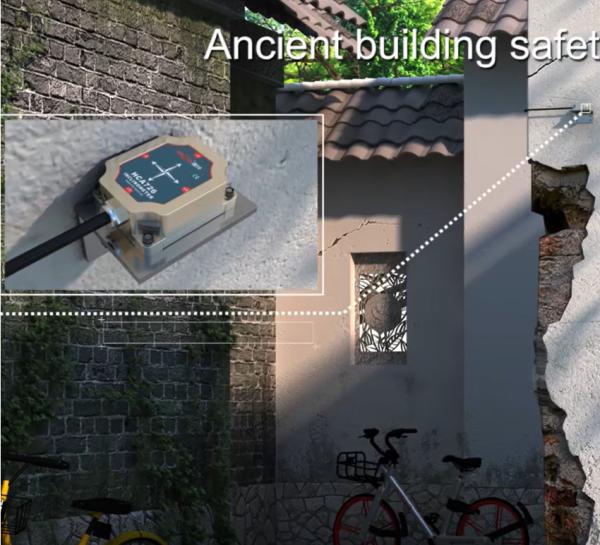

HCA716S / HCA726S is a small volume high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts RS485 / RS232 serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ± 180 °, and the full-scale accuracy is 0.01 °, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.


▶ FEATURES

★ Single / dual axis inclination measurement

★ Range ± 1 ~ ± 90 ° optional

★ Accuracy: Refer to data table

★ DC 9 ~ 36V wide voltage input

★ Wide temperature operation -40 ~ + 85 ℃

★ Resolution 0.001 °

★ IP67 protection grade

★ High vibration resistance> 100g

★ Direct lead interface

▶ ELECTRONIC CHARACTERI

PARAMETERS CONDITIONS MIN STANDARD MAX UNIT
Power supply Standard 9 12,24 36 V
Working current No load 40 mA
Working temperature -40 +85 ℃
Store temperature -40 +85 ℃

▶ MECHANICAL PARAMETERS

○ Connector: 1m Direct Leading Cable ( Can Be Customized)

○ Protection level: IP67

○ Shell material: aluminum alloy shield oxidation

○ Installation: Four M4 screws
