Precise Clinos Dual Axis Digital Angle Sensor DMI420 3.7V With LED Screen
Precise Clinos Dual Axis Digital Angle Sensor DMI420 3.7V With LED Screen
Precise Clinos Dual Axis Digital Angle Sensor DMI420 3.7V With LED Screen
Precise Clinos Dual Axis Digital Angle Sensor DMI420 3.7V With LED Screen
Specifications
Brand Name :
RION
Model Number :
DMI420
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Pieces
Price :
$234.00/Pieces
Payment Terms :
T/T, Paypal
Supply Ability :
3000/month
Delivery Time :
5 days for sample
Packaging Details :
1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Warranty :
1 year
Digital Inclinometer Measuring range :
+/-90deg
Accuracy :
<0.05deg
Product size :
L83*W53*H19.2mm
Resolution :
0.01°
LCD visible area size :
L40*W32 mm
Power supply :
3.7V Charging Lithium battery
Working Temp. :
-10 ~ 70C
Description

precise digital clinos dual axis digital level angle sensor with LED screen

Specification
PARAMETERS DMI410 DMI420
Angle measure range ±180 ° ±90 °
Length measure range 0~±999.9mm/m 0~±999.9mm/m
Measure axis Single axis Dual axis
Angle measure accuracy 0.05 °(full range) 0.05 °(full range)
Angle measure resolution 0.01° 0.01°
Length measure accuracy 0.9mm/m(full range) 0.17mm/m(full range)
Length measure resolution 0.17mm/m 0.1mm/m
LCD visible area size L40*W32mm
Working temperature -10℃～ +70℃
Working humidity 85℃
Power supply 3.7V Charging Lithium battery
Ideal charging time 3h
Battery continuous working time 8h(±0.5)
Data output signal Standard 5Pin USB connector
Anti-vibration 10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance 10grms,10～100Hz
Weight ≤140g
Waterproof level IP54
Material Metal aluminum

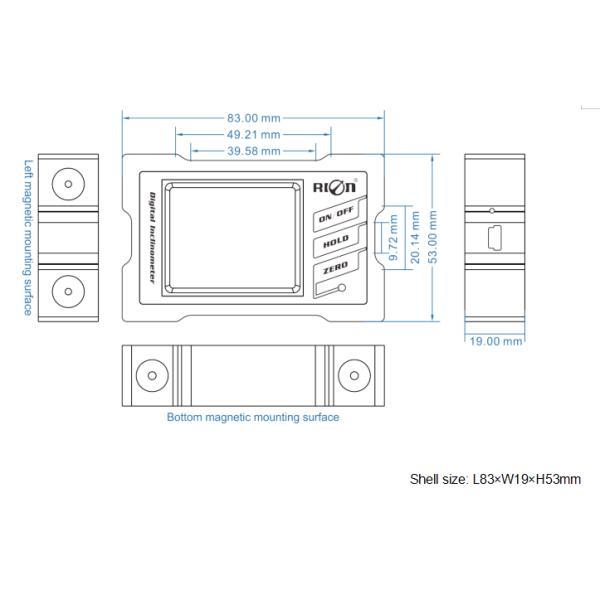

Size L83*W53*H19.2mm

General Description

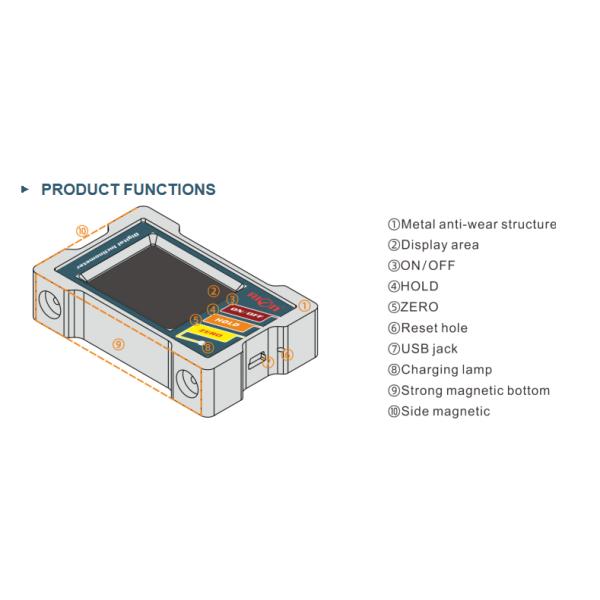

DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Application

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Cloud deck angle detection

★ Production jig

▶ MEASURING DIRECTION
