DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range
DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range
DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range
DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range
DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range
DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range
Specifications
Brand Name :
RION
Model Number :
DMI610
Certification :
CE, RHOS
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$547.00/Pieces 1-499 Pieces
Payment Terms :
T/T, Paypal
Supply Ability :
3000/month
Delivery Time :
7 days for samples
Packaging Details :

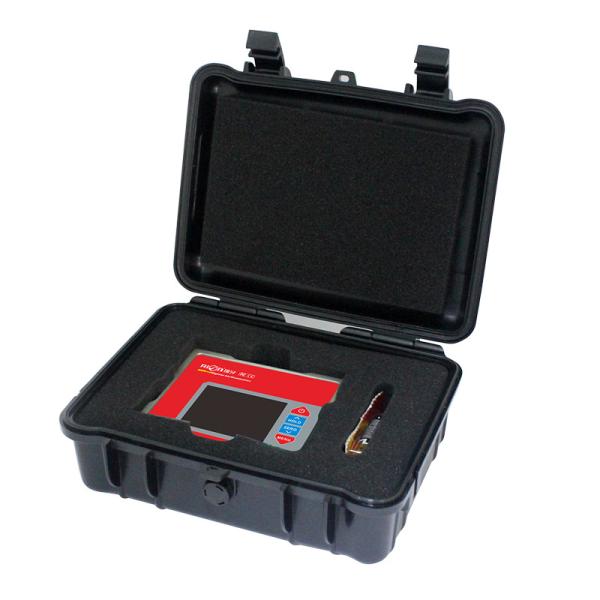

1pcs digital inclinometer in each plastic box with safe sponge inside
digital inclinometer Best accuracy :
<0.02°
Repeatability :
0.02°
Angle range :
single axis +/-90deg
Measure range :
dual axis +/-30deg
Working Temperature :
-10°~ +70℃
Three mode :
radian, angle, mm/m
Description

DMI610 Inclinometer Tilt Sensor 0.001° Resolution, ±90° Measure Range

▶ FEATURES

★ Best accuracy:<0.02°

★ Repeatability:0.004°

★ Maximum measure range:±90°

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Three surface datum strong magnetic installation

★ Working Temperature : -10°～ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

★ User can calibrate ZERO by himself

★ Night vision fours colors screen

★ Three kinds of measurement mode selectable (radian, angle, mm/m)

★ Angle resolution:0.001°

▶ APPLICATION

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform

★ Turntable testing

★ Pan unit angle detection

★ Production jig

★ Medical instruments

▶ GENERAL DESCRIPTION

DMI610 has the function of data storage, 3 measurement modes (Degrees, minutes, seconds,angle,mm/m) optional, strong expansibility, convenient application, industrial reliability, and has the absolute competitive price advantage in the international market have absolute competitive advantage!

▶ SPECIFICATIONS

DMI610 PARAMETERS
Angle measure range ±90° ±30°
Measure axis Single axis Dual axis
Best accuracy(RMS) <0.02°(Full range) <0.005°(Full range)
Angle measure resolution 0.001° 0.001°
Repeatability 0.004° 0.004°
Measurement mode radian, angle, mm/m three modes can be set
LCD 64 true colors night vision display screen
LCD visible area size L60.5*W45mm
Working temperature -10℃~+70℃
Working humidity 85%RH
Power supply One 2A AA battery or AA NiMH rechargeable battery
Ideal working time 6Hours
Shock resistance 10g@11ms,3 Axial Direction (Half Sinusoid)
Shock impact 10grms,10～100Hz
Weight 600g
Waterproof grade IP65
Material Anodic oxidation of aluminum alloy
Size L115*W95*H32mm
Precautions In order to achieve the highest measurement accuracy, please set the latitude information of the local city, and it will be automatically saved after setting. (Refer to the third point of the third point in the main interface function introduction of this specification)

DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range

DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range

DMI610 Inclinometer Tilt Sensor 0.001° Resolution ±90° Measure Range
