IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
IP54 USB2.0 High Accuracy Digital Inclinometer with 3.7V Charging Lithium Battery
Specifications
Brand Name :
RION
Model Number :
DMI810-15
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Pieces
Price :
$438.00/Pieces
Payment Terms :
T/T, Paypal
Supply Ability :
3000/month
Delivery Time :
5 days for sample
Packaging Details :
1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton
Maximum Measurement Range :
±30°
Ingress Protection :
IP65
Best Accuracy :
0.005° @ range ±30°
Supported Resolution :
0.01/0.001°
Insulation Resistance :
≥100MΩ
Accuracy :
0.005 degrees
Sensitivity Error :
±0.5% (25℃)
Data Output :
RS485/RS232 (optional)
Ruggedized Enclosure :
IP67
Output Rate :
5Hz、15Hz、35Hz、50Hz can be set
Zero Point Drift :
±0.005°/℃
Shock Impact :
10grms,10-100Hz
Description

Production Jig Setup with High Accuracy Digital Inclinometer

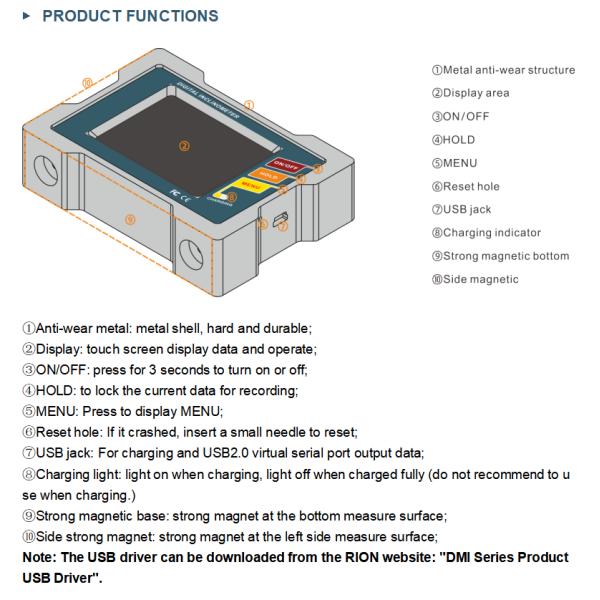

▶ FEATURES
★ Best accuracy:<0.005°

★ Repeatability:0.003°
★ Angle resolution:0.001°

★ Maximum measure range:±30°
★ User can set the alarm value by himself

★ Data store function
★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure
★ Double benchmark strong magnet installation

★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation
★ User can calibrate ZERO by himself

★ Built-in rechargable industry batteries
★ Night vision fours colors screen

★ IP54 protection class
★ °/mm/m Dual units switch function

★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)

▶ APPLICATION
★ Building construction

★ Automobile four-wheel testing

★ Road slope
★ Machinery installation

★ Piping installation

★ Industrial platform
★ Turntable testing

★ Pan unit angle detection

★ Production jig

▶ GENERAL DESCRIPTION
DMI810/DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

▶ SPECIFICATIONS

PARAMETER DMI810 DMI820 UNIT
Meausre Axis Single Axis Daul Axis Axis
Angle Measure Range ±15 ° ±30 ° ±15 ° ±30 ° °
Angle Measurement Accuracy(Full Range) <0.005 <0.01 <0.005 <0.01 °
Angle Measure Resolution 0.001 0.001 0.001 0.001 °
Mm/m Measure Range 267 577 267 577 mm/m
Mm/m Measure Accuracy 0.1 0.2 0.1 0.2 mm/m
Mm/m Measure Resolution 0.02 0.02 0.02 0.02 mm/m
Repeatability 0.003 0.003 0.003 0.003 °
Measurement Mode Angle,Degree/Minute/Second,Mm/m Three modes can be set
Working Temperature -10°~ +70℃
Working Humidity 85%RH
Power Supply 3.7V Charging Lithium Battery
Ideal Charging Time 5h
Battery Continuous Working Time 11h
Equipped With Pc Software Vc Software
Data Output Signal

USB2.0 (Virtual Serial Device)
Connect Plug In Standard Usb Connector, Rechargeable
Shock Resistance 10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact 10grms,10~100Hz
Waterproof Grade IP54
Material Aluminum Alloy Anodizing
Lcd 64 True Colors Night Vision Display Screen
Lcd Visible Area Size L57.6*W43.2mm

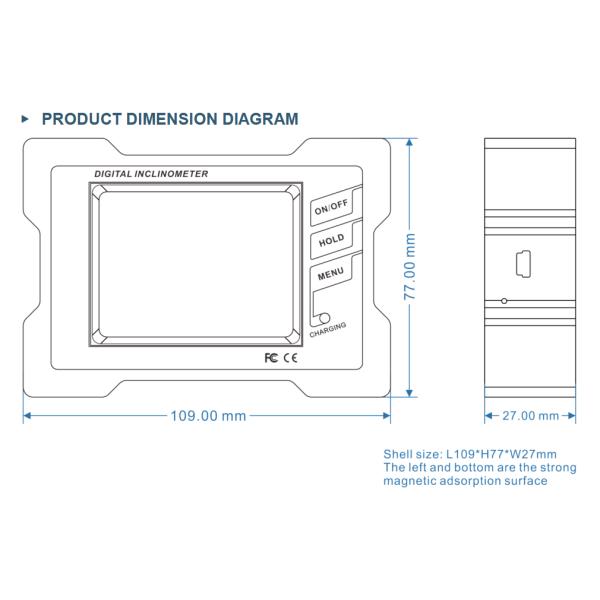

Size

L109*W77*H27mm
Weight ≤350g
