ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
Specifications
Brand Name :
Rion
Model Number :
ACA2200T
Certification :
CE, ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
US$705
Payment Terms :
T/T,Paypal
Supply Ability :
3000 Piece/Pieces per Month
Delivery Time :
7 days for samples
Packaging Details :
1pcs/box with sponge inside, 100pcs/ctn
Usage :
agricultural vehicle auto driving
Bandwidth :
>100Hz
Resolution :
0.01°
Gyro Range :
250°/s
Accelerometer range :
±4g
Connector :
RS232/RS485 , CAN2.0 optional
Description

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE


▶ GENERAL DESCRIPTION

The ACA2200T is an analog balanced servo inclinometer developed by RION Technology, built around a high-precision mechanical-electrical system comprising five key components: a non-contact displacement sensor, torque motor, error amplifier, feedback loop, and cantilever mass.

Compared to conventional electrolytic or capacitive inclinometers, the ACA2200T delivers superior performance in non-linearity, repeatability, hysteresis, temperature drift, shock resistance, vibration tolerance, and operating temperature range.

It integrates a 32-bit high-performance ARM processor, offering a resolution of 0.0001°, accuracy of 0.005°, and temperature drift as low as 0.0002°/°C. The response frequency reaches 50 Hz with a baud rate of 115200, making it a powerful solution for demanding applications.

The sensor features a non-contact installation method—simply mount it to the surface of the object, and it will automatically compute inclination and attitude. There's no need for complex alignment or dual-surface mounting.

With strong resistance to EMI and high tolerance to shock and vibration, ACA2200T holds a distinct competitive edge in the domestic market, and is widely used in industrial applications where accuracy and reliability are critical.


▶ FEATURE

★ Dual axis inclination measurement

★ Range ± 1 ～ ± 15° optional

★ Response frequency: 50Hz

★ DC 9~36V wide voltage input

★ Wide temperature operation -40~+ 85 ℃

★ Resolution 0.0001 °

★ IP67 protection level

★ Zero temperature drift ± 0.0002°/℃

★ Waterproof aviation plug

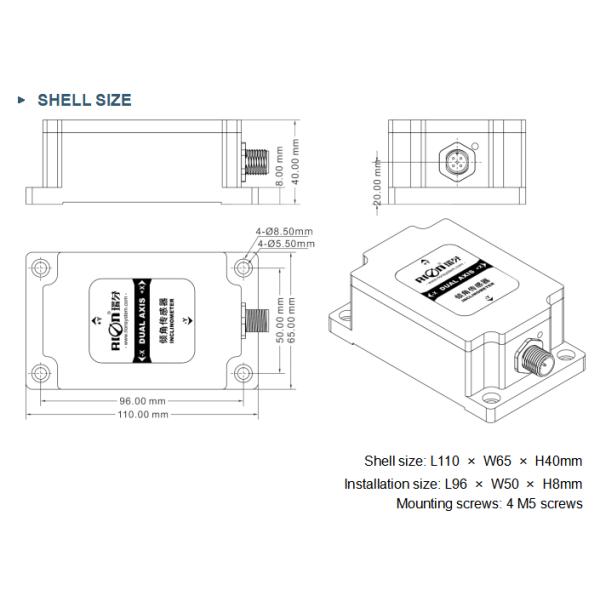

★ Size: L110 × W65 × H40mm

★ Output mode RS232, RS485, TTL optional



▶APPLICATION

★ Equipment vehicle leveling

★ Bridge and Dam monitoring

★ Precision instrument level control

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig

★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle

★ Tilt monitoring of geological equipment

★ Measurement of elevation angle of directional satellite communication antenna



▶PRODUCT SPECIFICATIONS

ACA2200T

Conditions

Parameters

Unit

Measure range

±05

±10

±15

°

Measure axis

X Y

X Y

X Y

axis

Resolution

0.0001

0.0001

0.0001

°

Measure accuracy

@25℃

0.003

0.005

0.006

°

Long term stability

0.002

0.003

0.005

°

Zero Temp. coefficient

-40～85℃

±0.0002

±0.0002

±0.0002

°/℃

Sensitivity temp coefficient

-40～85℃

≤50

≤50

≤50

ppm/℃

Power on time

0.5

0.5

0.5

S

Response frequency

20

20

20

HZ

Output rate

5Hz / 15Hz / 35Hz / 50Hz can be setting

Interface type

RS232 / RS485 / RS422 / TTL

EMC

According to EN61000 and GBT17626

MTBF

≥98000 hours / times

Insulation Resistance

≥100MΩ

Shockproof

100g@11ms / 3 Axial Direction (Half Sinusoid)

Anti-vibration

10grms / 10~1000Hz

Protection grade

IP67

Cables

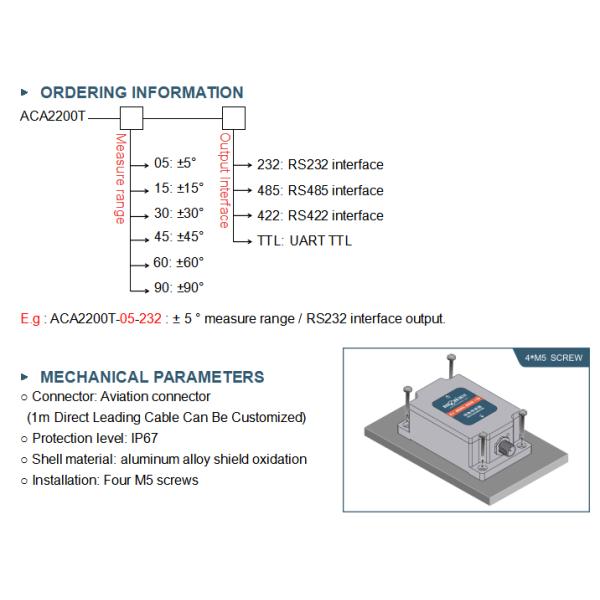

Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector

Weight

385g(without cable)

▶ ELECTRONIC CHARACTERISTICS


PARAMETERS

CONDITIONS

MIN

STANDARD

MAX

UNIT

Power supply

Standard

9

12,24

36

V

customized

Other voltage

V

Working current

No load

50

mA

Working temperature

-40

+85

℃

Store temperature

-40

+85

℃

▶ MEASURING DIRECTIONS

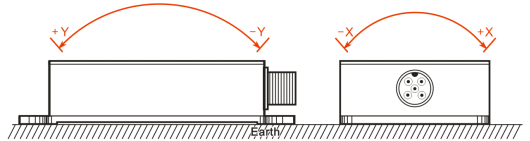

The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically (mounted vertically selection must confirm before production ), for installation please refer to the following scheme.

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE

ACA2200T ANALOG SERVO INCLINOMETER WITH ULTRA-HIGH ACCURACY AND STRONG EMI RESISTANCE
