DCM302B High Accuracy 0.5° 3D Digital Compass with Wide Temperature -40 to 85°C and IP67 Protection for Antenna Stabilization
DCM302B High Accuracy 0.5° 3D Digital Compass with Wide Temperature -40 to 85°C and IP67 Protection for Antenna Stabilization
DCM302B High Accuracy 0.5° 3D Digital Compass with Wide Temperature -40 to 85°C and IP67 Protection for Antenna Stabilization
DCM302B High Accuracy 0.5° 3D Digital Compass with Wide Temperature -40 to 85°C and IP67 Protection for Antenna Stabilization
DCM302B High Accuracy 0.5° 3D Digital Compass with Wide Temperature -40 to 85°C and IP67 Protection for Antenna Stabilization
DCM302B High Accuracy 0.5° 3D Digital Compass with Wide Temperature -40 to 85°C and IP67 Protection for Antenna Stabilization
Specifications
Brand Name :
RION
Model Number :
DCM302B-232
Place of Origin :
Guangdong, China
MOQ :
1 Pieces
Price :
$250.00 - $270.00/Pieces
Supply Ability :
30000 Piece/Pieces per Month
Packaging Details :
Sponge&Cartons
Usage :
Magnetic Sensor
Theory :
Other
Output :
Digital Sensor
Heading accuracy :
0.5~0.8deg
Tilt angle range :
+/-90deg
Tilt angle resolution :
0.1deg
Tilt angle accuracy :
0.1deg
Wide temperature :
-40 ~85C
Power supply :
DC5V (Customized 9-36V)
Protection :
IP67
Output interface :
RS232, RS485 or TTL optional
Product sie :
L60*W59*H29mm
Port :
HK
Description
DCM302B High Accuracy 3D Compass Inclinometer For Antenna Stabilization
DCM302B High Accuracy 3D Compass Inclinometer for Antenna Stabilization & Vehicle Navigation
DCM302B High Accuracy 0.5° 3D Digital Compass with Wide Temperature -40 to 85°C and IP67 Protection for Antenna Stabilization
Product Introduction
The DCM301B/DCM302B is a high-precision 3D electronic compass utilizing a two-dimensional plane calibration algorithm. This innovative calibration process requires only planar rotation in place, eliminating the need for complex three-dimensional attitude tilt adjustments. With advanced hard magnetic and soft magnetic calibration algorithms, the compass delivers optimal measurement performance even in magnetically challenging environments.
This sophisticated compass integrates three-axis magnetic sensing technology with real-time heading calculation through a central processing unit. A three-axis accelerometer provides comprehensive tilt compensation across a wide range of angles, ensuring accurate heading data even at extreme tilt angles up to ±85°. The system incorporates high-precision MCU control with multiple output modes, including standard RS232/RS485/TTL interfaces, with custom communication interfaces available upon request.
The compact DCM302B features low power consumption and exceptional reliability, making it suitable for antenna stabilization, vehicle navigation, and system integration applications. Its high shock resistance and robust construction enable reliable operation in demanding environments, ideal for high-precision measurement and control systems.
Applications
  • Satellite antenna search and tracking
  • Marine navigation and surveying
  • GPS integrated navigation systems
  • Antenna servo control
  • Infrared imaging systems
  • Laser range finders
  • Marine plotter mapping
  • ROV underwater robot navigation
  • Oceanographic measurement instruments
Technical Specifications
Parameter DCM301B / DCM302B Specifications
Compass Heading Accuracy Best accuracy: 0.5° | Resolution: 0.1°
Pitch Parameters Accuracy: 0.1°<15° | 0.2°<30° | 0.3°<60° | 0.3°<85°
Tilt range: ±85°
Roll Parameters Accuracy: 0.1°<15° | 0.2°<30° | 0.3°<60° | 0.3°<85°
Tilt range: ±85°
Tilt Resolution 0.1°
Best Tilt Compensation Range <40°
Calibration Features Hard iron calibration: Yes
Soft iron calibration: Yes
Magnetic field interference calibration: Plane rotation in 1 circle (2D Calibration)
Physical Dimensions L60×W59×H29mm
Weight: PCB: 20g, with shell: 100g
Connector: 5PIN connector
Interface Features Start delay: <50MS
Maximum output rate: 20Hz/s
Communication rate: 2400 to 19200 baud
Output format: Binary high performance protocol
Power Requirements Power supply: (Default) DC+5V | (Customized) DC9～36V
Current: Maximum 40mA | Ideal mode: 30mA | Sleep Mode: TBD
Environmental Specifications Operating range: -40℃～+85℃
Storage temperature: -40℃～+85℃
Resistance shock: 2500g
Electromagnetic compatibility: According to EN61000 and GBT17626
MTBF: ≥40000 hours/times
Insulation: ≥100M
Anti-shock: 100g@11ms, 3 Axial Direction (Half Sinusoid)
Anti-vibration: 10grms, 10～1000Hz

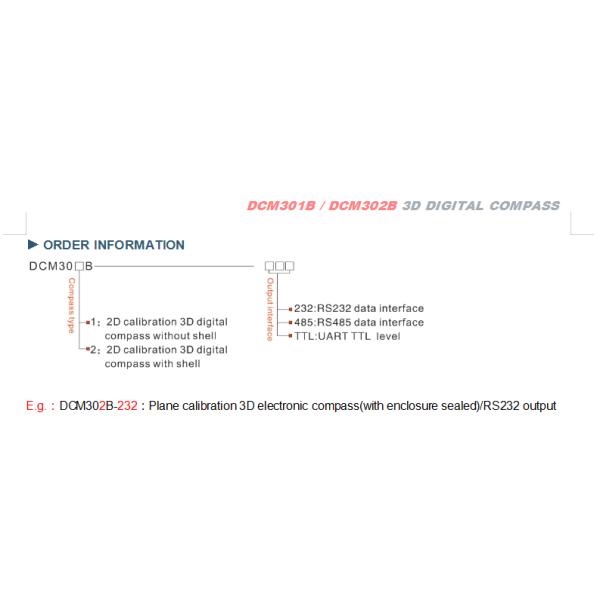

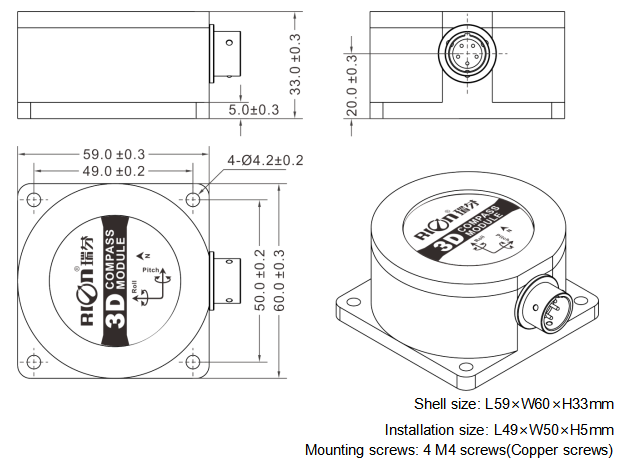

Shell Dimensions
