Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation
Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation
Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation
Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation
Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation
Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation
Specifications
Brand Name :
RION
Model Number :
HCA726S
Certification :
CE, FCC,ROHS , ISO
Place of Origin :
China
MOQ :
1pcs
Price :
US$248.00
Payment Terms :
T/T
Supply Ability :
30000pcs per month
Delivery Time :
1-2 weeks
Packaging Details :
carton with safety sponge
Incliniometer range :
±1 ~ ±180 ° optional
wide voltage input :
DC9-36V
Resolution :
0.001 °
Accuracy :
0.008°
Temperature operation :
-40 ~ + 85 ℃
protection grade :
IP67
High vibration resistance :
> 100g
Response frequency :
20Hz
Interface :
CAN2.0A/CAN2.0B
MTBF :
≥98000 hours/times
Weight :
≤150g (including 1 meter cable)
Description

HCA726S HIGH ACCURACY CAN2.0 INCLINOMETER WITH FULL TEMP-COMPENSATION

▶ PRODUCT DESCRIPTION

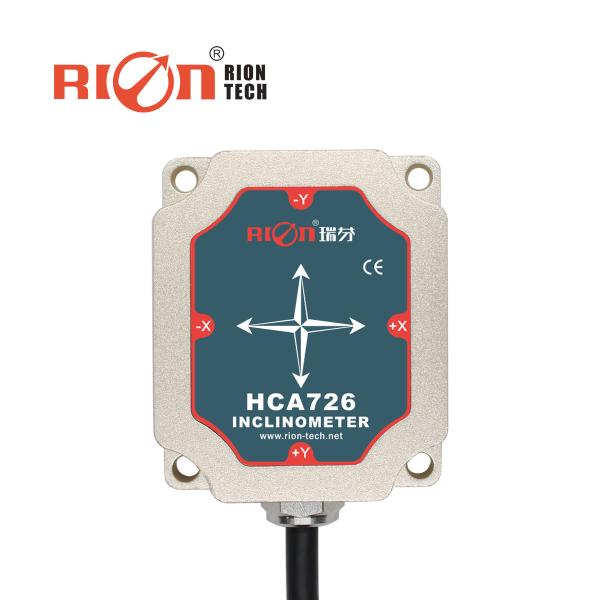

HCA716S / HCA726S is a small volume high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts CAN2.0A/B serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ± 180 °, and the full-scale accuracy is 0.01 °, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.

▶ PRODUCT FEATURES

★ Single/dual Axis Inclinometer ★ Measuring Range :±1～±180° optional

★ Accuracy: refer to the technical data ★ Wide voltage input: DC9～36V

★ Wide temperature working: -40～+85℃ ★ Resolution: 0.001°

★ IP67 protection class ★ Highly anti-vibration performance >100g

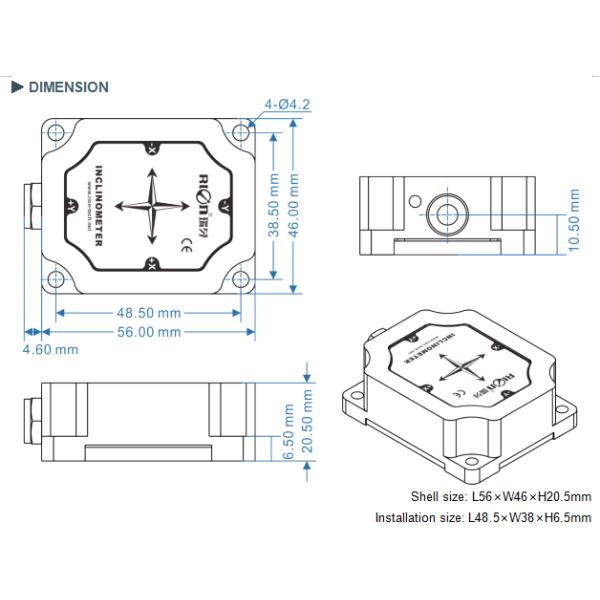

★ Direct lead cable interface ★ Small size : 54×46×20.5mm(customized)

▶ APPLICATION

★ Monitoring of ancient buildings and dilapidated buildings ★ Monitoring of bridges and large lands

★ Leveling of construction vehicles ★ Mining machinery, oil drilling equipment
★ Medical equipment angle control ★ Railway gauge ruler and gauge leveling

★ Underground drilling rig attitude navigation ★ Geological equipment tilt monitoring

★ Elevation angle measurement of directional satellite communication antenna

▶ SPECIFICATION

HCA716/726-C2/C3 CONDITION PARAMETER UNIT
Measure range ±10 ±30 ±60 ±90 ±180 °
Measure axis X Y X Y X Y X Y Vertical X axis axis
Resolution 0.001 0.001 0.001 0.001 0.001 °
Measure accuracy MAXE Room temp. 0.008 0.01 0.01 0.02 0.02 °
RMSE Room temp. 0.004 0.005 0.005 0.006 0.006 °
Long temp. stability <0.02 <0.02 <0.02 <0.02 <0.02 °
Zero Temp.coefficient -40～85℃ ±0.0005 ±0.0005 ±0.0005 ±0.0005 ±0.0005 °/℃
Sensitivity temp-coeffi -40～85℃ ≤0.01 ≤0.01 ≤0.01 ≤0.01 ≤0.01 %/℃
Power on time 0.5 0.5 0.5 0.5 0.5 S
Response frequency 20 20 20 20 20 Hz
Interface CAN2.0A/CAN2.0B
EMC According to EN61000 and GBT17626
MTBF ≥98000 Hours/times
Insulation Resistance ≥100M
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Protection grade IP67
Cables

Standard 1M length,wearproof,grease proofing,wide temperature,

Shielded cables 4*0.2mm2
Weight ≤150g (including 1 meter cable)

Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation

Hca726s High Accuracy Can2.0 Inclinometer With Full Temp Compensation
