Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
25-CD-PINS
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
30000 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
650000 pcs per month
Delivery Time :
7 work days
Packaging Details :
carton+ pallet
Production :
Air-Duct Insulation Pins
Base tpye :
cupped head
Base size :
25mm/30mm
Pin diameter :
2.7mm, 3mm, 3.4mm
Length in common :
10mm, 15mm, 25mm, 38mm
PIN TYPES :
Weld nails
Company types :
Manufacturer
ODM/OEM :
Support
Description

Mini Cup Head CD Weld Hvac Air-Duct Insulation Pins With Factory Prices

Quick details of the air-duct insulation pins

Material: Carbon steel, stainless steel, copper
Keywords: 12 ga metal insulation pin
Packaging Details Packing can be customized as per equirements
Pin length: 1-1/2",2-1/2",3-1/2",4-1/2",5-1/2"
Production workmanship: Automated production
Report: Material test report and dimension measurement report
Supply Ability: 100000 Piece/Pieces per Month
Surface treatment: zinc coated/ copper plated
Washer Dia.: 25mm/30mm for your choose
Type: cupped head CD weld pins

Destripations of air-duct insulation pins

Mini-Cup Head Capacitor Discharge Weld Pins are manufactured to be a single robust fastener. The precision attachment of cap and shank allows for better contact when welding. The optional protected adhesive on the underside of the cap acts as a superior insulator over traditional paper washers.

Specifications details of air-duct insulation pins

cup base size pin diameter pin length material ODM/OEM
25mm 3mm, 3.4mm 10mm, 15mm, 20mm, 25mm, 38mm MS, SS, CO Support
30mm 3mm, 3.4mm 10mm, 15mm, 20mm, 25mm, 38mm MS. SS,CO support

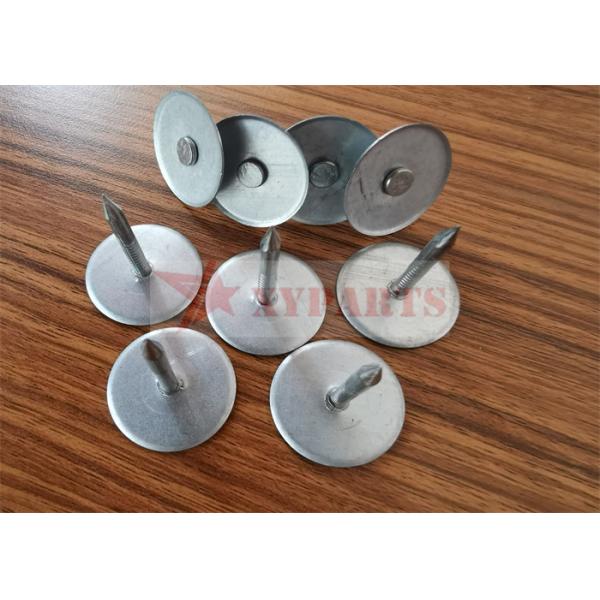

Images of air-duct insulation pins

Mini Cup Head CD Weld HVAC Air Duct Insulation PinsMini Cup Head CD Weld HVAC Air Duct Insulation Pins

Applications introduction of the Air-Duct Insulation Pins

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

Mini Cup Head CD Weld HVAC Air Duct Insulation Pins

Mini Cup Head CD Weld HVAC Air Duct Insulation Pins
