Specifications
Brand Name :
HUIHAOCUSTOM
Model Number :
CD-M3
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 SETS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
600000 PCS PER MONTH
Delivery Time :
15 WORK DAYS
Packaging Details :
500 PCS PER PP BAG, 6 BAGS PER CARTON IN COMMON
Name :
Insulation Metal Weld Pins
Type :
CD WELD PINS
Length :
38 MM - 300 mm
Material :
anneaded MS / SS / CO
Application :
thermal insulation,Heat Insulation,Construction,fire resistance
Pin diameter :
M3
Surface treatment :
Copper coated, zinc plating and polished
Factory name :
XIANGYI METAL
Description

M3 CD Studing Marine Rock Wool Insulation Metal Weld Pins With Speed Washers

Quick details of the insulation metal weld pins

  • material treatment : anneaded mild steel wire , anneaded stainless steel wire, copper wire is for specifical order
  • diameter of weld pins: 2.7mm , 3 mm are in common size
  • length of weld pins: standard length are 38mm, 55mm, 63mm, 114mm, 123mm, 142mm , 203mm.
  • Surface treatment : copper plated , zinc coated for MS material, polished for SS material.
  • Application: fixing insulation material on board for marine
  • Features: easy welding, easy bending, best finished, long left time

Technical data of the insulation metal weld pins

modle wire diameter standard length of weld pin material
XY-m1 1MM 10MM SS / MS
XY-m1.5 1.5MM 15MM SS / MS
XY-m2 2.0MM 25MM SS / MS
XY-m2.7 2.7MM 38MM - 203 MM SS / MS / CO
XY-m3 3.0MM 45MM - 230MM SS / MS / CO

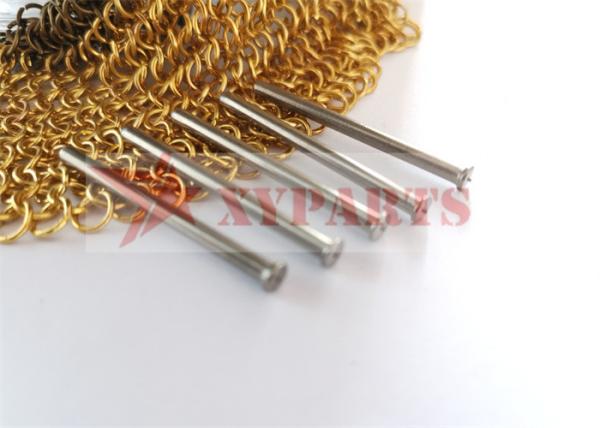

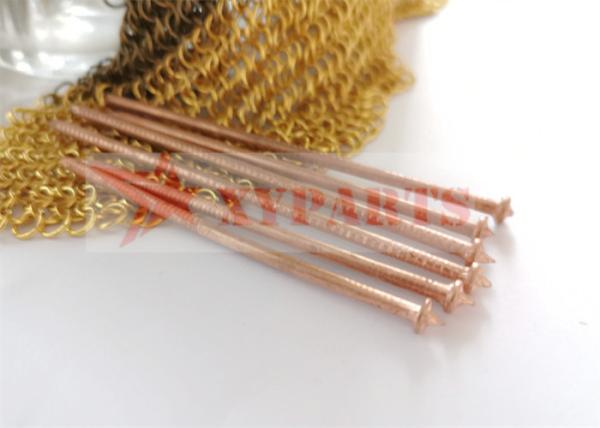

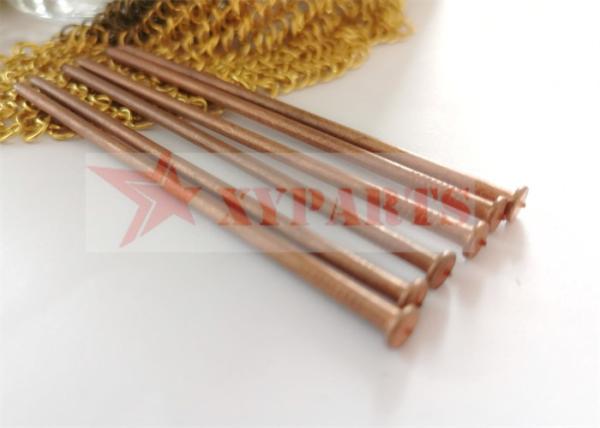

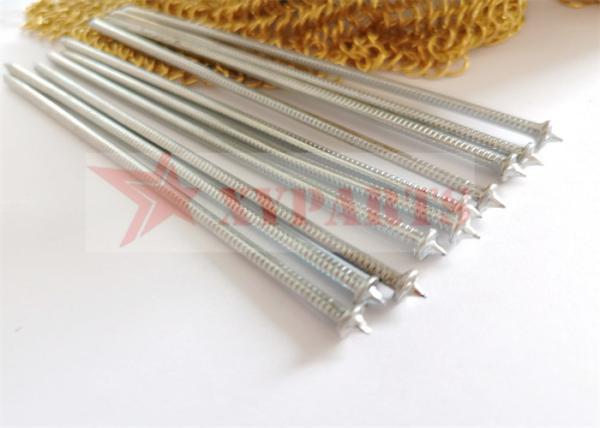

Images of insulation metal weld pins

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

Applications of the insulation metal weld pins

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

Self locking washers for fixing rock wool with weld pins

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

XIANGYI METAL PRODUCT CO.,LTD

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers
