Specifications
Brand Name :
Rihui Cable
Model Number :
N2XBY
Certification :
ISO9001/CCC/CE/PSE
Place of Origin :
Shandong, China
MOQ :
10 Meters
Price :
$1/meters 1-9 meters
Payment Terms :
L/C,T/T
Delivery Time :
5-10 work days
Core :
1/2/3/4/3+1/5/3+2/4+1
Insulation Material :
PVC/XLPE
Conductor Material :
Copper
Color :
Customer's Requirment
Working Temperature :
90°C
Description

Product Details:

1. Product Overview

The N2XBY 0.6/1kV cable is engineered for reliability in harsh environments. Featuring a robust Double Steel Tape Armor (DSTA), this cable offers superior mechanical protection against crushing and impact, making it the ideal solution for direct burial without the need for additional piping. The XLPE (Cross-Linked Polyethylene) insulation ensures high thermal stability and excellent electrical performance compared to standard PVC cables.

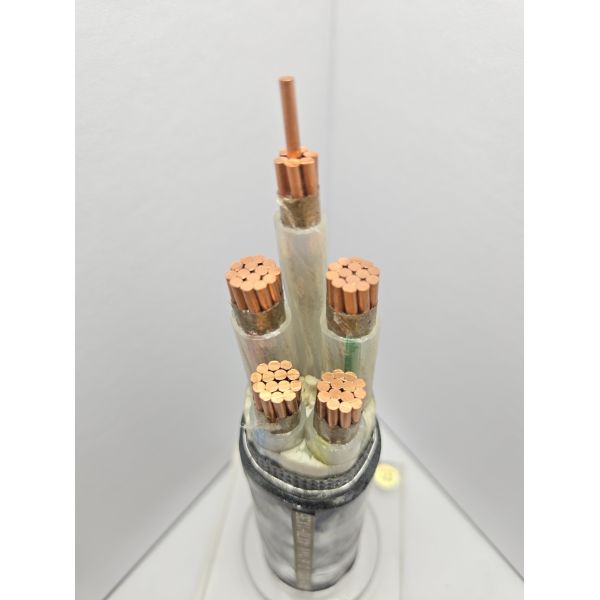

As seen in the product photos, the cable features high-purity Class 2 stranded copper conductors, a clear bedding layer, and a precise galvanised steel tape armoring layer, ensuring longevity and safety in power grids and industrial plants.

2. Key Features

  • High-Purity Copper: 99.9% Oxygen-free plain annealed copper conductors (Class 2 Stranded) ensure maximum conductivity and low resistance.

  • Double Steel Tape Armor (DSTA): Two layers of galvanized steel tape are helically applied, providing excellent crush resistance and rodent protection.

  • High Temperature Rating: XLPE insulation allows for a continuous operating temperature of 90°C and short-circuit ratings up to 250°C.

  • UV & Weather Resistant: The black PVC outer sheath is formulated to withstand UV exposure, moisture, and soil corrosion.

3. Applications

  • Underground Distribution: Direct burial in soil or cable trenches.

  • Industrial Infrastructure: Main power supply for factories, plants, and substations.

  • Civil Engineering: Power grids for buildings, street lighting, and public facilities.

4. Technical Specifications (4x70mm² + 1x35mm²)

Below is the technical parameter table for the specific cross-section requested.

Parameter Specification
Cable Model N2XBY (Cu/XLPE/DSTA/PVC)
Rated Voltage (U₀/U) 0.6/1 kV (1.2 kV Max)
Number of Cores 3 Phase + 1 Neutral + 1 Earth (or 4+1 Config)
Cross-Section Area 4 x 70 mm² + 1 x 35 mm²
Conductor Material Stranded Plain Annealed Copper (Class 2)
Insulation Material Cross-Linked Polyethylene (XLPE)
Armoring Double Galvanized Steel Tape (DSTA)
Outer Sheath Polyvinyl Chloride (PVC) - Black
Nominal Insulation Thickness 1.1 mm (70mm²) / 0.9 mm (35mm²)
Nominal Sheath Thickness 2.0 mm
Approx. Overall Diameter 33.0 ~ 36.0 mm
Approx. Net Weight 3600 kg/km
Max. DC Resistance (at 20°C) 0.268 Ω/km (70mm²) / 0.524 Ω/km (35mm²)
Current Rating (In Ground) Approx. 180 - 195 A
Current Rating (In Air) Approx. 230 - 245 A
Standard Compliance IEC 60502-1, VDE 0276

5. Why Choose Our Cables?

  • Certified Quality: Strictly manufactured according to IEC and VDE international standards.

  • Easy Installation: The non-sticky XLPE insulation and clean stripping properties (visible in our gallery) simplify termination work for electricians.

  • Cost-Effective: Factory-direct pricing with no compromise on conductor size or material quality.
