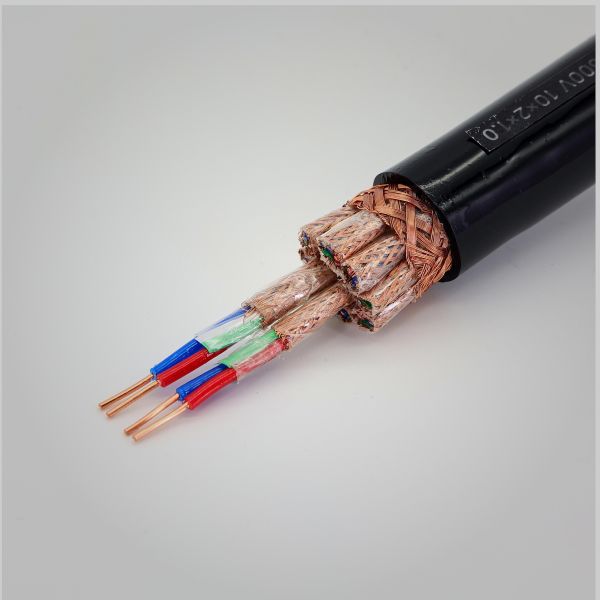

DJYPVP Industrial Automation Cable with 300/500V Rated Voltage IP67 Tinned Copper Mesh Per Pair Shielded PVC Computer Signal Cable
DJYPVP Industrial Automation Cable with 300/500V Rated Voltage IP67 Tinned Copper Mesh Per Pair Shielded PVC Computer Signal Cable
DJYPVP Industrial Automation Cable with 300/500V Rated Voltage IP67 Tinned Copper Mesh Per Pair Shielded PVC Computer Signal Cable
DJYPVP Industrial Automation Cable with 300/500V Rated Voltage IP67 Tinned Copper Mesh Per Pair Shielded PVC Computer Signal Cable
Specifications
Model Number :
0.75MM/1MM/1.5MM/2.5MM/4MM/6MM
Brand Name :
Rihui Cable
Place of Origin :
Shandong, China
Price :
$1/meters 1-9 meters
Payment Terms :
L/C,T/T
Conductor Material :
Copper
Insulation Material :
PVC/XLPE
Rated Voltage :
350/500V, 450/750v
Size :
5*2.5 mm², 5*6 mm², 5*10 mm², 4*1.5 mm², 0.75/1.0/1.5
Application :
Power Distribution, Computer
IP Level :
IP67
Jacket :
PVC
Type :
Low Voltage, DJVVR/DJVVP/DJVVP22
Working Temperature :
70°C
Product name :
Computer Cable
Conductor :
Tinned Copper
Rated voltage :
300/500V
Insulation :
XLPE PE PVC
Color :
Customer's Requirment
Certificate :
ISO9001/CCC
Core :
1-40
Keywords :
Computer Cable
Description
**DJYPVP Industrial Automation Cable Tinned Copper Mesh Per Pair Shielded PVC Computer Signal Cable**
- Rated Voltage: 300/500 V
- Conductor: Multi-stranded tinned copper (Class 5 flexible)
- Insulation: High-quality Polyethylene (PE)
- Shielding: Each twisted pair individually shielded with aluminum-foil + tinned copper braided mesh (≥85% coverage); optional overall tinned copper braid
- Core Identification: Pairs numbered sequentially; black insulation with white numbers
- Inner Sheath: PVC bedding
- Overall Shield: Tinned copper braided mesh (optical coverage ≥80%)
- Outer Sheath: Oil-resistant, flame-retardant PVC (black or blue); RAL 5015 blue commonly used for intrinsic-safety systems
- Temperature Rating: –40°C to +80°C (fixed), –15°C to +70°C (flexible installation)
- Min. Bending Radius: 10 × cable diameter (fixed), 15 × cable diameter (occasional flexing)
- Standards: GB/T 9330, IEC 60332-1 (flame retardant), RoHS & REACH compliant
**Key Features**
- Individual pair shielding + overall shielding provides excellent anti-interference performance
- Tinned copper braid offers superior EMI protection and corrosion resistance
- High flexibility suitable for continuous movement and drag-chain applications
- Outstanding oil, chemical and abrasion resistance
- Low capacitance and stable transmission characteristics, ideal for RS-485, Modbus, Profibus-DP and other industrial protocols
**Typical Applications**
PLC control systems, DCS distributed control systems, instrumentation loops, industrial automation networks, data acquisition systems, and environments requiring high electromagnetic compatibility (EMC).
