M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
Specifications
Place of Origin :
Guangdong, China
Brand Name :
RIGOAL
Model Number :
M12-RJ45
Type :
Adapter
Application :
Industrial Camera, Ethernet Work
Gender :
Male&Female
Color :
Black, Green
Product name :
M12 to RJ45 connector cable
Insulation Material :
PVC,PUR
Conductor Material :
Copper
Outer Insulation :
Rubber ,Silicone, PE, PVC, PU etc
Cable color :
Green or Custom
Cable length :
1m 2m or custom
Working frequency :
High frequency
Temperature Range :
-25~85℃
Protection level :
IP68/IP67 Waterproof
Sample :
Available
Packaging Details :
1.Regular Package/packing
2.According to customer request
Port :
Shenzhen/ HK
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
20 pieces
Price :
$4.50/pieces 20-999 pieces
Description
Product introduction

M12 Series Connector

The M12 Circular Connectors is the connector of 12mm metric size with thread locking mechanism, which is one of the most commonly used in factory automation, sensor/actuator boxes, field-bus and industrial controllers.

Quick Details:
* Series: M12 to RJ45 Connector
* Pin Numbers: A code: 4, 8Pin are acceptable
D code 4Pin, X code 8Pin
* Gender: Male/Female
* Termination Type: Wire Soldering/PCB Soldering
* Feature: Water and Dustproof to IP67 when mated with compatible connector

Technical Overview Data:
Product name
M12 to RJ45 Cable Connector
Color
Metal
Number of Contacts
4/8 Pin
Rated Current
0.5A
Rated Voltage
60V
Cable Material
PVC/PUR
Certificate
CE/ISO9001/RoHS
Temperature Range
-25°C~85°C
Protection level
IP68/IP67 Waterproof
Contact resistance
≤10 MΩ
Contact plating
Au(gold plating)
Material of housing
Brass/Zinc diecasting nickel plated
Pls feel free to contact us for more details
Details Images
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision

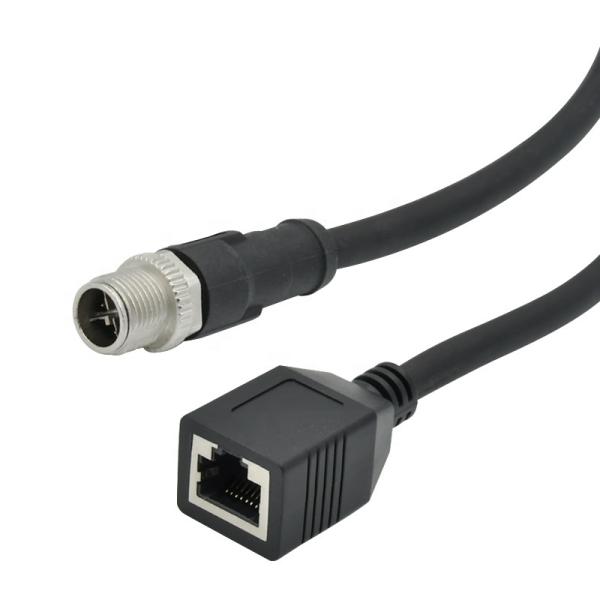

M12 x code 8P male straight to RJ45 female cable connector
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision

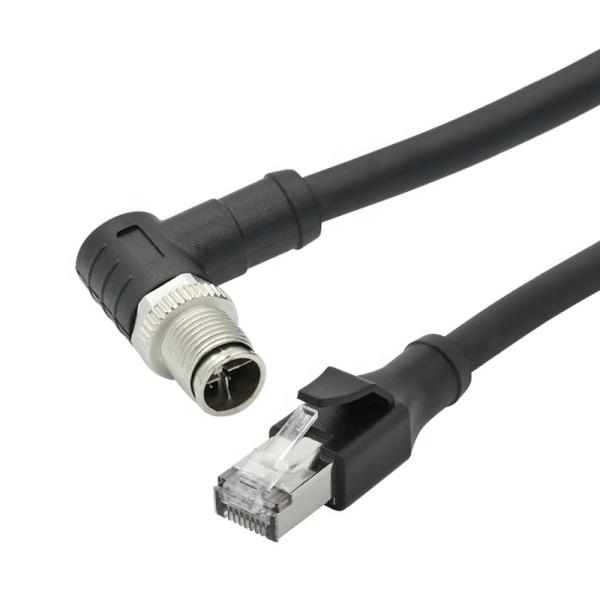

M12 x code 8P male angled to RJ45 male cable connector
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision

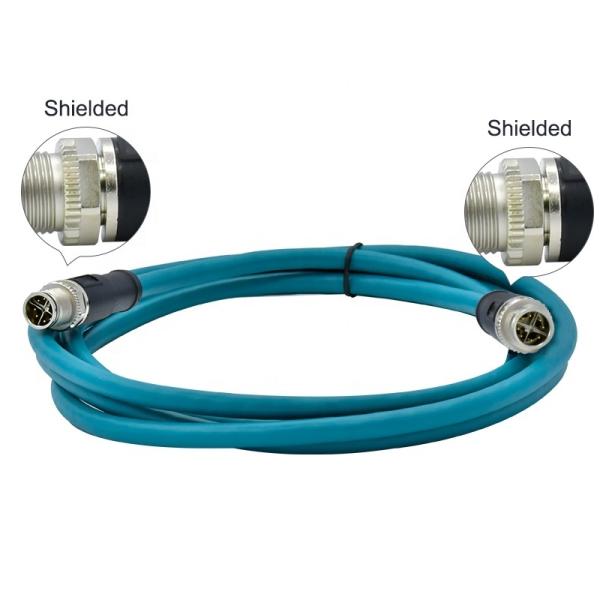

M12 x code 8P male to male cable connector
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision

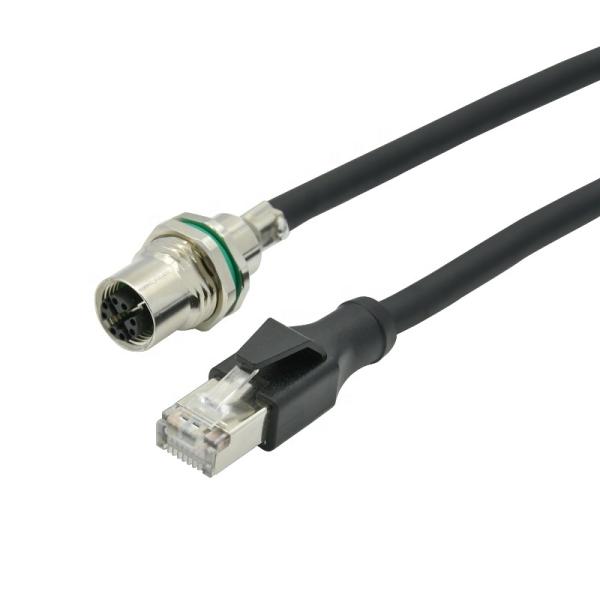

M12 D code 4P female panel mount to RJ45 male cable connector


M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision

M12 x code 8P male straight to RJ45 male cable connector


M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision

M12 x code 8P to RJ45 adapter

Related Products
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
Why Choose Us
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
Application
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
Packing & Delivery
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
Packaging:
Generally Package :Each pcs put in one small waterproof PE bag,then put in a carton

Details:
1.Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30 cm
2. OEM/ODM package is available
3. According to customer request.

Shipping:
According to customer request, we can choose different convenient shipping way.
Company Profile
M12 Ethernet Cable 4pin 8pin D X Code for Industrial Camera Machine Vision
ABOUT US
Rigoal was founded in 2013 and specialized in producing various waterproof cables&connectors such as M8, M12, M16, M23, D-SUB.Our products mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and car electronics industry and so on , they are equivalent to some world-famous brands.
Customer Foremost, Service First ,Quality first is our company's philosophy.Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel.
Meanwhile, we have agents and customers all over the world. We are spoken highly by our customers.

Last,warmly welcome you to join in us,your support will always be our motivation. Let's go forward hand in hand to create a brilliant future.

FAQ
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q2: How about the certificates?
A: ISO 9001, RoHS, IP68, CE etc.

Q3: How about the payment terms?
A: We can do 50% deposit , then 50% balance before shipment

Q4: How long is the delivery time?
A: Standard Products: 1-2 weeks, Custom Products: 15-25 days

Q5:Why choose us?
A: 1.one of largest connector factory in Asia
2.more than 10 years of export experience
3.good quality &factory directly low price
4.more than 10 years manufacture experience accepted OEM&ODM service

Q6:What can you buy from us?
A: Waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5,
M8,M12,M16,M23, D-SUB, RJ45, AISG,SP series connectors, etc.

Q7: Our services?
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
-Special service for your urgent case - Customer is always our focus.
