IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
Specifications
Brand Name :
Rigoal Connector
Model Number :
7/8 Connector
Certification :
CE ， Rohs , IP68
Place of Origin :
China ShenZhen
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000
Delivery Time :
30work day
Packaging Details :
46x30x30
Application :
Power,LED,Electrical equipment
Product name :
Electrical Connector
Overmold :
Transparent TPU
Insert :
TPU+GF
Contact resistance :
≤5mΩ
Polarity :
3pins, 4pins,5pins,6pins,8pins
Contacts :
Brass with gold plated
Insulation resistance :
≥100MΩ
Description

7/8 panel mount waterproof connector

Specification

Item value
Place of Origin Shen zhen,China
Brand Name RIGOAL
Model Number 7/8 assembly waterproof connector
Application Automotive
Gender female
Pins 4p, 5P, 3P
Application: Power, Automotive
Gender: Female
Coupling nut/screw Brass with nickel plated
Ambient temperature: -25℃~+80℃
Termination Method: Screw
Current Rating: 9A
Body Orientation Straight
IP rating IP 67/IP68
Application Telecommunication
Certificate CE ROHS ISO9001
IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly

Available Description:

Stainless steel screw is available
IP67/IP68, RoHS, certificate
Generally Description:
Connector Series: 7/8
Coding: A
Pins: 3 / 4 / 5pins
Gender:Male&Female
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP65/IP67
Ambient Temperature: -25°C~+85°C

Material:

Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC
Electrical data:
Rated Current: 9A
Rated Voltage: 250V
Contact Resistance: ≤10mΩ
Insulation Resistance: ≥100MΩ

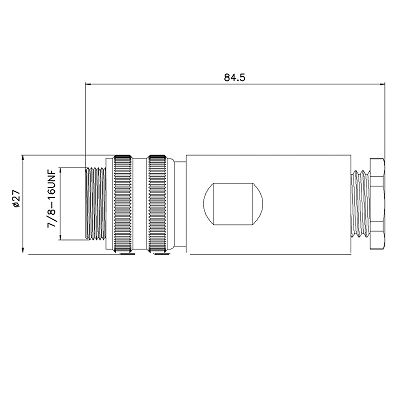

Product paramete

 IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly

Certifications

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly

Package&Shipping:

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm

2. OEM/ODM package is available

3. According to customer choice.

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
