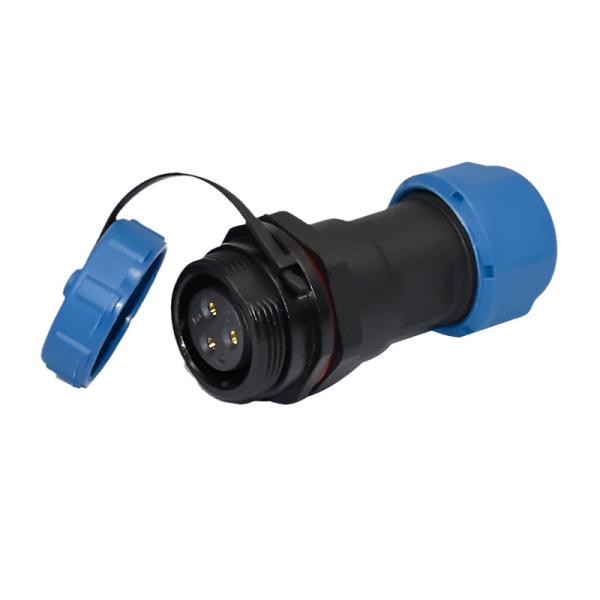

Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover
Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover
Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover
Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover
Specifications
Brand Name :
Rigoal
Model Number :
SP17 power connector
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Supply Ability :
3000pcs per week
Delivery Time :
10-15days
Packaging Details :
38*32*32cm/CTN, 1000pcs/CTN
Contacts :
3pins
Connector design :
Weipu connector
Termination :
Screw
Degree of protection :
IP68
Contact material :
Brass with gold plating
Body Orientation :
Straight
Insert material :
PPS man temperature 260°
Housing Material :
Plastic
Rated current :
10A
Temperature range :
-25°C~+85°C
Insulation resistancem M Ω :
2000
Description

Waterproof Power Connector SP17 Female 3pins Assembly Connector With Cover IP68

Product description

Our SP series of threaded IP68 connectors has a bigger and stronger shell, smart push-pull self-latching system

Our comprehensive series can meet of requirements and harsh working environments

When choosing a female connector, the robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.

All models are highly reliable and excellent quality.

Weipu has a very wide product range, from 2A-400A, from 2pin – 61pin, from IP44-IP68

General Details

Coupling:Threaded coupling

Shell material: Nylon66

Fire resistance: V0
Termination: Solder / Screw
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500times
Shell size: 0 to 2(0K/1K/2K)
Temperature range: -25°C~~+85°C
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Current Rating:10A
Contact Gender:female
Housing Material:Plastic

Material

Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
Connector type Weipu 17
Number of cores 3pins
Gender female
Current Rating 10A
Rated Voltage 500v

Number of Contacts

Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover

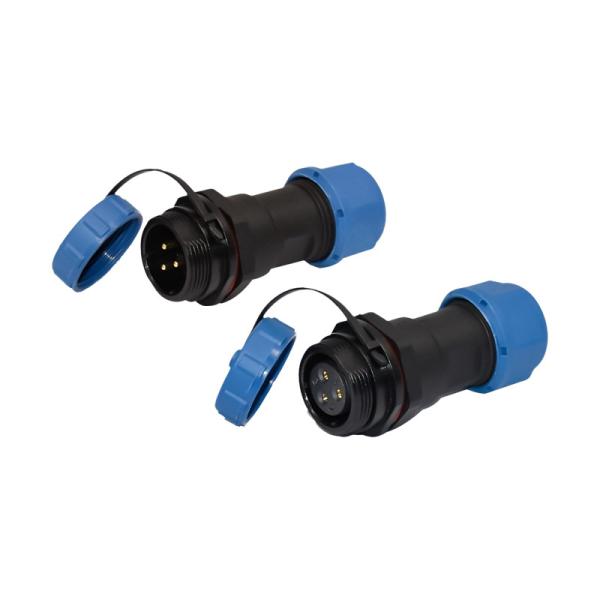

Product photos

Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover

Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover

Plastic Waterproof Power Connector SP17 3 Pin Female Connector With Cover

Our service

* M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's

requirements as long as tell us your details

* Sample in stock is free; you just need to pay shipping cost.

* Sample is around 5 working days; Mass is 5-15 work days.

* 100% homemade, competitive price and fast delivery

* T/T, PayPal, Western Union, Ali trade assurance.

* Yes, OEM/ODM service is available.

* Special feature and service can be provided upon requirement.
