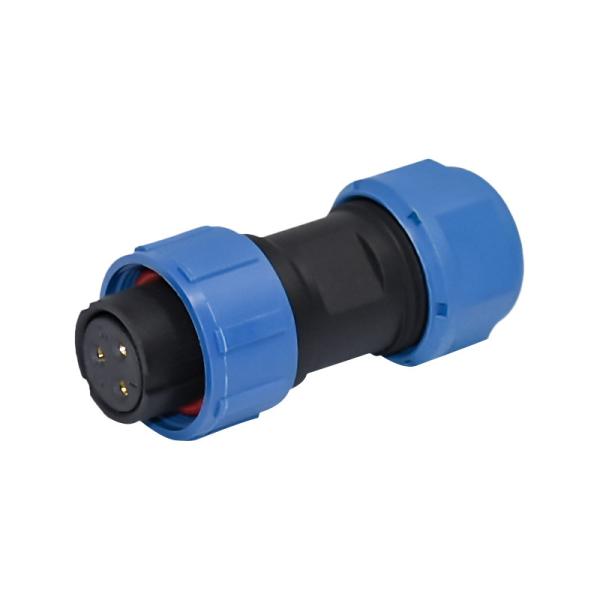

500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector
500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector
500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector
500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector
500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector
500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector
Specifications
Brand Name :
Rigoal
Model Number :
SP17 power connector
Certification :
CE
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Supply Ability :
3000pcs per week
Delivery Time :
10-15days
Packaging Details :
38*32*32cm/CTN, 1000pcs/CTN
Contacts :
3pins
Connector gender :
male to female
Termination :
Solder
Degree of protection :
IP68
Contact material :
Brass with gold plating
Shell Material :
Shcoll material
Insert material :
PPS man temperature 260°
Cable outer diameter range :
GM13: A (4-6.5mm) B (5-8mm)
Mating cyclc :
>500 times
Temperature range :
-25°C~+85°C
Description

Waterproof Power Connector male to femwle IP68 Weipu SP17 Straight Assembly Connector

Weipu SP13 17 21 Connectors

SP series of threaded IP68 connectors has a bigger and stronger shell. And it's very flexible

When choosing a female connector, the robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.

All models are highly reliable and excellent quality.

General Details

Coupling:Threaded coupling

Shell material: Nylon66

Fire resistance: V0
Termination: Solder/Screw
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500
Temperature range: -25°C~~+85°C
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Current Rating:5A-10A
Contact Gender:Male/female
Housing Material:Plastic

Material

Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
Insulation resistancem M Ω: 2000
Connector type Weipu 17
Number of cores 3pins
Gender male to female
Current Rating 10A
Rated Voltage 500v

Number of contacts 2-9 POLES
Mounting type butting cable connector
Connector size standard
IP Rating IP68
Mating Type Threaded
Body Orientation Straight
Housing Material Plastic

Number of Contacts

500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector

Product photos

500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector

500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector

500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector

500V Waterproof Power Connector Male To Female IP68 SP17 Straight Assembly Connector

FAQ

Q: What about the quality of your products?
A: All of our products have CE certification and are strictly tested by our QC department before shipment.

Q: Can you offer samples to test before normal order?
We are willing to provide samples. The sample can be delivered within 3 working days. For expensive items, please contact us first.
Q: How long is usually your delivery time?
A: Our delivery time is usually within 15 days after your payment.
Q: Can you provide customization?
A: You’d better provide parameters of the cable and the specification of the connector. If it’s for professional equipment cable, please provide weld definition.
Q: Some connectors are available with different cables. Which cables shall I choose?
A: Always choose the cable with the bigger diameter, because the bigger diameter results in less attenuation.
Q: How do you solve after sale service?
A: After the receipt of goods, if you are not satisfied or having any other problems, please contact us as soon as possible, we will give you a quick and reasonable solution.
