Specifications
Brand Name :
wellmark
Model Number :
WM-500A/350A
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1 set per 15 working days
Delivery Time :
one week
Packaging Details :
wooden case
Name :
semi automatic rigid box making machine
Product type :
Paper Box Making Machine
Type :
Rigid paper Box machine
After-sales service provided :
Video technical support,Online support
Voltage :
220V/50HZ
Warranty :
1 Year
Description

Gift Box / Cell Phone Box Forming Machine

Automatic Rigid Box Forming Machine catalog.pdf

Product Description

WM-500A/350A Automatic Fast Change Moulds Machine is our company's latest research and development of full automatic intelligence box molding machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.

This machine is our company's latest research and development of full automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc.

Product Features:

1. This machine adopts PLC and man-machine control, error auto stop and display;

2. It use air cylinder and double servo and stepper control;

3. All the parts adopt international high-end brands, low failure rate, high precision, fully automated process;

4. This machine no need change the pressure board,folding knife,just input the dimensions size of box;

5. The machine will adjust the size automatically,save the time of change the different size ,it automatically wrap box, fold corner edges and wrapping box;

6. It has small volume,easy to operate ,fast speed,change size more simple ect.

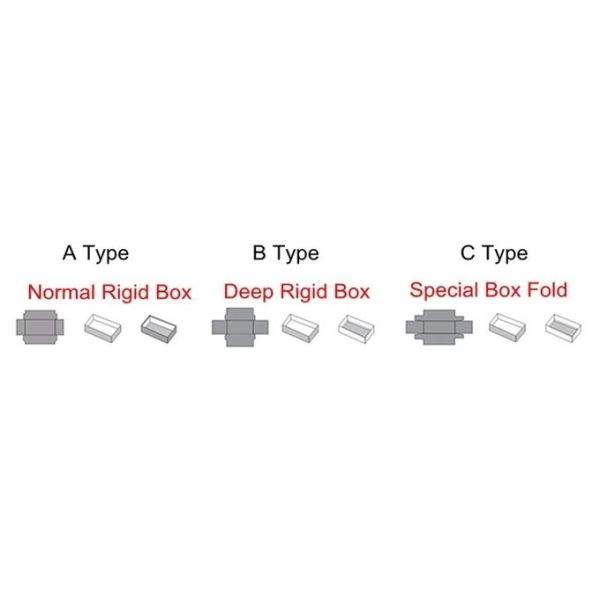

Suitable box types

This machine is automatic intelligence box forming machines.it’s specialized in mass producing all kinds of rigid boxes or plastic boxes, such as gift boxes, watch boxes, pencil boxes, candy boxes, souvenir boxes,finest jewelry boxes, ornaments boxes, and cosmetic boxes, etc.

Gift Box / Cell Phone Box Forming Machine

Technical Parameter

Model WM-500A WM-350A
Longest(L) 500mm 380mm
Shortest(L) 80mm 45mm
Widest(W) 400mm 350mm
Narrowest(W) 60mm 40mm
Highest(H) 120mm 90mm
Shortest(H) 12mm 12mm
Folding Edges Inside Length 10-80mm 10-70mm
Folding Ear Length 10-100mm 10-70mm
Thickness of Paperboard(T) 1.0mm-4.0mm 1.0mm-4.0mm
Thickness of Paper(g/㎡) 80g/㎡-300g/㎡ 80g/㎡-300g/㎡
Speed ≤20/pcs/min ≤20pcs/min
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Voltage 220V/50Hz 220V/50Hz
Power 1.5kw 1.5kw
Weight 1100kgs 950kgs
Machine Size L1200*W1500*H2200mm L1100*W1400*H2000mm

Work Shop Image

Gift Box / Cell Phone Box Forming Machine

Frequently Asked Questions

Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood box. Suitable for exporting.
Q2. What is your terms of payment?
A: T/T 100% before delivery. We'll show you the photos and video of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to my requests?
A: Yes, we can produce accordint to your requests. We can design and develop the machine.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
